| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | OSPS30200CW-2 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Barrier Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum DC Blocking Voltage: | 200V |
| Maximum Average Forward Rectified Current Total Device: | 20A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 150A |
| High Light: | schottky barrier rectifier,fast schottky diode |
||

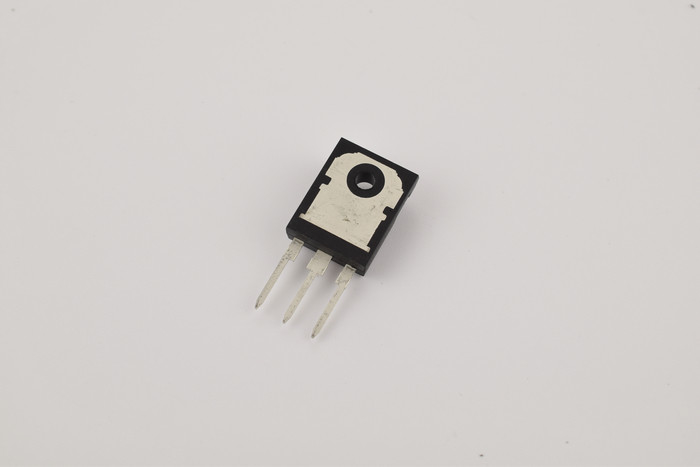

Good Capability Schottky Barrier Diode For DC - DC Converters 150A
Schottky Barrier Diode Features
. For surface mounted applications
. Metal silicon junction,majority carrier conduction
. Low power loss,high efficiency
. Built-in strain relief,ideal for automated placement
. High forward surge current capability
. High temperature soldering guaranteed:250℃/10 seconds at terminals
. The plastic material carries U/L recognition 94V-O
Schottky Barrier Diode Applications
High frequency rectifier of switching mode power supplies
Freewheeling diodes
Polarity protection application
DC-DC converters
| Type: | Schottky Barrier Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum DC Blocking Voltage: | 200V |
| Maximum Average Forward Rectified Current Total Device: | 20A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 150A |
About US
Shenzhen Canyi Electronics Technology Co., Ltd. is committed to the promotion and distribution of well-known electronic components, and its products cover network communication, industrial control, automotive electronics, security monitoring and consumer electronics. In 2013, Canyi Technology officially represented Delcheng Technology (DEC) products, and in 2015 officially became the general agent of overseas sales. On this basis, after years of hard work, it has been officially represented and distributors of many electronic component manufacturers at home and abroad such as Changdian, Xinghai, Tuofeng, Leshan, Roma and Anshi. We have a strong sales and service team to provide customers with full-process technical services from selection to mass production, based on more than 1000 square meters of logistics and warehousing, through standardized logistics operation mode, advanced testing equipment, and strict products inspection. Providing customers with flexible, safe and efficient logistics services.
Absolute Maximum Ratings (Tc=25°C)
