| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | MBRF1045 MBR1045 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 5-7 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Barrier Diode | Advantage: | High Reliability |
|---|---|---|---|
| VRRM: | 60V | IF: | 10A |
| Package: | TO-220AC | Operation Temp. Range: | -65~150 |
| IFSM: | 150A | IR: | 0.1mA |
| Power Dissipation: | 2.0mW | RθJA: | 60°C/W |
| High Light: | fast schottky diode,power schottky diode |
||

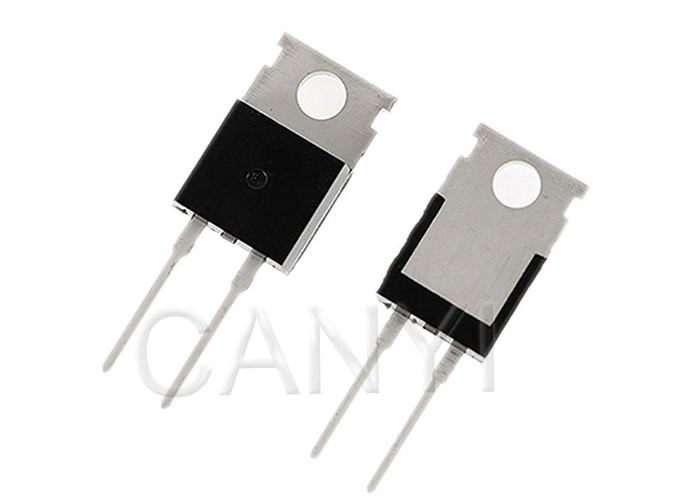

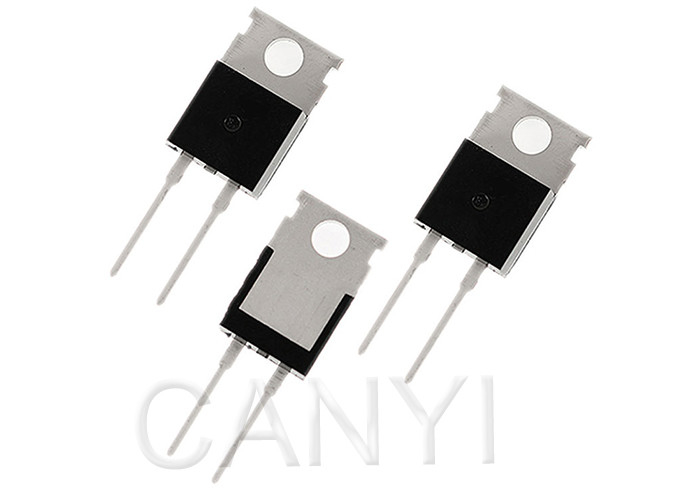

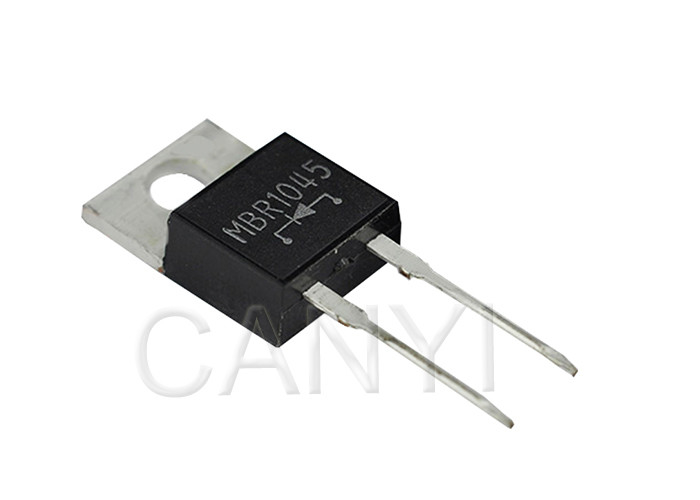

MBR1035 to MBR1060 Schottky Rectifier Diode TO-220AC Schottky barrier Diode 10A 35V high current schottky diode
Schottky diode features
Schottky Rectifier Diode applications:
| Parameter | Symbol | MBR1035 | MBR1045 | MBR1050 | MBR1060 | Unit |
| Maximum repetitive peak reverse voltage | VRRM | 35 | 45 | 50 | 60 | V |
| Maximum average forward rectified current (fig. 1) | IF(AV) | 10 | A | |||
| Peak forward surge current 8.3 ms single half sine-wave | IFSM | 150 | A | |||
| Storage temperature range | Tstg | -65~+175 | ℃ | |||
|
Operating junction temperature
|
TJ, | -65~+150 | ℃ | |||
THERMAL CHARACTERISTICS
| Parameter | Symbol | Value | Unit |
| Power dissipation | PD | 2.0 | mW |
|
Thermal resistance, junction to ambient |
RθJA (1) | 60 | ℃/W |
| Thermal resistance, junction to lead | RθJL(1) | 2.0 | ℃/W |

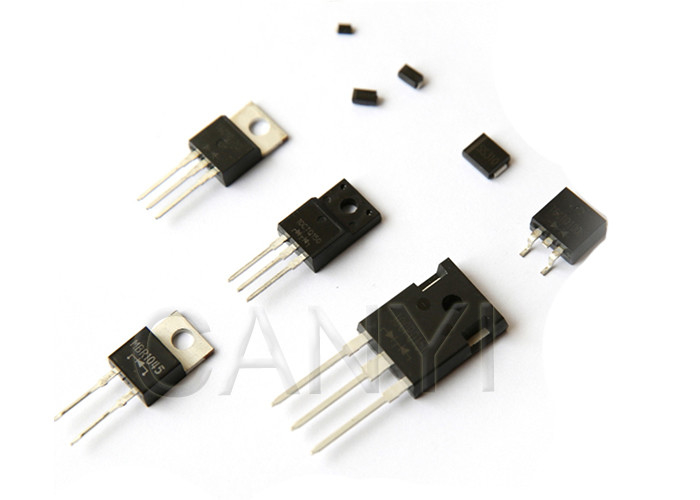

our product List:
Shenzhen Canyi Electronics Technology Co., Ltd. was established in 2000. After more than ten years of development, it has become a professional agent of well-known electronic component brands at home and abroad.
Good service: We not only provide you good quality products but also excellent service. We are easy-going and willing do our best to meet customer’s demands. You can tell me your idea and we can help to improve the quality and reduce you cost in order to expand you business. You can contact with us at any time. We will give you a feedback within 24hrs.
