| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | RB461F |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Case: | Molded Plastic | Application: | Low Power Rectification |
|---|---|---|---|

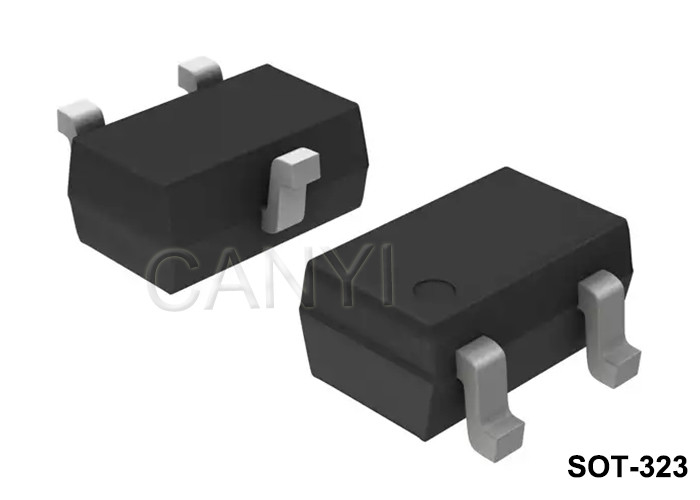

| Package: | SOT-323 | Package Type: | Smd Diode |
| Reverse Voltage: | 20V | Material: | Silicon |
| High Light: | fast schottky diode,power schottky diode |
||

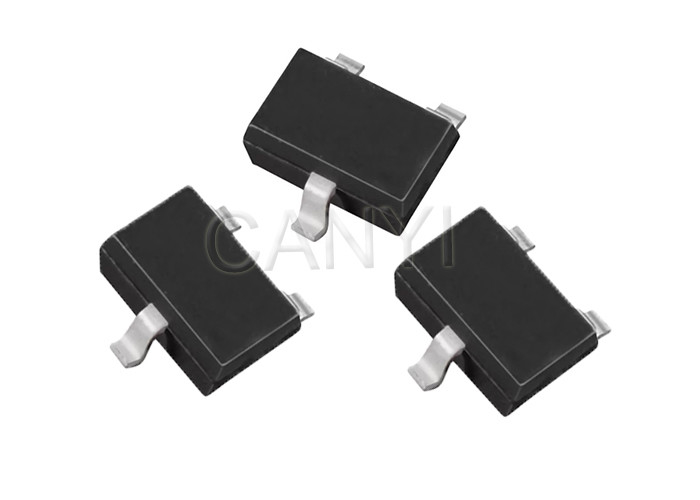

3B silicon carbide schottky diode 3A schottky barrier diode for low power rectification
construction of silicon carbide schottky diode is silicon epitaxial planer
Schottky barrier diode features:
Schottky barrier diode application:
schottky barrier diode Dimension:
Absolute maximum ratings(TA=25℃ )
| Parameter | symbol | limits | unit |
| Reverse voltage(repetitive) | VRM | 25 | V |
| Reverse voltage(DC) | VR | 20 | V |
| Average rectified forward | IO | 0.7 | A |
| Forward current surge peak(60Hz·`1cyc) | IFSM | 3 | A |
| Junction temperature | Tj | 125 | ℃ |
| Storage temperature | Tstg | -40~+125 | ℃ |
Electrical characteristics (Ta=25℃)
| Parameter | symbol | Min. | Typ. | Max. | unit | conditions |
| Forward voltage | VF | - | - | 0.49 | V | IF=700mA |
| Reverse current | IR | - | - | 200 | μA | VR=20V |
Packing details.
| Schottky Barrier Diode | 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L...... |
| High Current Rectifier Diode | 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10...... |
| Fast Recovery Diode | FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307...... |
| High Efficiency Diode | HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508...... |
| Fast Switching Diode | 1N4148, 1N4148-T4, LL4148...... |
| Schottky Bridge Rectifier | MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307...... |
| Ultra Fast Recovery Rectifier Diode | UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28...... |
Our Strict Quality Control:
1. Our quality controller has working in our factory for more than 10 years, very expericed.
2. We will test the each product, each accessory before shipping, to make sure its high quality.
3. We will pack the cargo well to make sure the goods in good status during delivery.
