| Application: | High Frequency Switch Mode Power Supplies | Package: | TO-220AB/TO-220FPAB/IPAK/DPAK |
|---|---|---|---|
| IF(AV): | 2*10A | VRRM: | 150V |
| Tj (max): | 175°C | VF (typ): | 0.69V |
| High Light: | power schottky diode,schottky barrier rectifier |
||

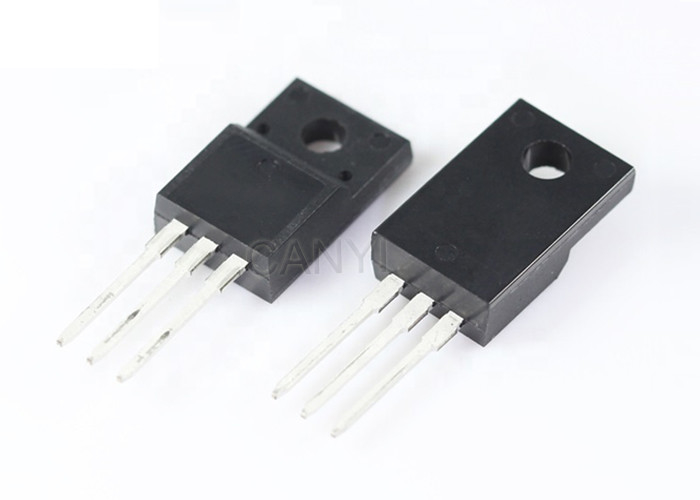

high voltage power schottky rectifier SBD 20A 150V TO-220AB single diode rectifier for switch supplies
high current schottky diode features:
power schottky diode application:Dual center tap Schottky rectifier designed for high frequency switch mode power
schottky barrier diode Dimension:
| Parameter | Symbol | Value | Unit | |||
| VRRM |
Repetitive peak reverse voltage |
150 | V | |||
| IF(RMS) | Forward rms current | 30 | A | |||
| IF(AV) |
Average forward current δ = 0.5, square wave |
TO-220AB, D2PAK, I2PAK
|
TC = 155 °C
|
Per diode
|
10 | A |
|
TO-220FPAB
|
TC = 135 °C
|
Per diode | ||||
|
All types
|
Per device
|
20 | ||||
| IFSM | Surge non repetitive forward current | tp = 10 ms sinusoidal | 180 | A | ||
|
PARM
|
Repetitive peak avalanche power |
tp = 10 µs, Tj= 125 °C
|
480 | W | ||
| Tstg | Storage temperature range | -65 to~+175 | ℃ | |||
| TJ, |
Maximum operating junction temperature (1)
|
+175 | ℃ | |||
1.(dPtot/dTj ) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
