| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | SR320 Thru SR3200 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Case: | Molded Plastic | Brand: | CANYI |
|---|---|---|---|
| Application: | Printed Circuit Board | Package / Case: | DO-201AD |
| Package Type: | Through Hole | Working Temperature: | -55°C ~ 150°C |
| High Light: | fast schottky diode,power schottky diode |
||

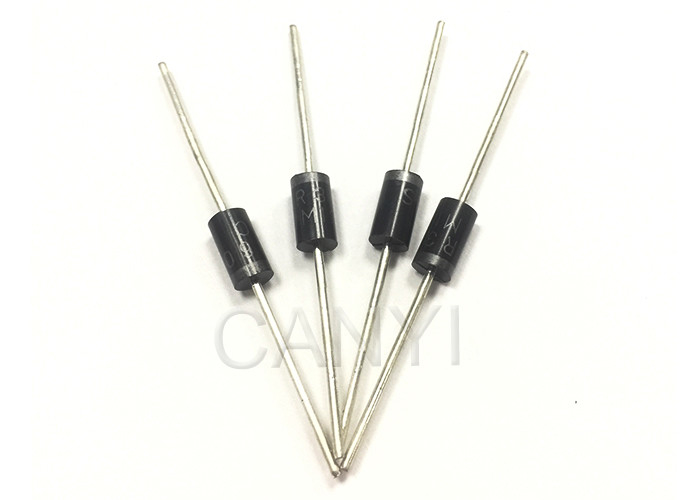

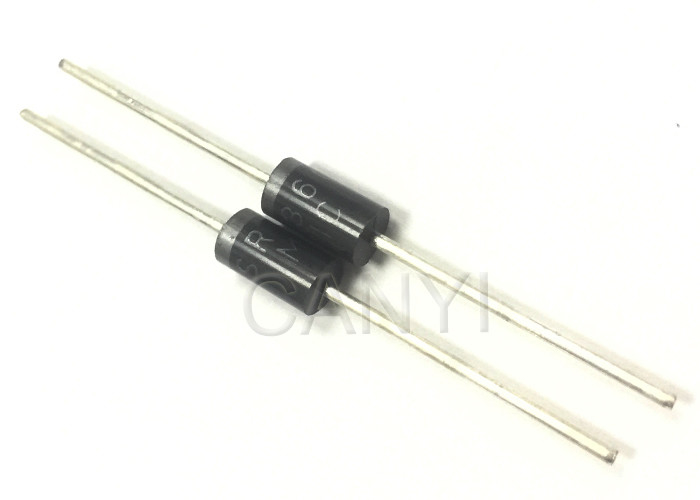

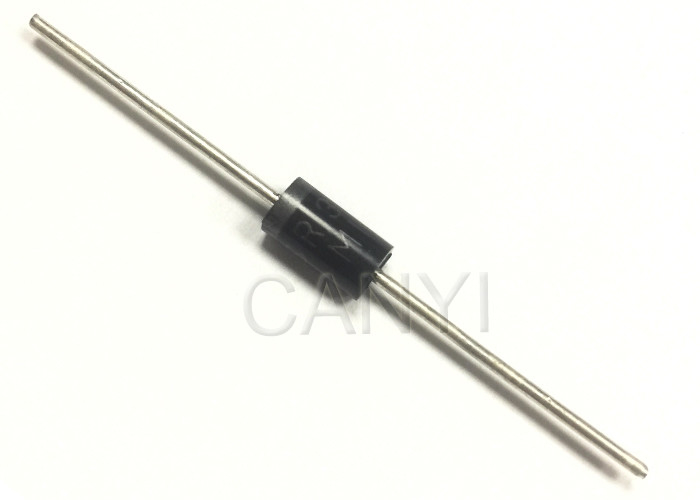

SR320 Thru SR3200 DO-201AD molded plastic 3A 200V schottky diode rectifier Low switching loss schottky barrier diode
schottky barrier diode Features:
schottky barrier diode mechanical data:
Shenzhen Canyi Electronics Technology Co., Ltd. was established in 2000. After more than ten years of development, it has become a professional agent of well-known electronic component brands at home and abroad.
Our Strict Quality Control:
1. Our quality controller has working in our factory for more than 10 years, very expericed.
2. We will test the each product, each accessory before shipping, to make sure its high quality.
3. We will pack the cargo well to make sure the goods in good status during delivery.
schottky barrier diode Dimension:Lead Frame Axial DO-201AD diode
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ℃ambient temperature unless otherwise specified.
resistive or inductive load.
MAXIMUM RATINGS (@ TA=25 ℃ unless otherwise noted)
| Parameter | Symbol | SR320 | SR330 | SR340 | SR350 | SR360 | SR380 | SR3100 | SR3150 | SR3200 | Units |
| Maximum Recurrent Peak Reverse Voltage |
VRRM
|
20 | 30 | 40 | 50 | 60 | 80 | 100 | 160 | 200 | V |
| Maximum RMS Voltage |
VRMS
|
12 | 21 | 28 | 35 | 42 | 56 | 70 | 105 | 140 | V |
| Maximum DC Blocking Voltage |
VDC
|
20 | 30 | 40 | 50 | 60 | 80 | 100 | 160 | 200 | V |
| Maximum Average Forward Rectified Current at Derating Lead Temperature |
IO
|
3.0 | A | ||||||||
| Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) | IFSM | 80 | A | ||||||||
| Typical Current Squared Time | I2T | 26.5 | A2S | ||||||||
|
Typical Thermal Resistance (Note 1)
|
R θ J A
|
40 | ℃/W | ||||||||
|
R θ J L
|
10 | PF | |||||||||
| Typical Junction Capacitance (Note 3) |
CJ
|
200 | |||||||||
| Operating Temperature Range |
TJ
|
150 | ℃ | ||||||||
| Storage Temperature Range |
TSTG
|
-55~+150 | ℃ | ||||||||
Packing details.
We are professional Electronic Components at competitive price,located in Shenzhen City,China.
Should you have any inquires or comments,we would be glad to talk in details through skype/email/Wechat/WhatsApp or any way you like.
