| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | PG4001~PG4007 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole DO-41 |
|---|---|---|---|
| Max. Forward Voltage: | 1.1V | Max. Forward Current: | 1A |
| IFSM: | 30A | T C Ypical Junction Capacitance: | 15pF |
| High Light: | power schottky diode,schottky barrier rectifier |
||

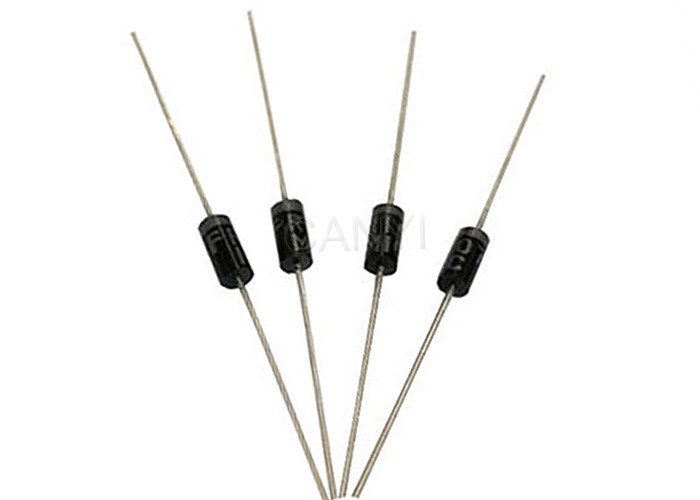

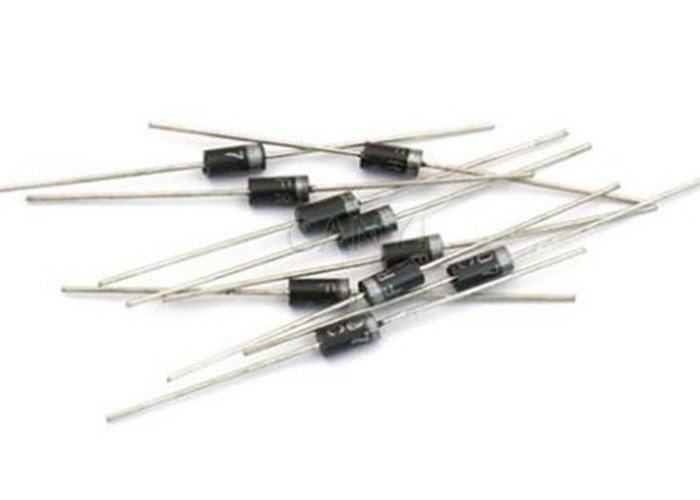

1A 1KV DO-41-2P Glass passivated Junction schottky barrier diode 400v 1n4007 diode
Glass passivated Junction Low barrier schottky diode with higher reliability, the glass layer and the chip are fused together and cannot be separated mechanically. At normal temperature, the leakage current is smaller than the protective glue process.This PG4001~PG4007 have feature as follow:
Silicon carbide schottky diode mechanical data:
| Parameter | Symbol | PG4001 | PG4002 | PG4003 | PG4004 | PG4005 | PG4006 | PG4007 | Unit |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum Average Forward Current .375"(9.5mm) lead length at TA=75 OC
|
IF(AV) | 1.0 | A | ||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||
| Maximum Forward Voltage at I F = 1.0 A. | VF | 1.1 | V | ||||||
| Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C | IR | 1.0 |
μA
|
||||||
| IR(H) | 50 | ||||||||
| Typical Junction Capacitance (1) | CJ | 15 | pF | ||||||
| Typical Thermal Resistance |
R θ J A
|
50 | ℃/W | ||||||
|
Operating and Storage Temperature Range
|
TJ ,Tstg | -55~+150 | ℃ | ||||||
Shenzhen Canyi Technology Co., Ltd.was established in 2000. After more than ten years of development,it has become a professional agent of well-known electronic component brands at home and abroad.
Q: When can I get the price?
A: We will reply you ASAP. We will quote for you within 12 hours after we get your inquiry.
Q: How many kinds of products in your factory ?
A: We have a large range of products, such as Schottky Signal Diode, Schottky Barrier Diode, High Current Rectifier Diode, Fast Recovery Diode, Fast Switching Diode, Surface Mount Zener Diode,MOSFET and etc. Looking forward to your email.
Q:Can you customize it DIY?
A: We can help you design exclusive products according to your requirements. We have the entire service flow from product R&D design, manufacturing process to finished product packaging, welcome to sample custom.
Q: How long can I expect to get the sample?
A: It will be ready for delivery in 1 weeks, depends on the feature of your sample. The samples will be sent to you by express.
