| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | SK32-SK310 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Case: | Low Profile Molded Plastic | Package: | SMC |
|---|---|---|---|
| Weight: | 0.21g | IFSM: | 100A |
| Forward Voltage: | 0.55-0.85V | Operating Temperature Range: | -65 To +125°C |
| Storage Temperature Range: | -65 To +150°C | ||
| High Light: | fast schottky diode,power schottky diode |
||

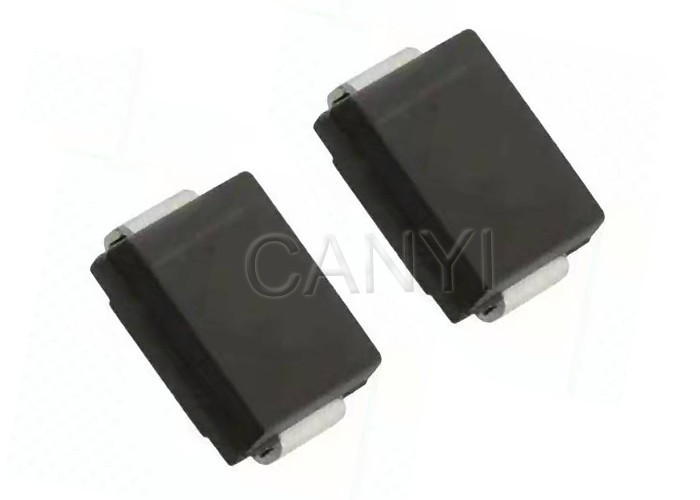

High Current schottky diode 400v 3A surface mount schottky barrier diode
Model No.: SK32 SK33 SK34 SK35 SK36 SK38 SK39 SK310
surface mount schottky barrier rectifier features:
schottky diode symbol mechanical data:
Mechanical Dimensions SMC:
Maximum ratings and Electrical characteristics @TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
| Parameter | Symbol | SK32 | SK33 | SK34 | SK35 | SK36 | SK38 | SK39 | SK310 | Unit | ||
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
20 | 30 | 40 | 50 | 60 | 80 | 890 | 100 | V | ||
| Maximum RMS voltage | VRMS | 14 | 21 | 28 | 35 | 42 | 56 | 64 | 71 | V | ||
| Average Rectified Output Current @TL= 75°C |
IO
|
3.0 | A | |||||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 100 | A | |||||||||
| Forward Voltage at I F = 3.0 A. | VF |
0.55
|
0.75 | 0.85 | V | |||||||
|
Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C |
IRM
|
0.5 | mA | |||||||||
| 20 | mA | |||||||||||
|
Typical Thermal Resistance Junction to Ambient (Note 1) |
R θ J A
|
55 |
°C/W
|
|||||||||
| Operating Temperature Range | TJ | -65~+125 | ℃ | |||||||||
| Storage Temperature Range | Tstg | -65~+150 | ℃ | |||||||||
Over 10 years work experience technical service team
We have a strong sales and service team to provide customers with full-process technical services from selection to mass production, based on more than 1000 square meters of logistics and warehousing, through standardized logistics operation mode, advanced testing equipment, and strict products inspection.
Mix order accepted and free sample
We accept mix orders for our customer with warehouse,samples for testing are welcome.
