| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | OSPS20200CW- |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Barrier Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum DC Blocking Voltage: | 200V |
| Maximum Average Forward Rectified Current Total Device: | 20A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 150A |
| High Light: | fast schottky diode,power schottky diode |
||

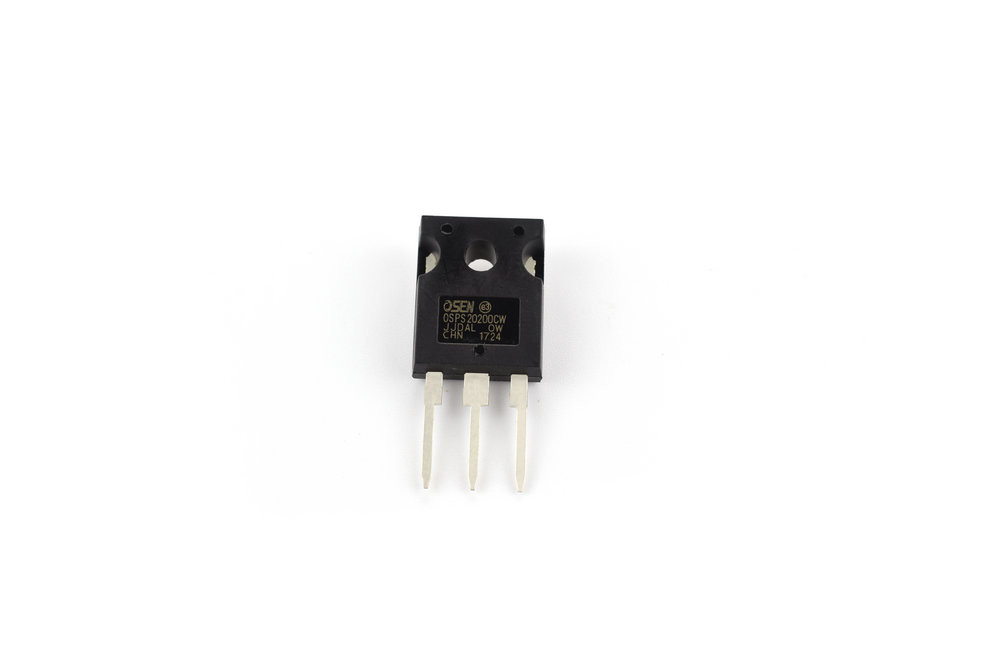

Fast Switching Schottky Barrier Diode For Switching Power Supply SMPS
Schottky Barrier Diode Introduction
Schottky Barrier Diode are named after their inventor, Dr. Schottky, short for Schottky Barrier Diode (abbreviated SBD). SBD is not fabricated by the principle of forming a PN junction by contacting a P-type semiconductor with an N-type semiconductor, but by a metal-semiconductor junction principle formed by metal-to-semiconductor contact. Therefore, SBD is also called a metal-semiconductor (contact) diode or a surface barrier diode, which is a hot carrier diode.
Schottky Barrier Diode Features:
High switching frequency
Low forward voltage drop
High efficiency and low power loss
High volume of current and good capability of surge current
Schottky Barrier Diode Applications
High frequency rectifier of switching mode power supplies
Freewheeling diodes
Polarity protection application
DC-DC converters
Absolute Maximum Ratings (Tc=25°C)
| Type: | Schottky Barrier Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum DC Blocking Voltage: | 200V |
| Maximum Average Forward Rectified Current Total Device: | 20A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 150A |
