| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | OSPS6060CW- |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Common Schottky Diode | Repetitive Peak Reverse Voltage: | 60V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 60V | Maximum DC Blocking Voltage: | 65V |
| Maximum Average Forward Rectified Current Total Device: | 60A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 400A |
| High Light: | fast schottky diode,power schottky diode |
||

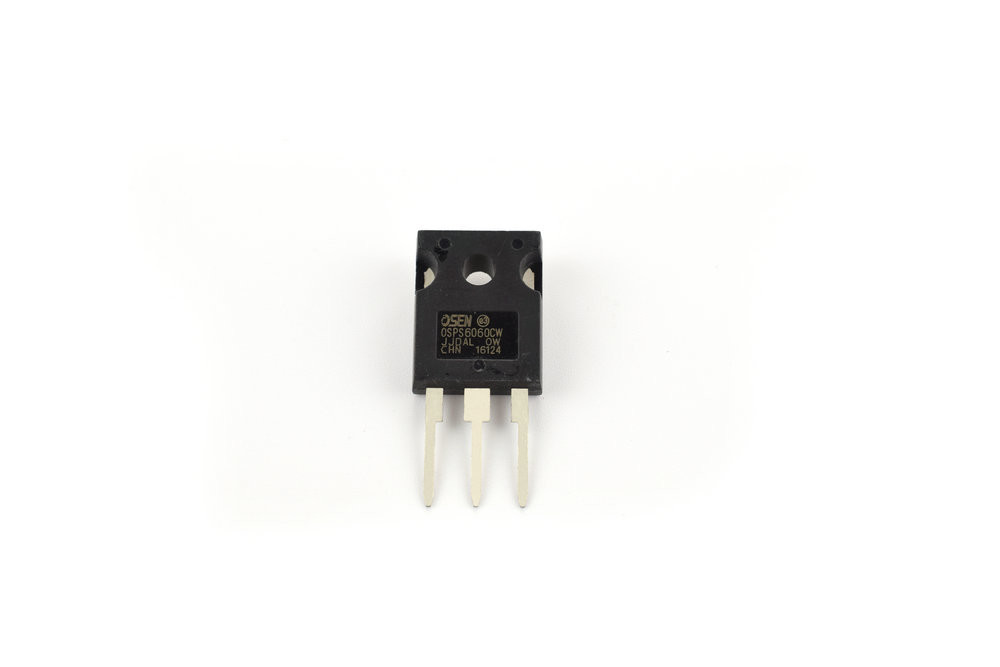

Signal Common Schottky Diode / Silicon Carbide Schottky Diode Bat85
Common Schottky Diode FEATURES
1). Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2). Metal silicon junction ,majority carrier conduction
3). Guard ring for overvoltage protection
4). Low power loss ,high efficiency
5). High current capability ,Low forward voltage drop
6). High surge capability
7). For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
8). High temperature soldering guaranteed:260 C/10 seconds at terminals
9). Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Common Schottky Diode Applications
High frequency rectifier of switching mode power supplies
Freewheeling diodes
Polarity protection application
DC-DC converters
Absolute Maximum Ratings (Tc=25°C)
| Type: | Common Schottky Diode | Repetitive Peak Reverse Voltage: | 60V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 60V | Maximum DC Blocking Voltage: | 65V |
| Maximum Average Forward Rectified Current Total Device: | 60A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 400A |
