| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | MBRF20200DT |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Low Voltage Schottky Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum Average Forward Rectified Current Total Device: | 20A |
| Peak Forward Surge Current: | 150A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Size: | Small Size |
| High Light: | schottky barrier rectifier,power schottky diode |
||

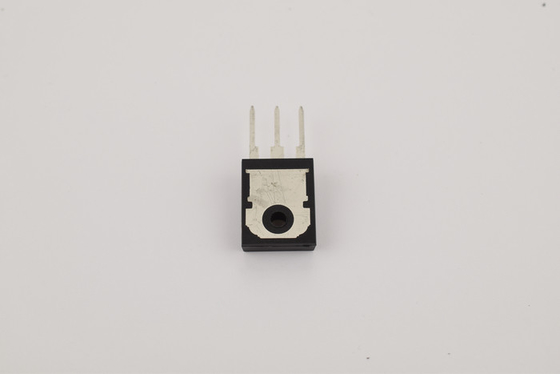

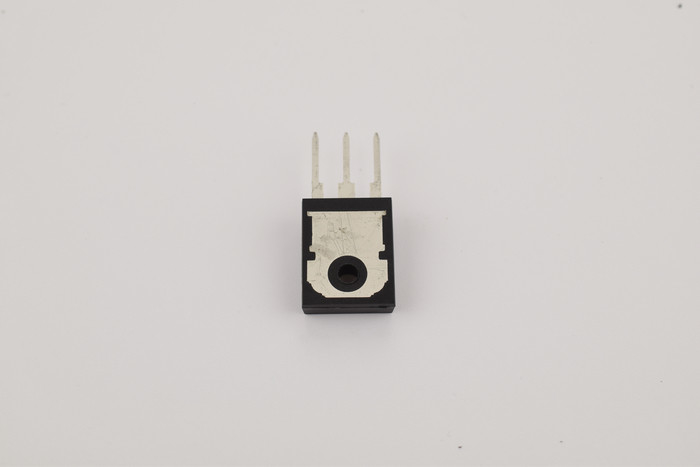

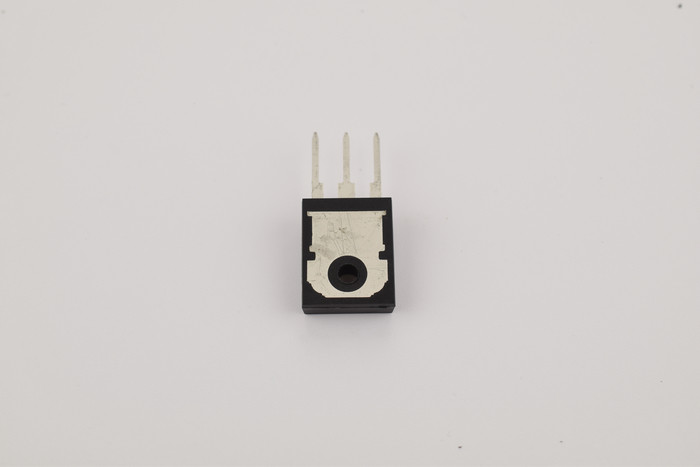

Small Low Voltage Schottky Diode , 200V Schottky Barrier Rectifier Diode
Low Voltage Schottky Diode Package
Low Voltage Schottky Diode are available in both leaded and surface mount (sMD) packages. Schottky diodes in leaded packages are commonly used as high frequency, high current rectifier diodes, freewheeling diodes or protection diodes. It is available in single-tube and pair-tube (dual-diode) packages. Schottky has three types of pinouts for the tube, which has a common cathode (the cathode of the two tubes is connected), a common anode (the anode of the two tubes is connected), and a series (the anode of one diode is connected to the cathode of the other diode).
Schottky diodes with surface mount are available in single-tube, double-tube and triple-tube versions, with A~19 pinouts.
Low Voltage Schottky Diode Features:
High switching frequency
Low forward voltage drop
High efficiency and low power loss
High volume of current and good capability of surge current
Low Voltage Schottky Diode Applications
Low Voltage Schottky Diode are used for signal-routing tasks, Metallurgically Bonded Construction , rail-to-rail protection and RF applications, such as balanced mixers and demodulators. Devices above 100 mA enter the converter application field with rectification tasks, or discrete OR-ing function.
Absolute Maximum Ratings (Tc=25°C)
| Type: | Low Voltage Schottky Diode | Repetitive Peak Reverse Voltage: | 200V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 200V | Maximum Average Forward Rectified Current Total Device: | 20A |
| Peak Forward Surge Current: | 150A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Size: | Small Size |
