| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | SR520 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 0.55V | Max. Reverse Voltage: | 20V |
| Max. Forward Current: | 5A | Max. Reverse Current: | 0.2 MA |
| Package: | DO-27 DO-201AD | Material: | Silicon |
| IFSM: | 150A | Weight: | 0.041ounce, 1.15 Grams |
| Working Temperature: | -65 - +150(℃) | Typical Junction Capacitance: | 500 PF |
| High Light: | schottky barrier rectifier,power schottky diode |
||

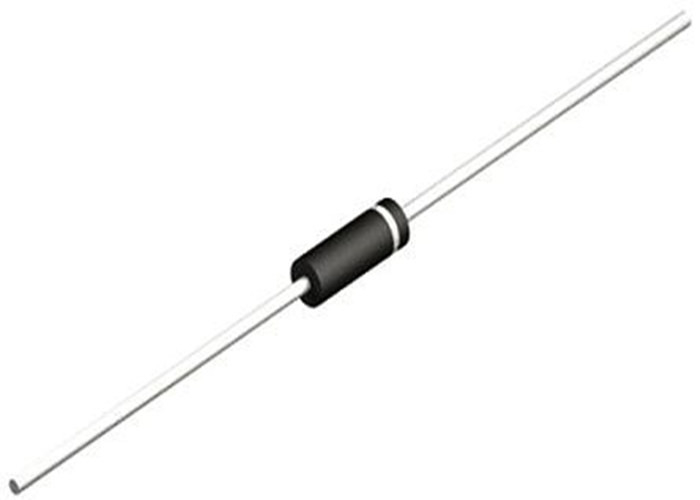

SR520 Schottky Diode Schottky Barrier Rectifier Diode DO-27 DO-201AD Package
FEATURES
1). Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2). Metal silicon junction ,majority carrier conduction
3). Guard ring for overvoltage protection
4). Low power loss ,high efficiency
5). High current capability ,Low forward voltage drop
6). High surge capability
7). For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
8). High temperature soldering guaranteed:260 C/10 seconds at terminals
9). Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
MECHANICAL DATA
Case: : DO-27 DO-201AD molded plastic body
Terminals: : Lead solderable per MIL-STD-750,method 2026
Polarity: color band denotes cathode end
Mounting Position: Any
Weight: : 0.041ounce, 1.15 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Full Product Range
Schottky Barrier Diode: 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L......
High Current Rectifier Diode: 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10......
Fast Recovery Diode: FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307......
High Efficiency Diode: HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508......
Fast Switching Diode: 1N4148, 1N4148-T4, LL4148......
Schottky Bridge Rectifier: MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307......
Ultra Fast Recovery Rectifier Diode: UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28......
