| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | STPS1150A |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Dimensions per Unit:19 × 6.3 × 24 Centimeter • Weight per Unit:100grams • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.42 × 0.33 × 0.24 Meters • Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Application: | Switch Mode Power Supplies | Package: | SMA/DO-41 |
|---|---|---|---|
| Package Type: | Smd Diode | Forward Voltage Drop: | 0.62-0.75v |
| IF(AV): | 1A | Tstg: | -65 To + 175°C |
| Highlight: | fast schottky diode,power schottky diode |
||

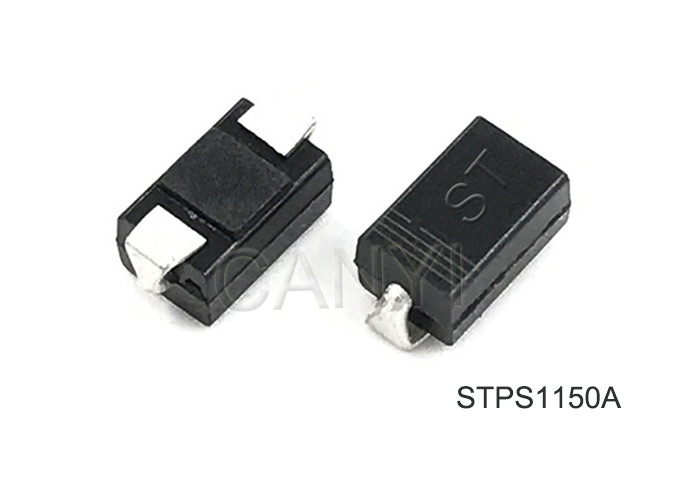

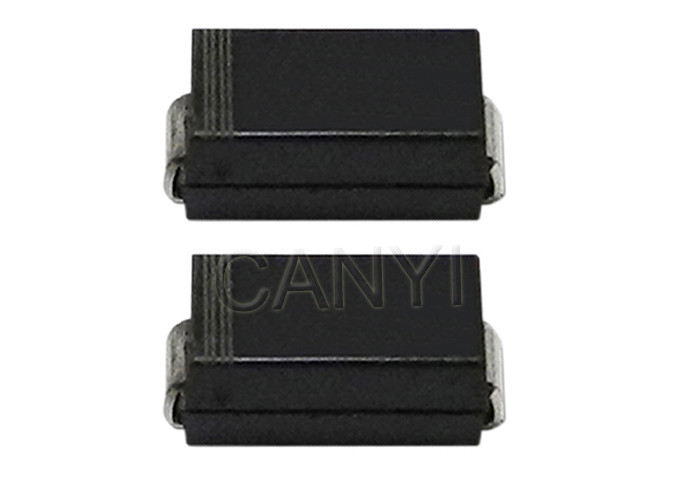

SMA power schottky diode 150V 1A schottky diode smd for switch mode power supplies
high voltage schottky diode features:
low barrier schottky diode application:
schottky barrier diode Dimension:
Absolute ratings (limiting values, at 25 °C, unless otherwise specified)
| Symbol |
Parameter
|
Value |
UnitUnit
|
||
|
VRRM
|
Repetitive peak reverse voltage
|
150 | V | ||
|
IF(RMS)
|
Forward rms current
|
15 | A | ||
|
IF(AV)
|
Average forward current δ = 0.5, square wave
|
SMA
|
TL = 150 °C
|
1 | A |
|
SMA Flat Notch
|
TL = 160 °C
|
||||
|
DO-41
|
TL = 150 °C
|
||||
|
IFSM
|
Surge non repetitive forward current
|
SMA
|
tp = 10 ms sinusoidal
|
50
|
A |
|
SMA Flat Notch
|
50
|
||||
|
DO-41
|
75 | ||||
|
PARM
|
Repetitive peak avalanche power
|
tp = 10 µs, Tj= 125 °C
|
108 | W | |
|
Tstg
|
Storage temperature range
|
-65 to + 175
|
°C
|
||
|
Tj
|
Maximum operating junction temperature (1)
|
+ 175 |
°C
|
||
1. (dPtot/dTj ) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
Static electrical characteristics
| Symbol |
Parameter
|
Test conditions
|
Typ
|
Max.
|
Unit
|
|
|
IR (1)
|
Reverse leakage current
|
Tj = 25 °C
|
VR = VRRM
|
0.2
|
1.0 |
µA
|
|
Tj =1 25 °C
|
0.2 | 1.0 |
mA
|
|||
|
VF (2)
|
Forward voltage drop
|
Tj = 25 °C
|
IF = 1 A
|
0.78 | 0.82 | V |
|
Tj = 125 °C
|
0.62 | 0.67 | ||||
|
Tj = 25 °C
|
IF = 2 A
|
0.85 | 0.89 | |||
|
Tj = 125 °C
|
0.69 | 0.75 | ||||
1. Pulse test: tp = 5 ms, δ < 2%
2. Pulse test: tp = 380 µs, δ < 2%
To evaluate the conduction losses use the following equation: P = 0.59 x IF(AV) + 0.08 IF2 (RMS)

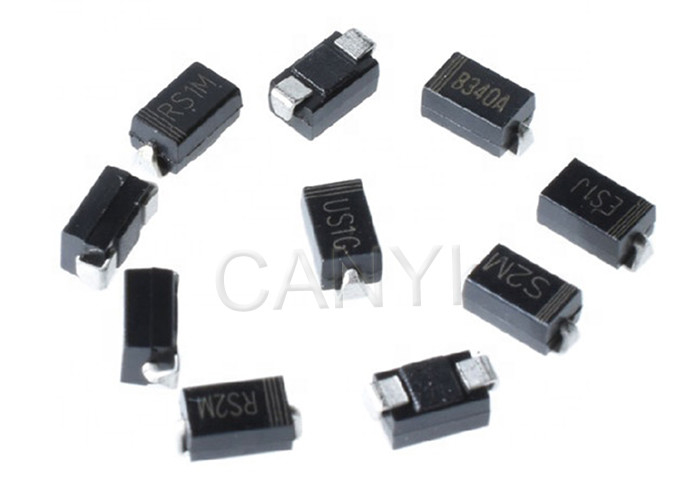

| Schottky Barrier Diode | 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L...... |
| High Current Rectifier Diode | 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10...... |
| Fast Recovery Diode | FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307...... |
| High Efficiency Diode | HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508...... |
| Fast Switching Diode | 1N4148, 1N4148-T4, LL4148...... |
| Schottky Bridge Rectifier | MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307...... |
| Ultra Fast Recovery Rectifier Diode | UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28...... |
Our Strict Quality Control:
1. Our quality controller has working in our factory for more than 10 years, very expericed.
2. We will test the each product, each accessory before shipping, to make sure its high quality.
3. We will pack the cargo well to make sure the goods in good status during delivery.
