| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | PANJIT |
| Certification: | RoHS |
| Model Number: | UF100 THRU UF1010 |
| Minimum Order Quantity: | 1000 pcs |
| Price: | usd 0.05/pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Ultra Fast Switching Rectifier | Package Type: | Through Hole |
|---|---|---|---|
| Package: | Molded Plastic, DO-41 | IFSM: | 30A |
| Reverse Recovery Time: | 50ns;75ns | Operating And Storage Temperature Range: | -55 TO +150 ℃ |
| High Light: | 75nS High Voltage Rectifier Diodes,DO-41-2P High Voltage Rectifier Diodes,30A IFSM Through Hole Rectifier Diodes |
||

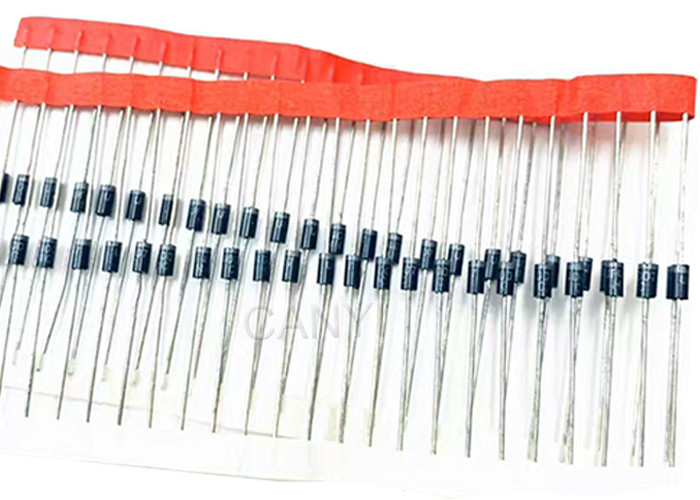

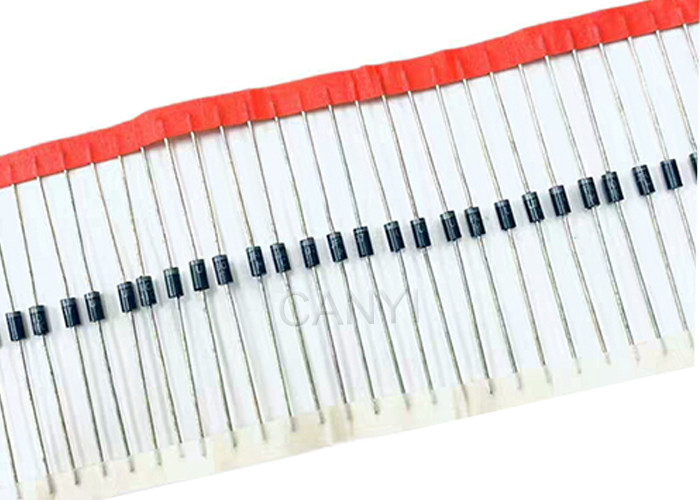

1A 1000V 75nS high voltage rectifier diodes DO-41-2P ultra fast rectifier diodes
Silicon rectifier diodes features:
surface mount diode mechanical Data:
Ratings at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
| UF100 | UF101 | UF102 | UF104 | UF106 | UF108 | UF1010 | Unit | |
|
Peak Reverse Voltage, Pepetitive ; VRM
|
50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum RMS Voltage
|
35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
|
DC Blocking Voltage; VR
|
50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Average Forward Current, Io @TA=55℃ 3.8” lead length, 60Hz, resistive or inductive load
|
1.0 | A | ||||||
|
Peak Forward Surge Current IFM (surge) 8.3msec. single half sine-wave superimposed on rated load (JEDEC method)
|
30.0 | A | ||||||
|
Maximum Forward Voltage VF @1.0A, 25℃
|
1.00 | 1.10 | 1.70 | V | ||||
|
Maximum Reverse Current, @ Rated TJ=25 ℃ Reverse Voltage TJ=100 ℃
|
10.0 500 |
£g A £g A
|
||||||
|
Typical Junction capacitance (Note 1) CJ
|
17.0 |
PF
|
||||||
|
Typical Junction Resistance (Note 2) R £KJA
|
60.0 | ℃/W | ||||||
|
Reverse Recovery Time IF=.5A, IR=1A, Irr=.25A
|
50 | 75 | ns | |||||
|
Operating and Storage Temperature Range
|
-55 to +150
|
℃ |
||||||
