| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Vishay |
| Certification: | RoHS |
| Model Number: | SBYV26C |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |

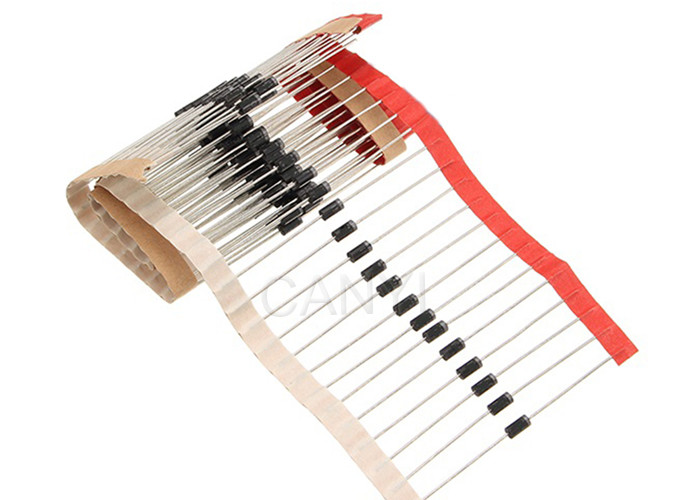

| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Ultrafast Plastic Rectifier | Package Type: | Through Hole |
|---|---|---|---|
| Package: | DO-204AL (DO-41) | Diode Variations: | Single Die |
| IF(AV): | 1.0A | VRRM: | 600V |
| IFSM: | 30A | Trr: | 30ns |
| High Light: | super fast recovery diode,ultra fast high voltage diode |
||

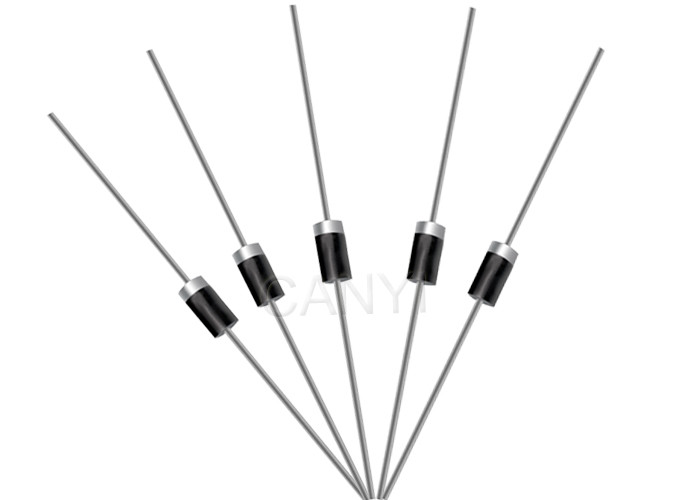

Glass Passivated Ultra fast Plastic rectifier diodes VIS 1A 1KV DO-41-2P 75nS power rectifier diode
Super fast recovery diode features:
High voltage rectifier diodes mechanical Data:
| Parameter | Symbol |
VALUE
|
Units |
| Maximum Recurrent Peak Reverse Voltage |
VRRM
|
600 | V |
| Maximum RMS Voltage |
VRMS
|
420 | V |
| Maximum DC Blocking Voltage |
VDC
|
600 | V |
|
Maximum average forward rectified current 0.375" (9.5 mm) lead length at TL = 85 °C (fig. 1) |
IF(AV)
|
1.0 | A |
|
Peak forward surge current 10 ms single half sine-wave superimposed on rated load |
IFSM | 30 | A |
|
Non repetitive peak reverse energy
|
ERSM (1)
|
5.0 | mJ |
|
Operating junction and storage temperature range
|
TJ,TSTG
|
-65 to +175
|
℃ |
Noter:(1)Peak reverse energy measured with 8/20 μs surge
Shenzhen Canyi Technology Co., Ltd. was established in 2000. After more than ten years of development, it has become a professional agent of well-known electronic component brands at home and abroad.
1. Efficient Servicer: Professional and Efficient services, Feedback in 24 hours. Full range products for choice.
2. QC Service: Great Quality Check, We know how to do good check quality. We have 19 years experience professional QC team.
3. Logistic Service: We would like to assist our customer to make QC + collect goods from other supplier.
4. Long-Term Service: We are looking for long-term business partner! So we supply excellent service and can design as your request.
Q: When can I get the price?
A: We will reply you ASAP. We will quote for you within 12 hours after we get your inquiry.
Q: How long can I expect to get the sample?
A: It will be ready for delivery in 1 weeks, depends on the feature of your sample. The samples will be sent to you by express.
