| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | ES1A-ES1D |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 3-5 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | SMD Ultra Fast Rectifier Diode | Package: | SMA (DO-214AC) |
|---|---|---|---|
| IF(AV): | 1.0A | VRRM: | 50V,100V，150V,200V |
| Trr: | 150ns | TJ Max.: | 150℃ |
| Diode Variations: | Single | Material: | Silicon |
| Sample: | Free | Port: | Shenzhen |
| High Light: | super fast recovery diode,ultra fast high voltage diode |
||

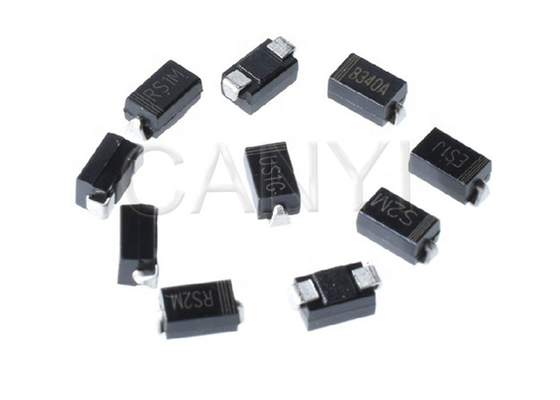

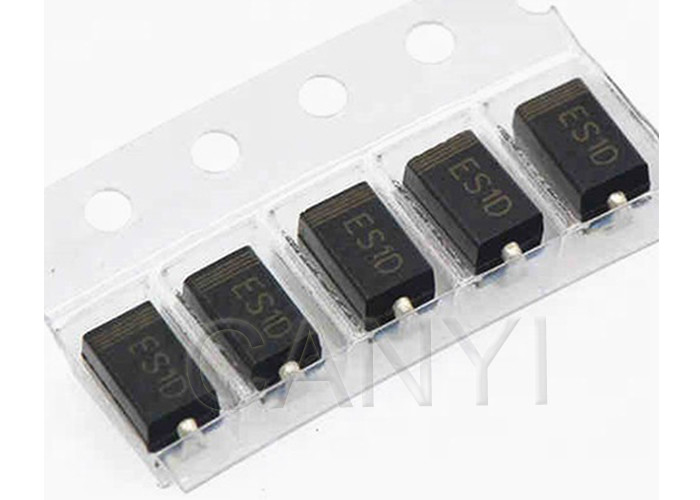

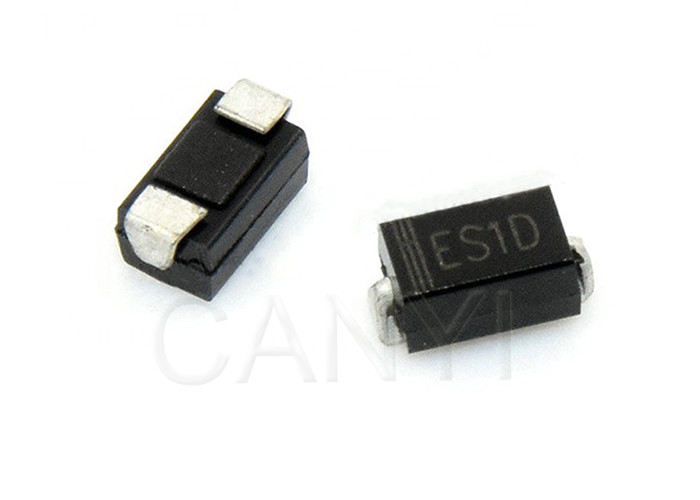

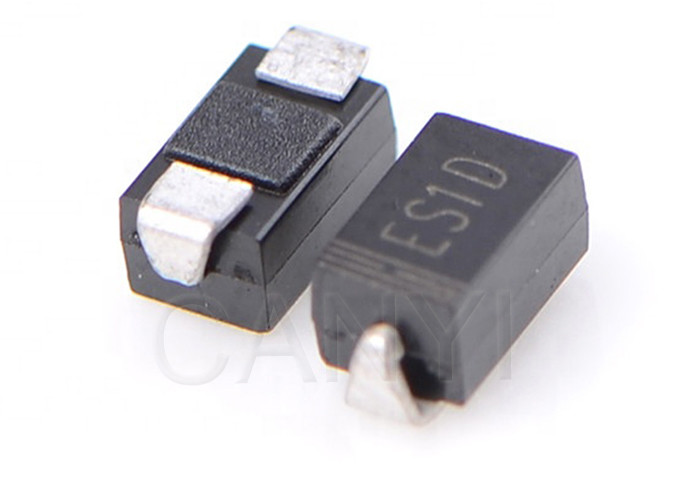

S1A-ES1D SMA Ultra Fast Rectifier Diode 1A power rectifier diode 200V Surface Mount fast recovery rectifier diode
Features:
Typical applications:
For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
| Parameter | Symbol | ES1A | ES1B | ES1C | ES1D | Unit |
| Device marking code | EA | EB | EC | ED | ||
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 150 | 200 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 105 | 140 | V |
| Maximum DC blocking voltage | VDC | 50 | 100 | 150 | 200 | V |
| Maximum average forward rectified current (fig. 1) | IF(AV) | 1.0 | A | |||
| Peak forward surge current 8.3 ms single half sine-wave | IFSM | 30 | A | |||
| superimposed on rated load | TJ, Tstg | -55~+150 | ℃ | |||
| Parameter | Test conditions | Symbol | Value | Unit | |
| Maximum instantaneous forward voltage | IF = 0.6 A | VF (1) | 0.865 | V | |
| IF = 1.0 A | VF | 0.920 | |||
| Maximum DC reverse current at rated DC blocking voltage | TA=25℃ | IR | 5.0 | μA | |
| TA=100℃ | 100 | ||||
| Maximum reverse recovery time | IF = 0.5 A, IR = 1.0 A, lrr = 0.25 A | trr | 15 | ns | |
| Maximum reverse recovery time | IF = 0.6 A, VR = 30 V, dI/dt = 50 A/μs,Irr = 10 % IRM
| TJ=25℃ | trr | 25 | ns |
| TJ=100℃ | 35 | ||||
| Maximum stored charge | IF = 0.6 A, VR = 30 V, dI/dt = 50 A/μs,Irr = 10 % IRM | TJ=25℃ | Qrr | 10 | nC |
| TJ=100℃ | 25 | ||||
| Typical junction capacitance | 4.0 V, 1 MHz | Cj | 10 | pF | |
Note
THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted)
| Parameter | Symbol | ES1A | ES1B | ES1C | ES1D | Unit |
| Typical thermal resistance | RθJA (1) | 85 | ℃/W | |||
| RθJL(1) | 35 | |||||
Note
(1) Units mounted on PCB 5.0 mm x 5.0 mm (0.013 mm thick) land areas.
