| Product Name: | Super Fast Diode | Type: | Super Fast Diode |
|---|---|---|---|
| Package Type: | Surface Mount | Package: | SMAF |
| Ifsm: | 30A | Trr: | 35ns |
| High Light: | ultra fast recovery diode,super fast recovery diode |
||

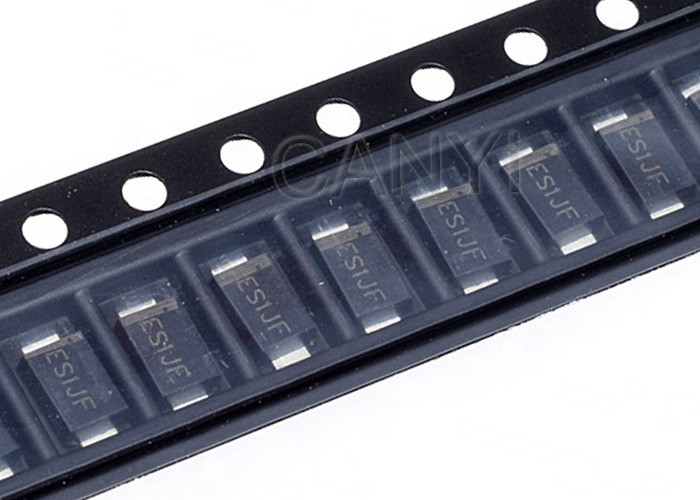

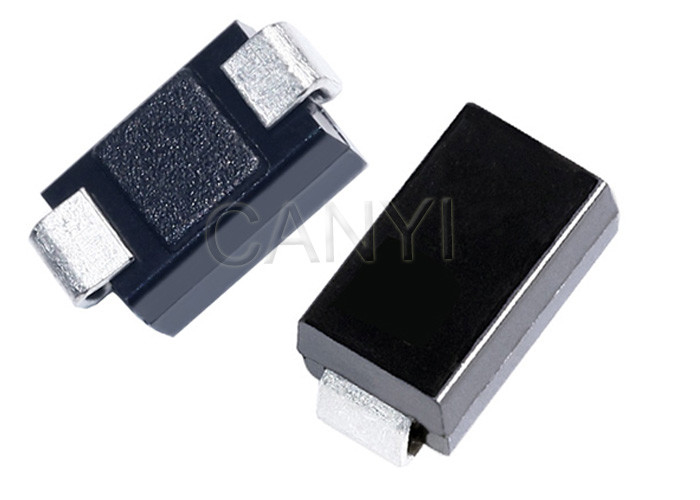

1A 35ns ultra fast rectifier diodes SMAF surface mount Ultra Fast recovery rectifier diode
Ultra fast high voltage diode features:
Ultra fast rectifier diodes mechanical data:
| Parameter | Symbol | ES1AF | ES1BF | ES1CF | ES1DF | ES1EF | ES1GF |
ES1JF
|
Unit | ||
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
50 | 100 | 150 | 200 | 300 | 400 | 600 | V | ||
| Maximum RMS voltage | VRMS | 35 | 70 | 105 | 140 | 210 | 280 | 420 | V | ||
| Average Rectified Output Current @TL= 120°C |
IO
|
1.0 | A | ||||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||||
| Forward Voltage at I F = 1.0 A. | VFM |
0.95 |
1.25 | 1.7 | V | ||||||
|
Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C |
IRM
|
5.0 | μA | ||||||||
| 500 | μA | ||||||||||
| Reverse Recovery Time (Note 1) | trr | 35 | nS | ||||||||
| Typical Junction Capacitance (Note 2) | Cj | 10 | pF | ||||||||
|
Typical Thermal Resistance Junction to Ambient (Note 1) |
R θ J A
|
35 |
°C/W
|
||||||||
| Operating and Storage Temperature Range | TJ,Tstg | -65~+150 | ℃ | ||||||||
Note:
1. Measured with IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC.
3. Mounted on P.C. Board with 8.0mm2 land area.
