| Name: | Power Jfet Transistor | Drain-Source Voltage: | 650V |
|---|---|---|---|
| Gate-Source Voltage-Continuous: | ±30V | Drain Current-Continuous（Note 2）: | 12A |
| Drain Current-Single Plused（Note 1）: | 48A | Power Dissipation （Note 2): | 50W |
| High Light: | mosfet power transistor,high power transistor |
||

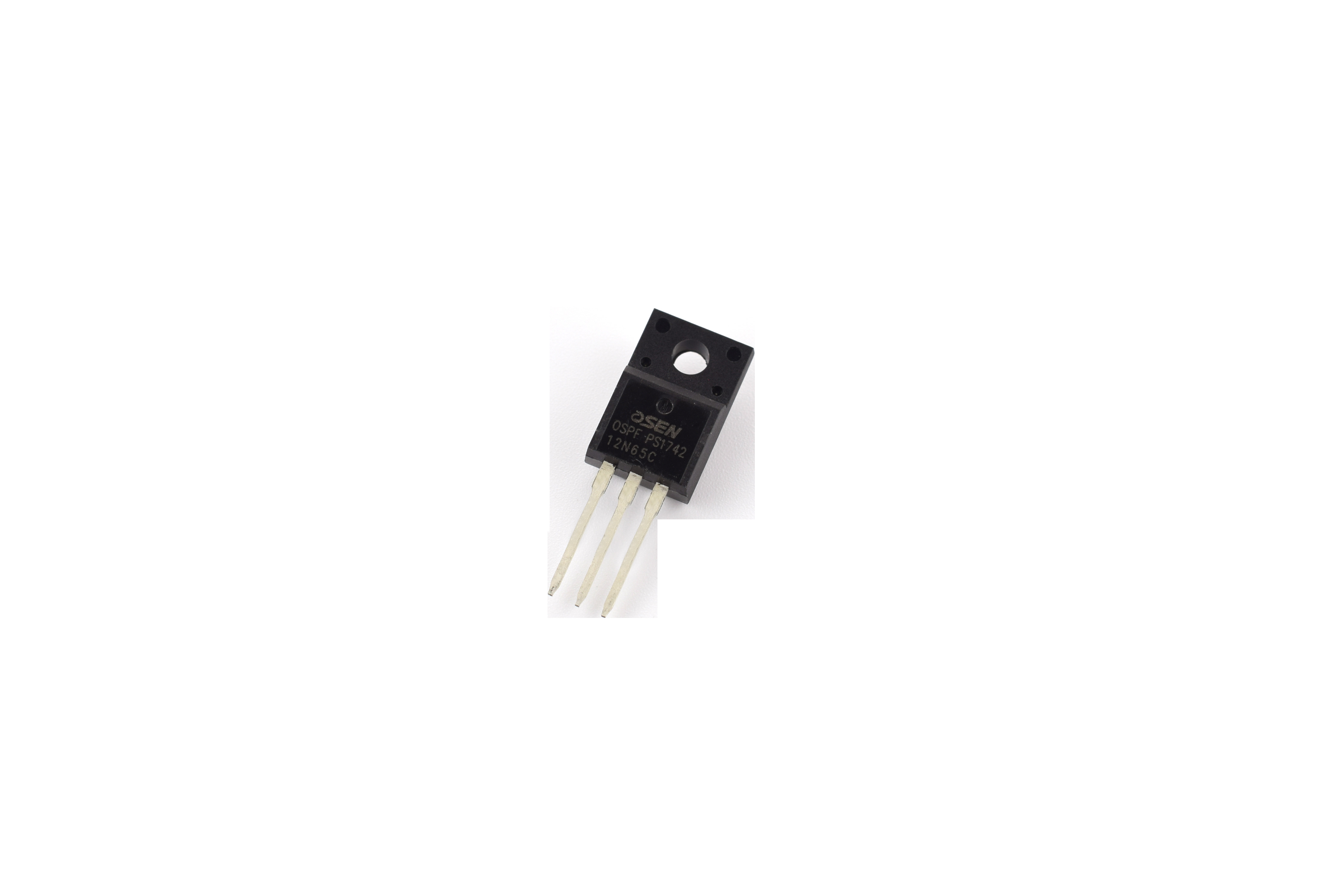

OEM High Power Jfet Transistor , Npn Transistor Amplifier 650V
Power Jfet Transistor Features
Power Jfet Transistor Applications
Absolute Maximum Ratings (Tc=25°C)
| Symbol | Parameters | Ratings | Unit |
| VDSS |
Drain-Source Voltage |
650 | V |
| VGS |
Gate-Source Voltage-Continuous |
±30 | V |
| ID |
Drain Current-Continuous(Note 2) |
12 | A |
| IDM |
Drain Current-Single Plused(Note 1) |
48 | A |
| PD |
Power Dissipation (Note 2) |
51 | W |
| Tj |
Max.Operating junction temperature |
150 | ℃ |
Electrical characteristics (Tc=25°C unless otherwise noted)
| Symbol | Parameters | Min | Typ | Max | Units | Conditions | ||
| Static Characteristics | ||||||||
| BVDSS |
Drain-Source Breakdown VoltageCurrent (Note 1) |
650 | -- | -- | V | ID=250µA,VGS=0V,TJ=25°C | ||
| VGS(th) |
Gate Threshold Voltage |
2.0 | -- | 4.0 | V | VDS=VGS,ID=250μA | ||
| RDS(on) |
Drain-Source On-Resistance |
-- | 0.65 | 0.68 | Ω | VGS=10V,ID=6A | ||
| IGSS |
Gate-Body Leakage Current |
-- | -- | ±100 | nA | VGS=±30V,VDS=0 | ||
| IDSS |
Zero Gate Voltage Drain Current |
-- | -- | 1 | μA | VDS=650V,VGS=0 | ||
| gfs |
Forward Transconductance |
3.6 | -- | -- | S | VDS=15V,ID=5A | ||
| Switching Characteristics | ||||||||
| Td(on) |
Turn-On Delay Time |
-- | 30 | 75 | ns |
VDS=325V,ID=12A, RG=25Ω(Note 2) |
||
| Tr |
Rise Time |
-- | 115 | 240 | ns | |||
| Td(off) |
Turn-Off Delay Time |
-- | 95 | 205 | ns | |||
| Tf |
Fall Time |
-- | 85 | 180 | ns | |||
| Qg |
Total Gate Charge |
-- | 42 | 55 | nC |
VDS=520,VGS=10V, ID=12A(Note 2)
|
||
| Qgs |
Gate-Source Charge |
-- | 8.5 | -- | nC | |||
| Qgd |
Gate-Drain Charge |
-- | 21.5 | -- | nC | |||
| Dynamic Characteristics | ||||||||
| Ciss |
Input Capacitance |
-- | 1460 | -- | pF |
VDS=25V,VGS=0, f=1MHz
|
||
| Coss |
Output Capacitance |
-- | 205 | -- | pF | |||
| Crss |
Reverse Transfer Capacitance |
-- | 24.8 | -- | pF | |||
| IS |
Continuous Drain-Source Diode Forward Current(Note 2) |
-- | -- | 12 | A | |||
| VSD |
Diode Forward On-Voltage |
-- | -- | 1.4 | V | IS=12A,VGS=0 | ||
| Rth(j-c) |
Thermal Resistance, Junction to Case |
-- | -- | 3.65 | ℃/W | |||
