| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | L7812CV |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Transistor | Package: | TO-220 |
|---|---|---|---|
| Package Type: | Throught Hole | Output Current: | 1A/1.5 A |
| High Light: | MC7812 Positive Voltage Regulator,KA7812 Positive Voltage Regulator,L7812CV Through Hole Voltage Regulator |
||

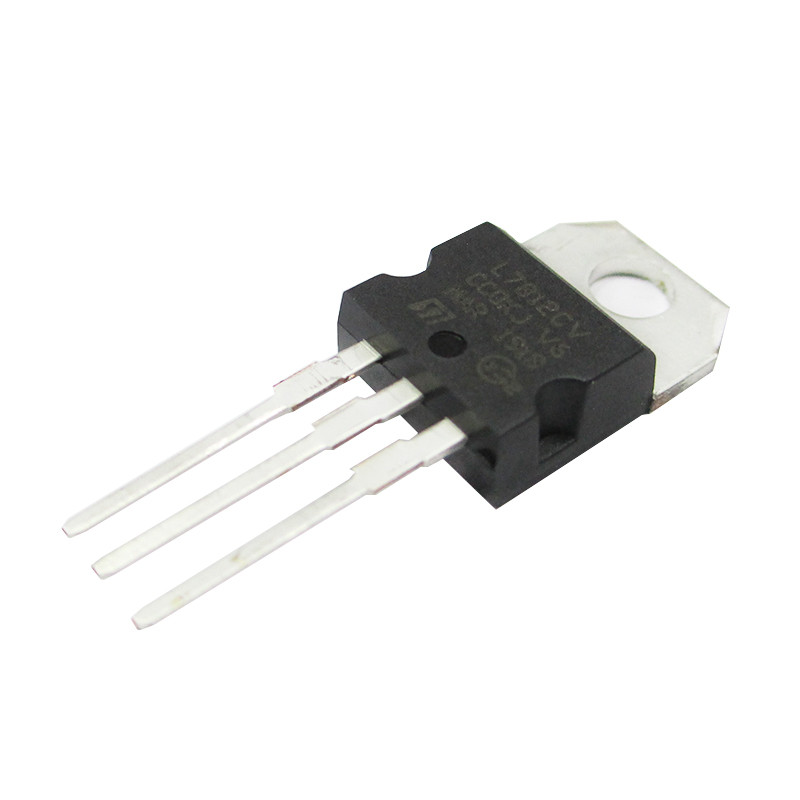

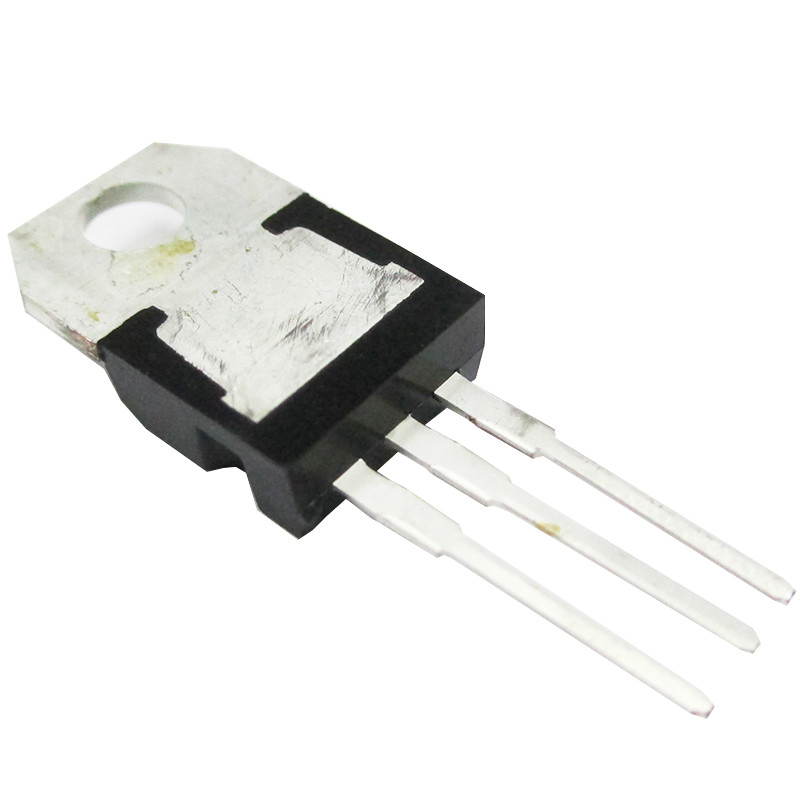

L7812CV L7812 KA7812 MC7812 Voltage Regulator 12V 1A/1.5A TO-220
Feature summary
Output current to 1.5A
Output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
Thermal overload protection
Short circuit protection
Output transition SOA protection
Description
The L7800 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.
These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
If adequate heat sinking is provided, they can deliver over 1A output current.
Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Choose Canyi to get more benefit:
Our fast delivery time can be in just one to two weeks for urgent demands. Providing customers with flexible, safe and efficient logistics services.For a electronic information base component supplier, contact us today.
