| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | SF51,SF52,SF53,SF54,SF55,SF56,SF58 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 1.7V | Max. Reverse Voltage: | 600V |
| Max. Forward Current: | 5.0A | Max. Reverse Current: | 5.0uA |
| Package: | DO-27 | ||
| Highlight: | ultra fast recovery diode,ultra fast high voltage diode |
||

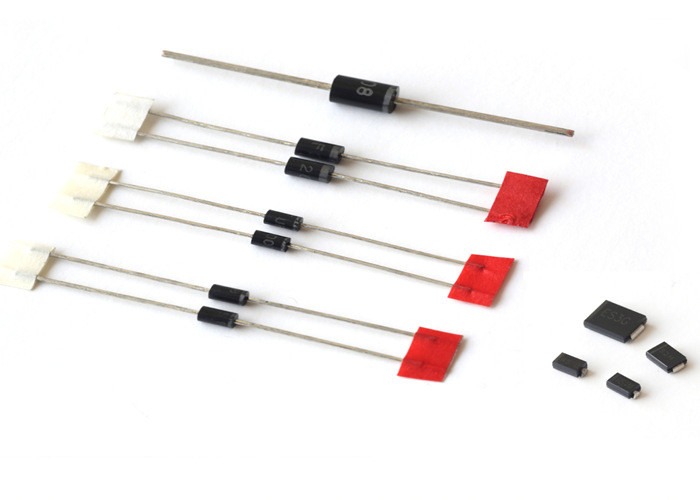

SF51 Thru SF58 Ultra Fast Recovery Rectifiers Diode With DO-27 Package Free Samples
Features:
* Low forward voltage drop
* High current capablity
* High reliability
* High surge current capability
* Good for switching mode application
Mechanical Data
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
