| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | GBU4A~GBU4M |
| Minimum Order Quantity: | 500PCS |
| Price: | usd 0.3/pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Package: | GBU | Average Rectified Output Current: | 0.8A |
|---|---|---|---|
| IF(AV): | 4.0A | IFSM: | 150A |
| Tj, TSTG: | -55 To +150℃ | Diode Variations: | In-line |
| High Light: | schottky diode bridge rectifier,mini patch rectifier bridge |
||

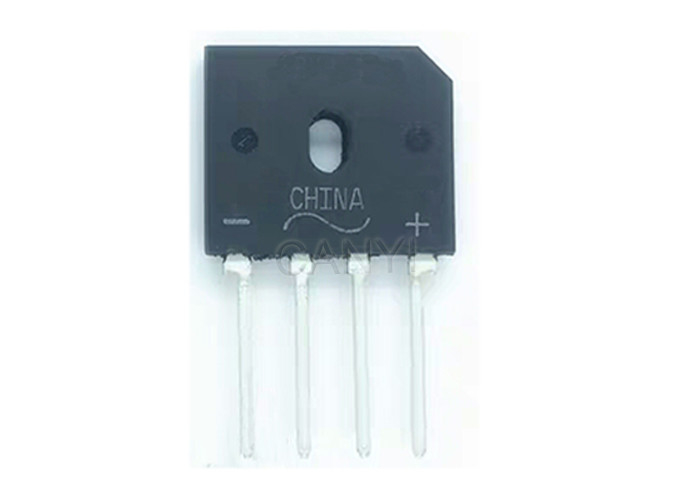

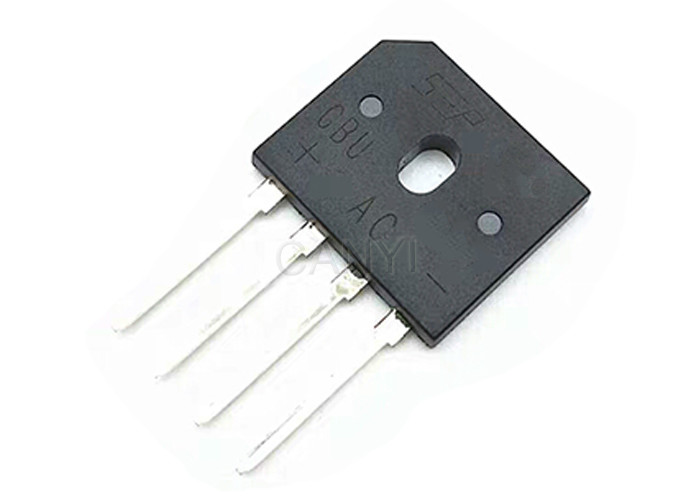

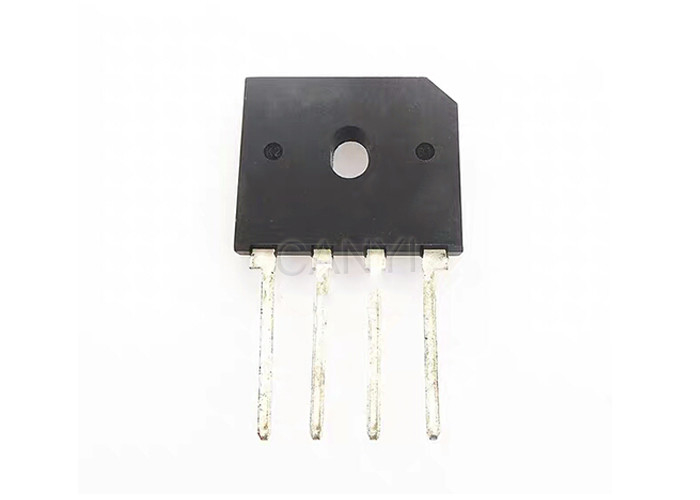

4A 800V GBU-4P GBU4A high current bridge rectifier Glass Passivated 3 phase bridge rectifier diode
Single phase bridge rectifier features:
Fast recovery bridge rectifier mechanical data:
| Parameter | Symbol |
GBU4A
|
GBU4B | GBU4D | GBU4G | GBU4J | GBU4K | GBU4M | Units |
|
Maximum repetitive peak reverse voltage
|
VRRM
|
50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage |
VRMS
|
35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage |
VDC
|
50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum average forward rectified output current at TC = 100 °C (1)
|
IF(AV)
|
4.0 | A | ||||||
|
Maximum average forward rectified output current at TA = 40 °C (2)
|
3.0 | ||||||||
|
Peak forward surge current single sine-wave superimposed on rated load
|
IFSM | 150 | A | ||||||
|
Rating for fusing (t < 8.3 ms)
|
I2T | 93 | A2S | ||||||
|
Operating junction and storage temperature range |
TJ TSTG
|
-55 to +150
|
℃ | ||||||
Professional: We are trading company and have some well cooperated factories specializing in making:
Schottky Signal Diode, Schottky Barrier Diode, High Current Rectifier Diode, Fast Recovery Diode and so on.
We provide best quality products with reasonable price.
