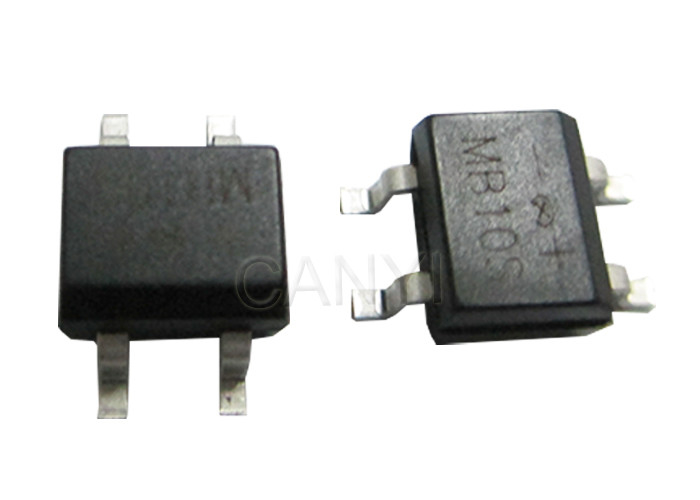

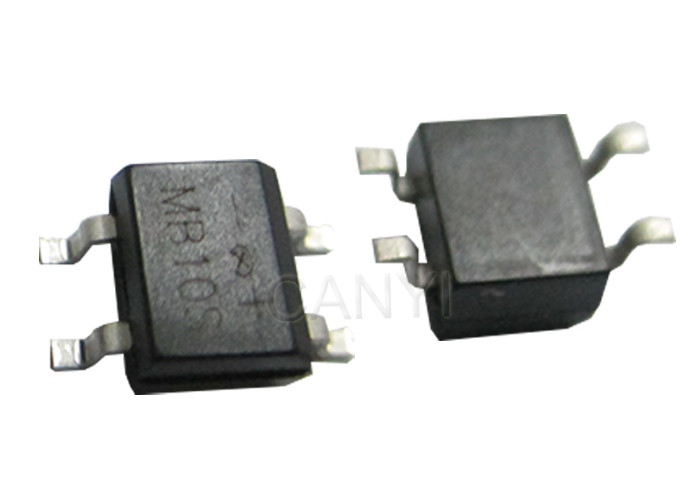

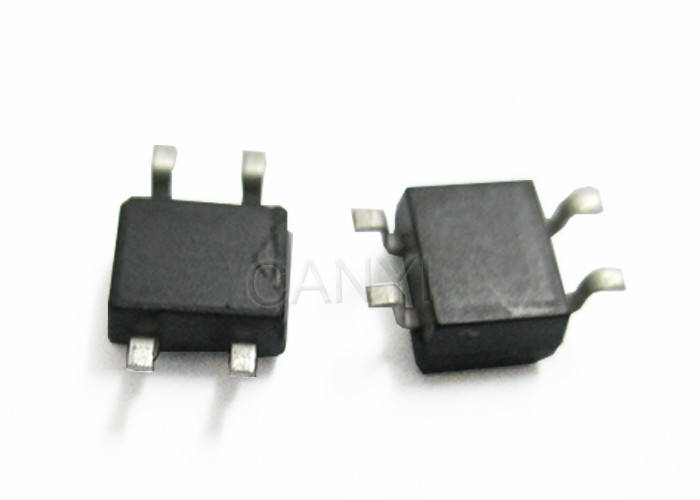

0.8A Single Phase Schottky Bridge Rectifier Smd MBS Package 50 Amp In Glass Passivated

0.8A single phase bridge rectifier smd MBS package 50 amp bridge rectifier in Glass Passivated

High current bridge rectifier features:

1. Glass passivated die construction
2. Low leakage
3. Ideal for printed circuit board
4. Surge overload rating-30A peak
5. Designed for Surface Mount Application
6. Plastic Material-UL Flammability 94V-0
7. This is a Pb − Free Device
8. All SMC parts are traceable to the wafer lot
9. Additional testing can be offered upon

3 phase bridge rectifier mechanical data:

1. Case: Reliable low cost construction utilizing
2. molded plastic technique
3. Terminals: Plated Leads Solderable per MIL STD-202,Method208
4. Polarity: As Marked on Case
5. Mounting Position: Any



Mechanical Dimensions MBS(Inches/Millimeters) and Circuit Diagram



Maximum Ratings @TA=25°C unless otherwise specified

Type Number	Symbol	MB05S	MB1S	MB2S	MB4S	MB6S	MB8S	MB10S	Units
Peak Repetitive Reverse Voltage	VRRM	50	100	200	400	600	800	1000	V
DC Blocking Voltage	VDC	50	100	200	400	600	800	1000	V
RMS Voltage	VRMS	35	70	140	280	420	480	700	V
Average Rectified Output Current (Note1)@TA=40℃	IO	0.5							A
Average Rectified Output Current (Note 2)@TA=40℃	IO	0.8							A
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	30							A



Note: 1. Mounted on glass epoxy PC board with 1.3mm2 solder pad.

2. Mounted on aluminum substrate PC board with 1.3mm2 solder pad.



Carrier Tape Specification MBS:
