| Average Forward Rectified Current: | 0.8A | Instantaneous Voltage Drop: | 1.0V |
|---|---|---|---|
| Typical Total Capacitance: | 10pF | RθJA: | 75℃/W |
| Tj, TSTG: | -55 To +150℃ | Polarity: | As Marked On Case |
| High Light: | schottky diode bridge rectifier,mini patch rectifier bridge |
||

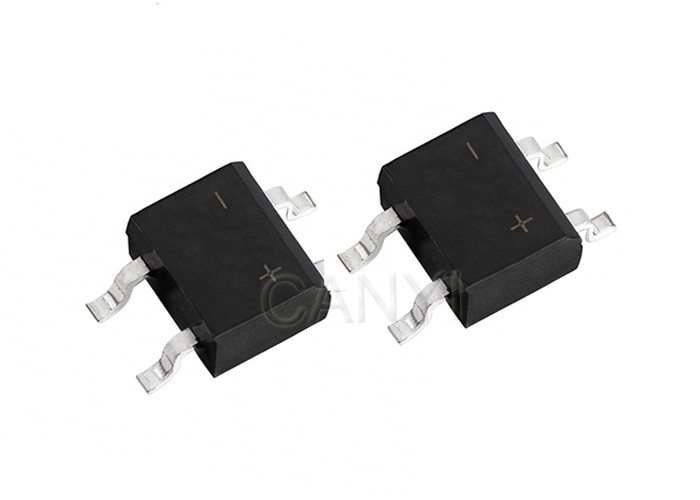

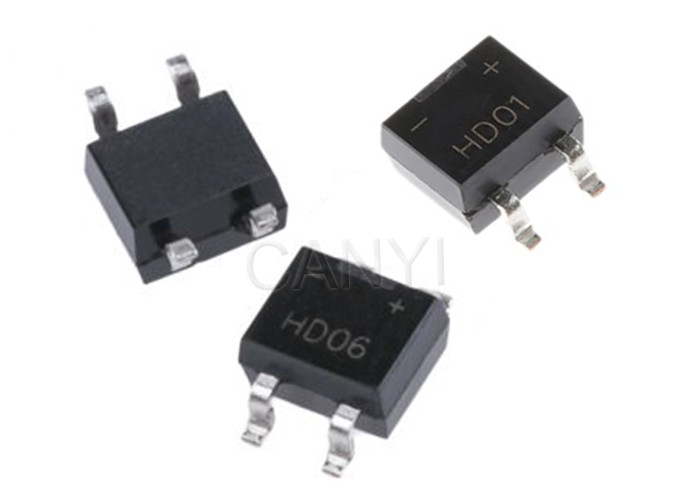

0.8A 600V glass passivated smd bridge rectifier MiniDIP HD01~HD06 Low Forward Voltage Drop in molded plastic
Schottky diode bridge rectifier features:
Surface mount schottky diode mechanical data:
| Parameter | Symbol | HD01 | HD02 | HD04 | HD06 | Unit |
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VDC |
100 | 200 | 400 | 600 | V |
| Maximum RMS voltage | VRMS | 70 | 140 | 280 | 420 | V |
| Average Forward Rectified Current (Note 1) TA = @ 40C |
IO
|
0.8 | A | |||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load |
IFSM | 30 | A | |||
| Instantaneous Voltage Drop @ 0.4A (per element) | VF | 1.0 | V | |||
|
Peak Reverse Current at Rated @ TA = 25℃ DC Blocking Voltage (per element) @ TA = 125℃ |
IR
|
5.0 |
μA
|
|||
| 500 | ||||||
| Typical Total Capacitance (per element) (Note 2) | CT | 10 | pF | |||
|
Typical Thermal Resistance Junction to Ambient (Note 1) |
R θ J A
|
75 |
°C/W
|
|||
| Operating and Storage Temperature Range | TJ,Tstg |
-55 to +150
|
℃ | |||
