| Type: | 5A High Efficiency Diode | Package: | SMA (DO-214AC) |
|---|---|---|---|
| IF(AV): | 1.0A | VRRM: | 50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V |
| Trr: | 50 Ns, 75 Ns | Diode Variations: | Single |
| High Light: | high power diode,low forward voltage diode |
||

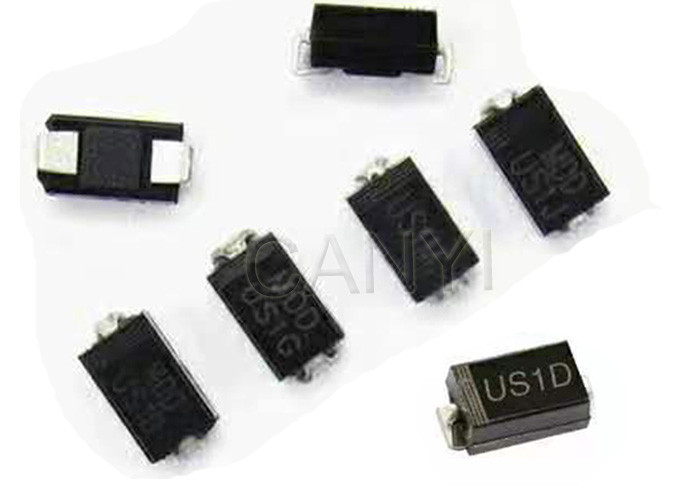

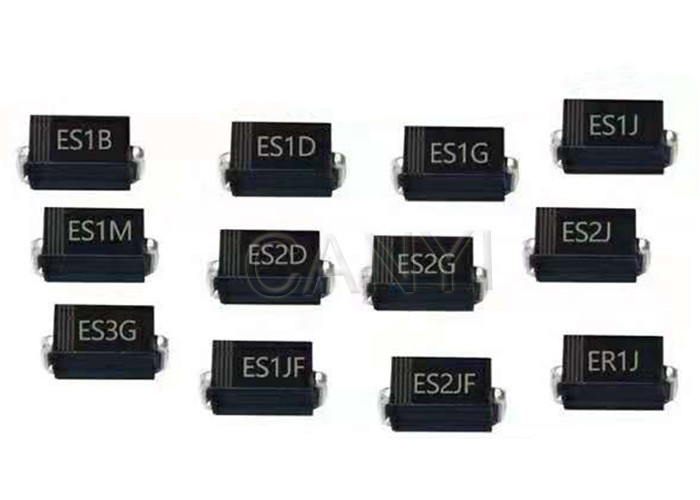

SMA Surface Mount Ultra Fast Rectifier 1A high efficiency diode for high speed diode
Fast recovery diode features:
Plastic epoxy typical applications:
Low leakage diode mechanical Data:
| Parameter | Symbol | U1A |
U1B |
U1D |
U1G |
U1J |
U1K |
U1M |
Unit | |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V | |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V | |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V | |
| Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 50 °C | IF(AV) | 1.0 | A | |||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | |||||||
| Junction Temperature Range | TJ | -65~+125 | ℃ | |||||||
| Storage Temperature Range | Tstg | -65~+150 | ℃ | |||||||
| Parameter | TEST CONDITIONS | Symbol | US1A | US1B | US1D | US1G | US1J | US1K | US1M | Unit | |
| Maximum Forward Voltage | I F = 1.0 A. | VF | 1.0 | 1.7 | V | ||||||
| Maximum DC Reverse Current at rated DC Blocking Voltage | Ta = 25 °C | IR | 10 |
μA |
|||||||
| Ta = 100 °C | IR(H) | 50 | |||||||||
| Maximum reverse recovery time |
IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A |
trr
|
50 | 70 | ns | ||||||
| Typical junction capacitance | 4.0 V, 1 MHz | Cj | 15 | 10 | pF | ||||||
Note
