| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |

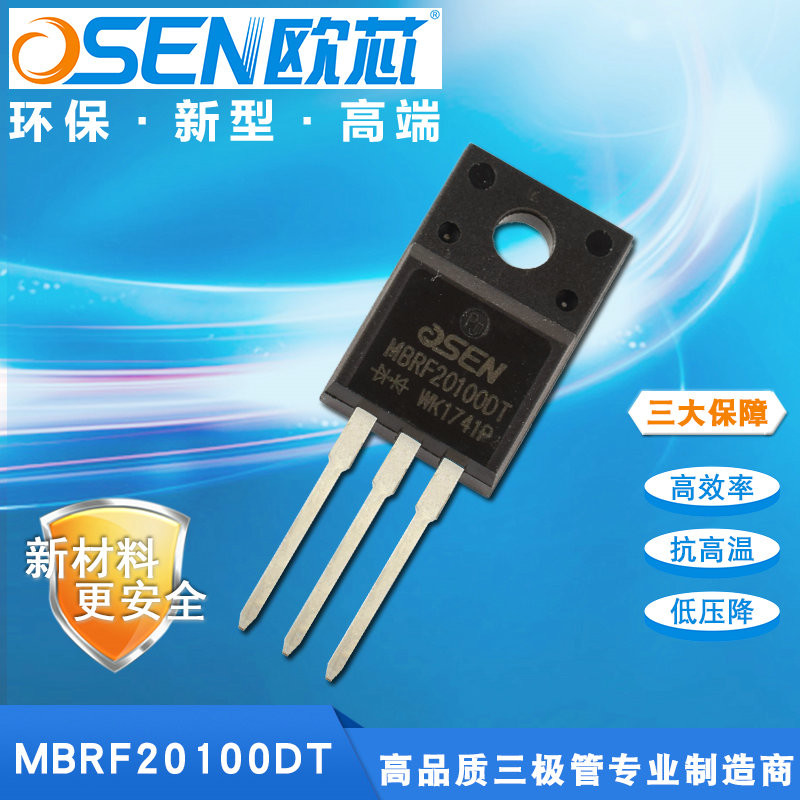

| Model Number: | MBRF20100DT |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | High Current Schottky Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Repetitive Peak Reverse Voltage: | 100V | Working Peak Reverse Voltage: | 100V |
| Maximum DC Blocking Voltage: | 100V | Peak Forward Surge Current: | 150A |
| Voltage Rate Of Change: | 10000 V/μs | Typical Thermal Resistance,Junction To Case: | 3.5 ℃/W |
| High Light: | surface mount schottky diode,small signal schottky diode |
||
Low Power Loss High Current Schottky Diode , Freewheeling 1 Amp Schottky Diode
High Current Schottky Diode Features
High switching frequency
High efficiency and low power loss
High volume of current and good capability of surge current
High Current Schottky Diode Applications
| Type: | High Current Schottky Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Repetitive Peak Reverse Voltage: | 100V | Working Peak Reverse Voltage: | 100V |
| Maximum DC Blocking Voltage: | 100V | Peak Forward Surge Current: | 150A |
| Voltage Rate Of Change: | 10000 V/μs | Typical Thermal Resistance,Junction To Case: |
Service
1. Efficient Servicer: Professional and Efficient services, Feedback in 24 hours. Full range products for choice.
2. Factory Choice: We are professional supplier. OEM / ODM are Available. We also supply search service for you if you need . We have professional purchasing department to supply the latest goods and best seller products.
3. QC Service: Great Quality Check, We know how to do good check quality. We have 19 years experience professional QC team.
4. Logistic Service: We would like to assist our customer to make QC + collect goods from other supplier.
5. Long-Term Service: We are looking for long-term business PARTNER! So we supply excellent service and can design as your request
Absolute Maximum Ratings (Tc=25°C)
| Symbol | Parameters | Ratings | Unit |
| VRRM |
Repetitive Peak Reverse Voltage |
100 | V |
| VRWM |
Working peak reverse voltage |
100 | V |
| VR |
Maximum DC blocking voltage |
100 | V |
| IF(AV) |
Maximum average forward rectified current Total device |
20 | A |
| IFSM |
Peak Forward Surge Current |
150 | A |
| Tj |
Operating junction temperature range |
-65~150 | ℃ |
| Tstg |
Storage temperature range |
-65~175 | ℃ |
Electrical characteristics
| Symbol | Parameters | Min | Typical | Max | Units | Conditions |
| IR |
Maximum Reverse Leakage Current (Note 1) |
-- | -- |
50 100 |
uA |
VR=VRRM TC = 25 °C TC = 125 °C |
|
VF
|
Maximum Instantaneous Forward Voltage(Note 2) |
-- |
0.55 0.58 |
0.60 0.70 |
V
|
IF= 10 A,TC = 25 °C IF= 20 A,TC = 25 °C |
| Rth(j-c) |
Typical Thermal Resistance,Junction to Case |
-- | -- | 3.5 | ℃/W | |
| dV/dt |
Voltage Rate of Change |
-- | -- | 10000 | V/μs |
Note 1: 2.0uS Pulse Width, f=1.0KHz
Note 2: Pulse Test : 300us Pulse Width, 1% Duty Cycle
Ratings and Characteristic curves
Figure 1. Forward Current Characteristics Figure 2. Reverrse Leakage Current
Figure 3. Junction Capacitance Figure 4. Power Derating
