| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | MBRF3045DT |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Signal Diode | Feature: | High Temperature Soldering Guaranteed |
|---|---|---|---|
| Working Peak Reverse Voltage: | 45V | Maximum DC Blocking Voltage: | 45V |
| Maximum Average Forward Rectified Current Total Device: | 30A | Peak Forward Surge Current: | 250A |
| Operating Junction Temperature Range: | -65~150℃ | Storage Temperature Range: | -65~175℃ |
| Maximum Reverse Leakage Current（Note 1）: | 50 / 100μA | Maximum Instantaneous Forward Voltage（Note 2）: | 0.54 / 0.58V |
| Typical Thermal Resistance,Junction To Case: | 3.0℃/W | Voltage Rate Of Change: | 10000V/μs |
| Highlight: | surface mount schottky diode,small signal schottky diode |
||

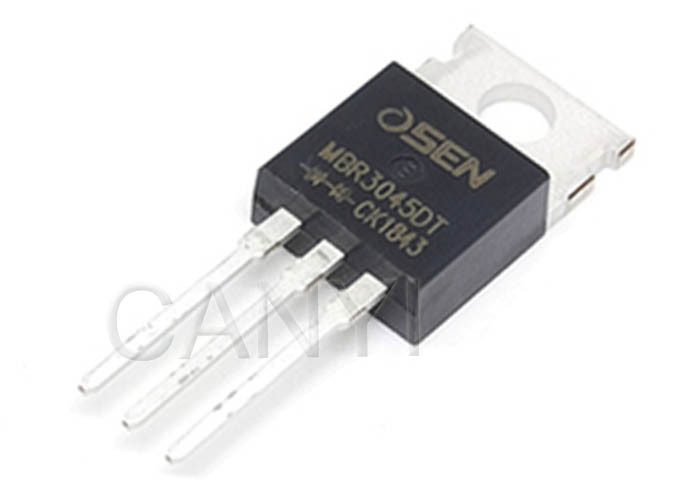

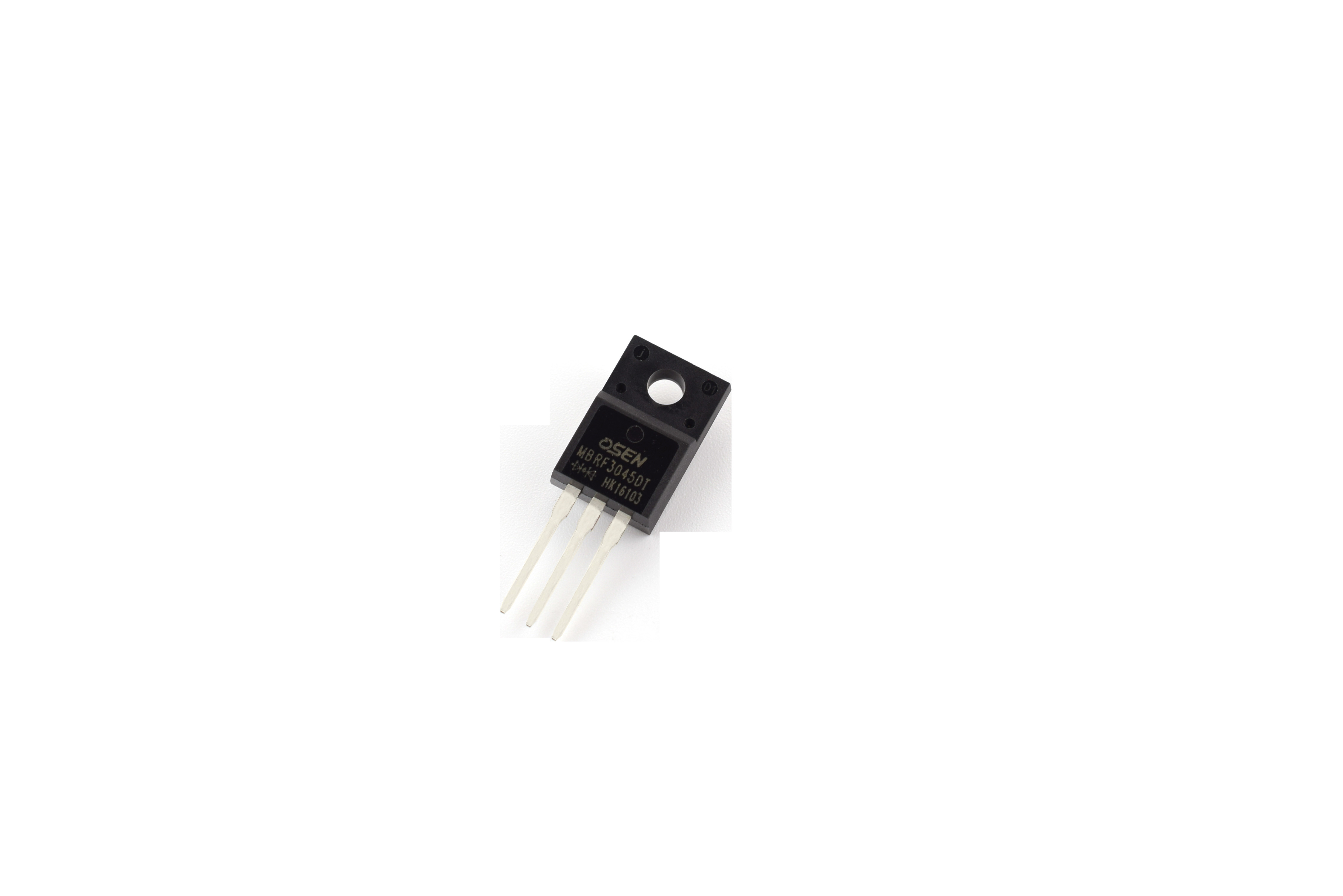

Custom Made Schottky Signal Diode High Temperature Soldering Guaranteed
Schottky Signal Diode Introduction
chottky Signal Diode are named after their inventor, Dr. Schottky, short for Schottky Barrier Diode (abbreviated SBD). SBD is not fabricated by the principle of forming a PN junction by contacting a P-type semiconductor with an N-type semiconductor, but by a metal-semiconductor junction principle formed by metal-to-semiconductor contact. Therefore, SBD is also called a metal-semiconductor (contact) diode or a surface barrier diode, which is a hot carrier diode.
chottky Signal Diode Applications
Freewheeling diodes
Polarity protection application
DC-DC converters
| Type: | Schottky Signal Diode | Repetitive Peak Reverse Voltage: | 45V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 45V | Maximum DC Blocking Voltage: | 45V |
| Maximum Average Forward Rectified Current Total Device: | 30A | Peak Forward Surge Current: | 250A |
| Operating Junction Temperature Range: | -65~150℃ | Storage Temperature Range: | -65~175℃ |
| Maximum Reverse Leakage Current(Note 1): | 50 / 100μA | Maximum Instantaneous Forward Voltage(Note 2): | 0.54 / 0.58V |
| Typical Thermal Resistance,Junction To Case: | 3.0℃/W | Voltage Rate Of Change: | 10000V/μs |
