| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | SS36 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 0.7V | Max. Forward Current: | 3A |
| Max. Reverse Current: | 0.5 MA | Package: | SMB DO-214AA |
| Material: | Silicon | Working Temperature: | -55 - +150(℃) |
| High Light: | surface mount schottky diode,small signal schottky diode |
||

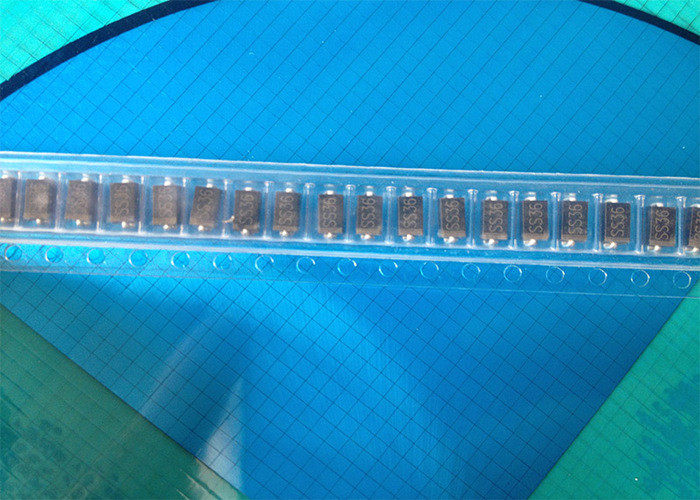

SS36 schottky diode schottky barrier rectifier diode SMC DO-214AB package
Features
1. Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2. For surface mount applications
3. Low profile package
4. Built-in strain relief
5. Metal sillicon junction, majority carrier conduction
6. Low power loss, high efficiency
7. High current capability, low forward voltage drop
8. High surge capability
Mechanical Data
Case: JEDEC DO-214AA molded plastic body
Terminals: Solder plated, solderadle per MIL-STD-750D Method 2026
Polarity: Color band denotes cathode end
Weight: 0.003 ounes, 0.093 gram
Maximum Ratings And Electrical Characteristics
Full Product Range
Schottky Barrier Diode: 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L......
High Current Rectifier Diode: 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10......
Fast Recovery Diode: FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307......
High Efficiency Diode: HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508......
Fast Switching Diode: 1N4148, 1N4148-T4, LL4148......
Schottky Bridge Rectifier: MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307......
Ultra Fast Recovery Rectifier Diode: UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28......
