| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | SS36 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Schottky Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 0.7V | Max. Forward Current: | 3A |
| Max. Reverse Current: | 0.5 MA | Package: | SMB DO-214AA |
| Material: | Silicon | Working Temperature: | -55 - +150(℃) |
| High Light: | small signal schottky diode,high voltage schottky diode |
||

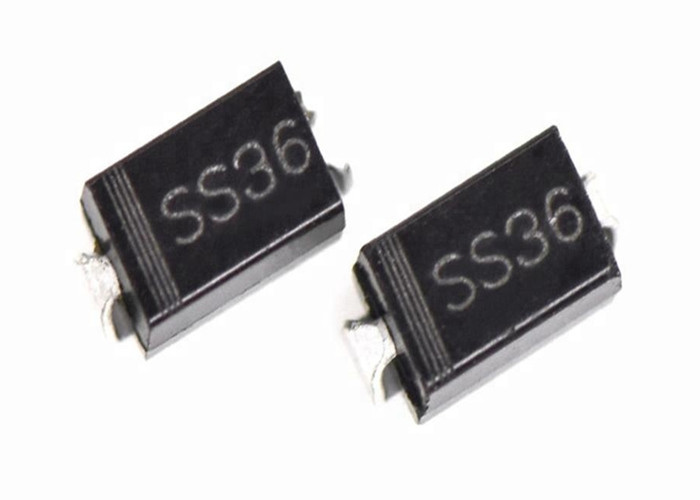

SS36 schottky diode schottky barrier rectifier diode SMC DO-214AB package
Features
1. Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2. For surface mount applications
3. Low profile package
4. Built-in strain relief
5. Metal sillicon junction, majority carrier conduction
6. Low power loss, high efficiency
7. High current capability, low forward voltage drop
8. High surge capability
9. For use in low voltage high frequency inverters. free wheeling, and polarity protection applications
10. Guardring for overvoltage protection
11. High temperature soldering guaranteed: 260℃/10 seconds, at terminals
Mechanical Data
Case: JEDEC DO-214AA molded plastic body
Terminals: Solder plated, solderadle per MIL-STD-750D Method 2026
Polarity: Color band denotes cathode end
Weight: 0.003 ounes, 0.093 gram
Maximum Ratings And Electrical Characteristics
FAQ
Q: When can I get the price?
A: We will reply you ASAP. We will quote for you within 12 hours after we get your inquiry.
Q: How many kinds of products in your factory ?
A: We have a large range of products, such as Schottky Signal Diode, Schottky Barrier Diode, High Current Rectifier Diode, Fast Recovery Diode, Fast Switching Diode, Surface Mount Zener Diode and etc. Looking forward to your email.
Q:Can you customize it DIY?
A: We can help you design exclusive products according to your requirements. We have the entire service flow from product R&D design, manufacturing process to finished product packaging, welcome to sample custom.
Q: How long can I expect to get the sample?
A: It will be ready for delivery in 1 - 2 weeks, depends on the feature of your sample. The samples will be sent to you by express.
