| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | HER201 THRU HER208 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 1V THRU 1.7V | Max. Reverse Voltage: | 50V THRU 1000 V |
| Max. Forward Current: | 2 A | Max. Reverse Current: | 5 μA |
| Case Style: | DO-15 | OEM: | Support |
| High Light: | high power diode,low forward voltage diode |
||

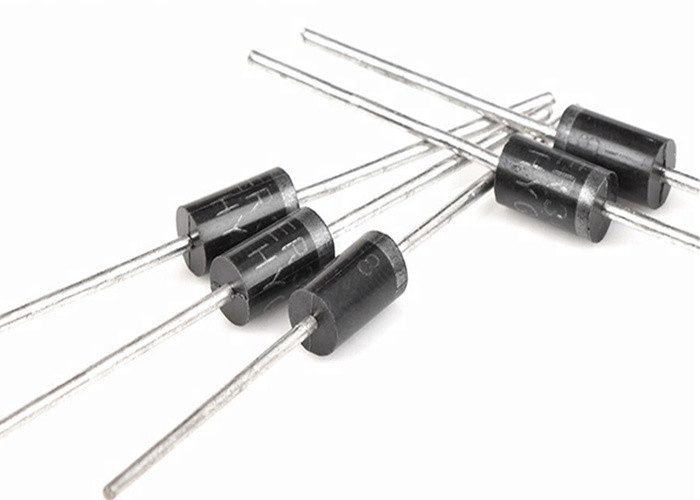

2A HIGH EFFICIENCY RECTIFIER DIODE HER201 HER202 HER203 HER204 HER205 HER206 HER207 HER208 DIODE
Feature:
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
High speed switching for high efficiency
Low reverse leakage
High forward surge current capability
Diffused Junction
Low Forward Voltage Drop
High Reliability
Mechanical Data:
Case: Molded Plastic
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.40 grams approx.
Mounting Position: Any
Marking: Type Number
Electrical Characteristics
| 50V | 100V | 200V | 300V | 400V | 600V | 800V | 1000V | |
| 1A | HER101 | HER102 | HER103 | HER104 | HER105 | HER106 | HER107 | HER108 |
| 1.5A | HER151 | HER152 | HER153 | HER154 | HER155 | HER156 | HER157 | HER158 |
| 2A | HER201 | HER202 | HER203 | HER204 | HER205 | HER206 | HER207 | HER208 |
| 2.5A | HER251 | HER252 | HER253 | HER254 | HER255 | HER256 | HER257 | HER258 |
| 3A | HER301 | HER302 | HER303 | HER304 | HER305 | HER306 | HER307 | HER308 |
| 6A | HER601 | HER602 | HER603 | HER604 | HER605 | HER606 | HER607 | HER608 |
