| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | HER101 HER102 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 1V | Max. Reverse Voltage: | 100V |
| Max. Forward Current: | 1.0A | Max. Reverse Current: | 5 UA |
| Package: | DO-41 | Material: | Silicon |
| IFSM: | 30A | Weight: | 0.012ounce, 0.33 Gram |
| Working Temperature: | -65 - +150(℃) | Typical Junction Capacitance: | 15 PF |
| High Light: | high power diode,low forward voltage diode |
||

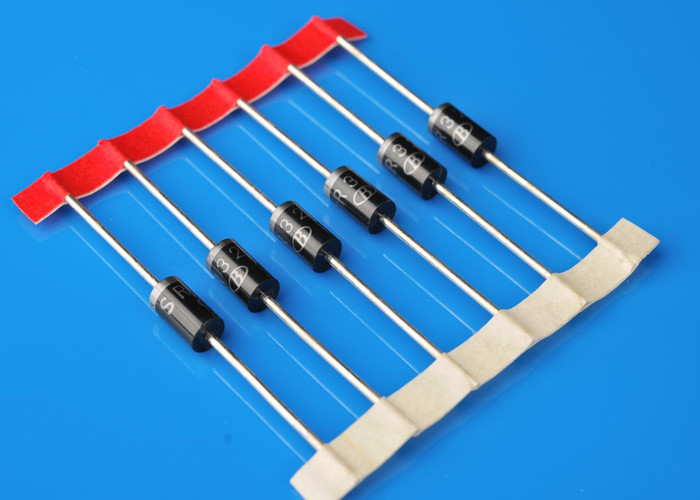

HER101 HER102 High Efficiency Rectifier Diode DO-41 package
Mechanical Data
Case: Molded plastic
Terminals: Solder plated solderable per MIL-STD-202, Method 208
Polarity: Cathode band
Mounting Position: Any
Weight: 0.3 grams (approx)
Features
1. Diffused junction
2. Low reverse leakage current
3. Fast switching for high efficiency
4. High current capability and low Forward Voltage Drop
5. Surge overload rating to 30A peak
100% Product quality protection !
100% On-time shipment protection !!
100% Payment protection !!!
Bulk packaging data:
0.54*45 Diodes Bulk Box: 63*21*191MM Outer Box: 42*33*24CM
0.58 Diodes Bulk Box: 84*22*195MM Outer Box: 42*33*24CM
0.54*45 Diodes Tape cassette: 255*145*75MM Outer box: 42*27.6*31CM
45 long bulk packaging: 42*33*24CM
58 long bulk packaging: 45*21*26CM
