| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | HER101 HER102 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 1V | Max. Reverse Voltage: | 100V |
| Max. Forward Current: | 1.0A | Max. Reverse Current: | 5 UA |
| Package: | DO-41 | Material: | Silicon |
| IFSM: | 30A | Weight: | 0.012ounce, 0.33 Gram |
| Working Temperature: | -65 - +150(℃) | Typical Junction Capacitance: | 15 PF |
| High Light: | high efficiency rectifier diode,low forward voltage diode |
||

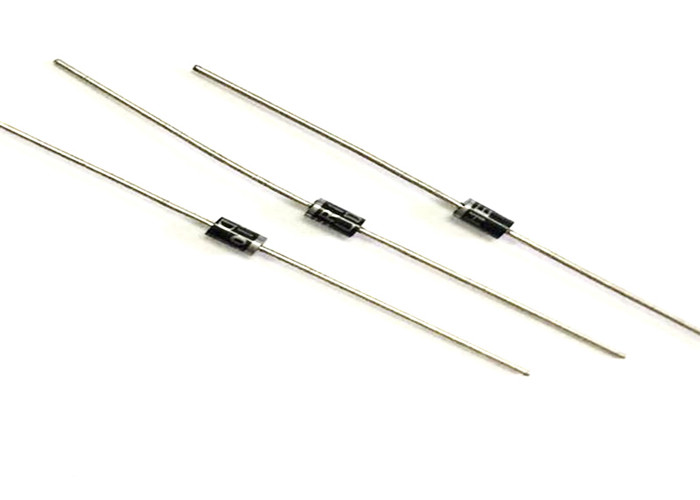

HER101 HER102 High Efficiency Rectifier Diode DO-41 package
Features
1. Diffused junction
2. Fast switching for high efficiency
3. High current capability and low Forward Voltage Drop
4. Surge overload rating to 30A peak
5. Low reverse leakage current
Mechanical Data
Case: Molded plastic
Terminals: Solder plated solderable per MIL-STD-202, Method 208
Polarity: Cathode band
Mounting Position: Any
Weight: 0.3 grams (approx)
Full Product Range
Schottky Barrier Diode: 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L......
High Current Rectifier Diode: 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10......
Fast Recovery Diode: FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307......
High Efficiency Diode: HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508......
Fast Switching Diode: 1N4148, 1N4148-T4, LL4148......
Schottky Bridge Rectifier: MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307......
Ultra Fast Recovery Rectifier Diode: UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28......
