| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Current: | 5uA |
| Key Word: | RS1M | VRRM: | 1000 Volts |
| VRMS: | 700V | VDC: | 1000V |
| High Light: | fast recovery diode module,small signal diode |
||

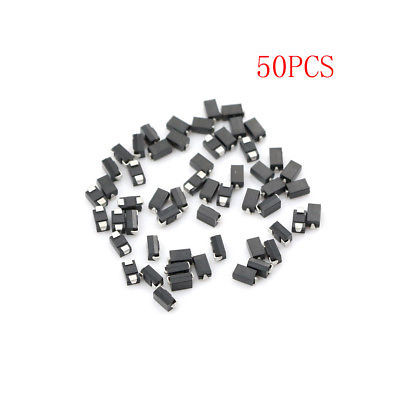

RS1M Fast recovery Diodes SMA package RS1M ultra-thin SMD fast recovery diodes punuo supply
Specification:
| Maximum Ratings & Thermal Characteristics | |||||||||
| Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20% | |||||||||
| Parameter | Symbol | RS1A | RS1B | RS1D | RS1G | RS1J | RS1K | RS1M | UNIT |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum Average Forward Rectified Current @TA=75 ℃ | I(AV) | 1.0 | A | ||||||
| Peak Forward Surage Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load(JEDEC Method) | IFSM | 30 | A | ||||||
| Peak Forward Voltage at 1.0A DC | VF | 1.3 | V | ||||||
| Maximum DC Reverse Current at Rated DC Blocking Voltage @TJ=25℃ @TJ=100℃ | IR | 5.0 100 | μA | ||||||
| Maximum Reverse Recovery Time (Note 1) | TRR | 150 | 250 | 500 | ns | ||||
| Tyical Junction Capacitance (Note2) | CJ | 25 | 15 | pF | |||||
| Tyical Thermal Resistance (Note3) | RθJA | 25 | ℃/W | ||||||
| Operating Temperature Range | TJ | -55 to + 150 | ℃ | ||||||
| Storage Temperature Range | TSTG | -55 to + 150 | ℃ | ||||||
| NOTES: 1.Measured with IF=0.5A,IR=1A,IRR=0.25A 2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC 3.Thermal resistance junction of ambient. | |||||||||
