| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Current: | 5uA |
| Key Word: | RS1M | VRRM: | 1000 Volts |
| High Light: | fast recovery rectifier diode,fast recovery diode module |
||

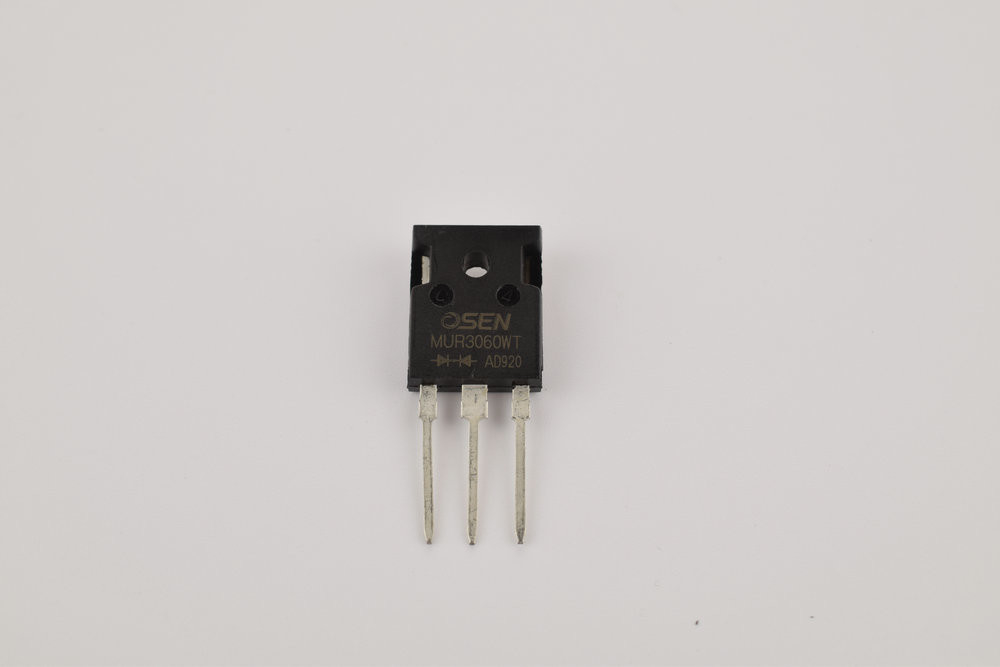

Small High Voltage Fast Recovery Diode For Rail - To - Rail Protection
Composition materials: The main components of this product are silicon chip, black glue, copper, tin
Specification:
| Maximum Ratings & Thermal Characteristics | |||||||||
| Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20% |
|||||||||
| Parameter | Symbol | RS1A | RS1B | RS1D | RS1G | RS1J | RS1K | RS1M | UNIT |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum Average Forward Rectified Current @TA=75 ℃ |
I(AV) | 1.0 | A | ||||||
| Peak Forward Surage Current 8.3ms Single Half Sine-Wave Super Imposed on Rated Load(JEDEC Method) |
IFSM | 30 | A | ||||||
| Peak Forward Voltage at 1.0A DC | VF | 1.3 | V | ||||||
| Maximum DC Reverse Current at Rated DC Blocking Voltage @TJ=25℃ @TJ=100℃ |
IR | 5.0 100 |
μA | ||||||
| Maximum Reverse Recovery Time (Note 1) | TRR | 150 | 250 | 500 | ns | ||||
| Tyical Junction Capacitance (Note2) | CJ | 25 | 15 | pF | |||||
| Tyical Thermal Resistance (Note3) | RθJA | 25 | ℃/W | ||||||
| Operating Temperature Range | TJ | -55 to + 150 | ℃ | ||||||
| Storage Temperature Range | TSTG | -55 to + 150 | ℃ | ||||||
| NOTES: 1.Measured with IF=0.5A,IR=1A,IRR=0.25A 2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC 3.Thermal resistance junction of ambient. |
|||||||||
Full Product Range
Schottky Barrier Diode: 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L......
High Current Rectifier Diode: 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10......
Fast Recovery Diode: FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307......
High Efficiency Diode: HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508......
Fast Switching Diode: 1N4148, 1N4148-T4, LL4148......
Schottky Bridge Rectifier: MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307......
Ultra Fast Recovery Rectifier Diode: UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28......
OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging. We can print your Logo in our products by silk screen printing or laser printing according to your artwork design to meet your special requirements. You can send us the artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
