| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | RS1M |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Current: | 5uA |
| Key Word: | RS1M | VRRM: | 1000 Volts |
| VRMS: | 700V | VDC: | 1000V |
| High Light: | fast recovery rectifier diode,fast recovery diode module |
||

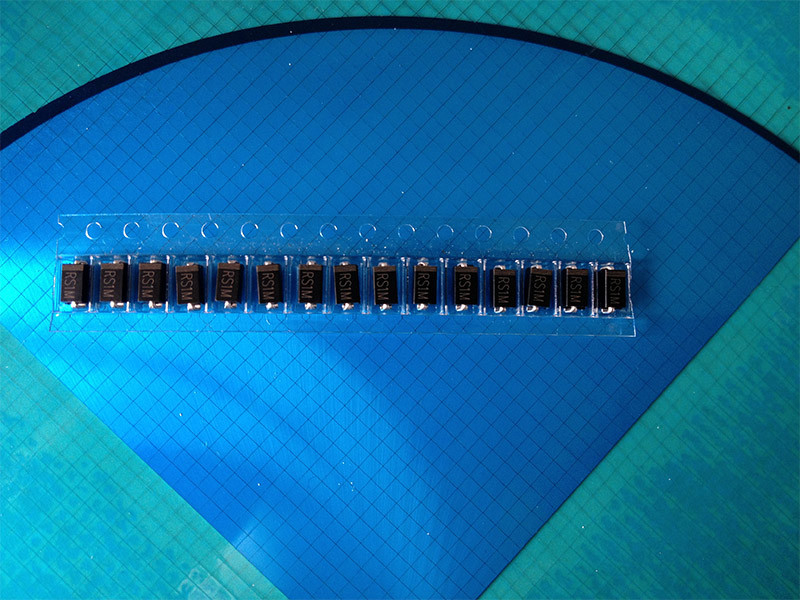

RS1M Fast recovery rectifier diode for Surface Mount Applications
FEATURES
· Glass passivated junction
· For Surface Mount Applications, Easy to pick and place
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· High temperature soldering guaranteed:260℃/10 seconds at terminals
· Component in accordance to RoHS 2011/65/EU
MECHANICAL DATA
· Case: JEDEC DO-214AC molded plastic over glass passivated chip
· Terminals: Solder plated
· Polarity: Color band denotes cathode end
· Weight: 0.002 ounce, 0.064 g
(1) Original quantity with wholesale price
(2) Quick and Safe Delivery
(3) Experienced Service Team
(4) 24 hours Online Customer Service
(5) OEM customized service offered
(6) Good feedback from all over the world
(7) Full range products for choice
Full Product Range
Schottky Barrier Diode: 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L......
High Current Rectifier Diode: 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10......
Fast Recovery Diode: FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307......
High Efficiency Diode: HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508......
Fast Switching Diode: 1N4148, 1N4148-T4, LL4148......
Schottky Bridge Rectifier: MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307......
Ultra Fast Recovery Rectifier Diode: UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28......
