| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | F7 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Package Type: | Surface Mount | Max. Forward Voltage: | 1.3V |
|---|---|---|---|
| Max. Reverse Voltage: | 1000V | Max. Forward Current: | 1A |
| Max. Reverse Current: | 5μA | VRRM: | 1000 Volts |
| VRMS: | 700V | VDC: | 1000V |
| I(AV): | 1.0 Amps | Weight: | 0.01 Gram |
| High Light: | fast recovery rectifier diode,fast recovery diode module |
||

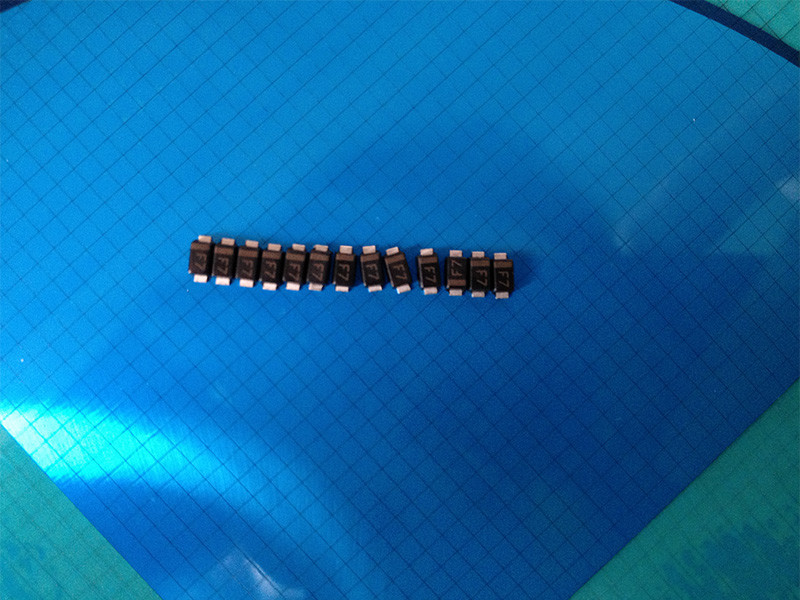

0.01 gram 1000v fast recovery rectifiers diode F7
FEATURES
· Glass passived junction
· For Surface Mount Applications, Easy to pick and place
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· High temperature soldering guaranteed:260°C/10 seconds at terminals,
· Component in accordance to RoHS 2011/65/EU
RATINGSAND CHARACTERISTIC CURVES F1 THRU F7
