| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | F7 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Voltage: | 1000V |
| Max. Forward Current: | 1.0 A | Max. Reverse Current: | 5.0 UA |
| Maximum Reverse Recovery Time: | 500 Ns | Package: | SOD-123FL |
| Material: | Silicon | IFSM: | 30A |
| High Light: | fast recovery rectifier diode,fast recovery diode module |
||

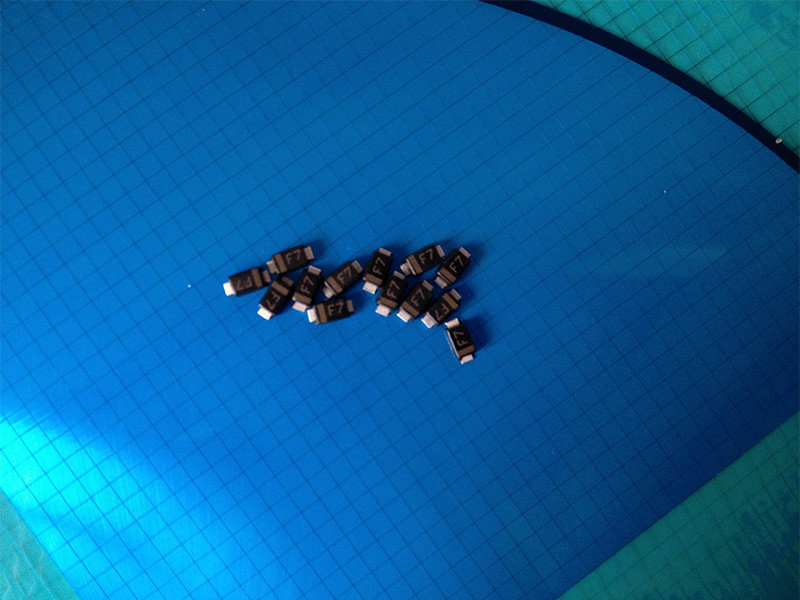

F7 Surface Mount Fast Recovery Rectifier Diode SOD-123FL package
FEATURES
1). Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2). Metal silicon junction ,majority carrier conduction
3). Guard ring for overvoltage protection
4). Low power loss ,high efficiency
5). High current capability ,Low forward voltage drop
6). High surge capability
7). For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
8). High temperature soldering guaranteed:260 C/10 seconds at terminals
9). Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Product Category: Fast Recovery Diode
Product specifications: SOD-123FL
Composition materials: The main components of this product are silicon chip, black glue, copper, tin
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
