| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | SB240-SB2100 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiated |

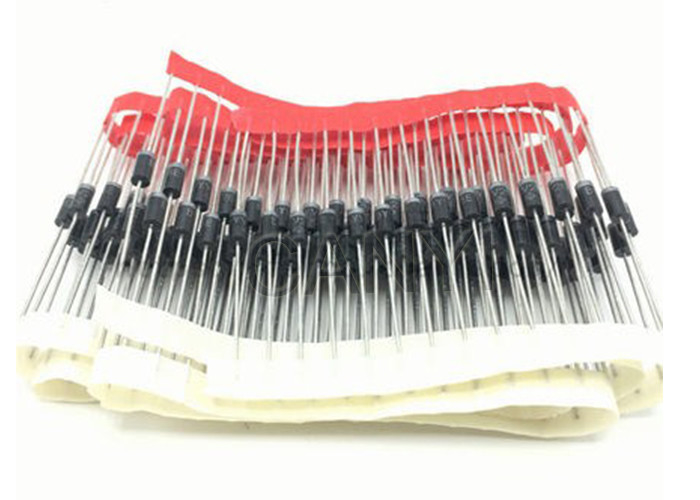

| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | 2A Power Schottky Rectifier | Maximum Average Forward Rectified Current: | 2.0Amps |
|---|---|---|---|
| Typical Junction Capacitance: | 170pF | Max. Reverse Voltage: | 100V |
| Case Style: | DO-15 | Storage Temperature Range: | -50 To +150ºC |
| Highlight: | small signal schottky diode,high voltage schottky diode |
||

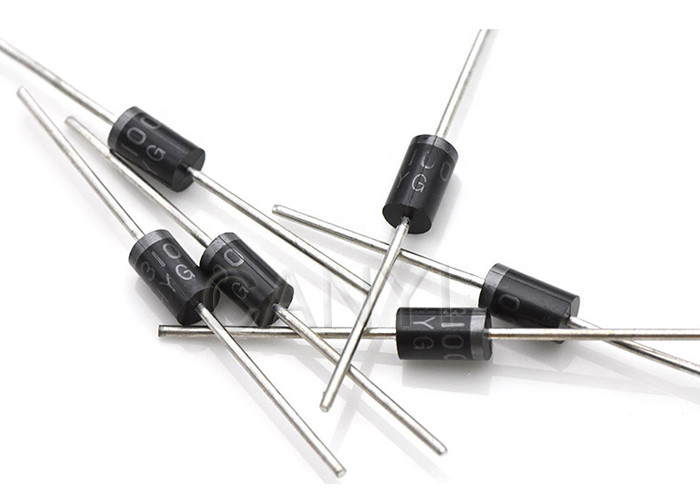

2A power schottky rectifier molded plastic SB240 thru SB2100 small signal schottky diode
Low forward voltage drop,Low forward voltage drop SB240 Thru SR2100,voltage from 40V to 100V
| Type | SB240 | SB260 | SB2100 | Unit | |
|
Maximum Recurrent Peak Reverse Voltage
|
40 | 60 | 100 | V | |
|
Maximum RMS Voltage
|
28 | 42 | 70 | V | |
|
Maximum DC Blocking Voltage
|
40 | 60 | 100 | V | |
|
Maximum Average Forward Rectified Current
|
2.0 | A | |||
|
Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load
|
50 | A | |||
|
Maximum Instantaneous Forward Voltage at 2.0A
|
0.55 | 0.65 | 0.82 | V | |
|
Maximum DC Reverse Current at Rated DC Blocking Voltage
|
Ta = 25ºC
|
0.5 | 0.3 | 0.01 | mA |
|
Ta = 100ºC
|
20 | 15 | 10 | ||
|
Typical Junction Capacitance
|
170 | pF | |||
|
Typical Thermal Resistance RθJA
|
35 |
ºC/W
|
|||
|
Operating Temperature Range TJ
|
-50 to +150
|
-50 to +175
|
ºC | ||
|
Storage Temperature Range TSTG
|
-50 to +150
|
ºC | |||
Shenzhen Canyi Electronics Technology Co., Ltd. was established in 2000. After more than ten years of development, it has become a professional agent of well-known electronic component brands at home and abroad.
Our Strict Quality Control:
1. Our quality controller has working in our factory for more than 10 years, very expericed.
2. We will test the each product, each accessory before shipping, to make sure its high quality.
3. We will pack the cargo well to make sure the goods in good status during delivery.
| Schottky Barrier Diode: | 1N5817-1N5819, SR120-140-160-180-SR1100, SR220-240-260-SR280, SR3150/SR3200, SR340L, SR5100L...... |
| High Current Rectifier Diode: | 1N4001, 1N4004, 1N4007, RL201-RL205-RL207, 1N5400-5404-1N5408, 10A05-10A08-10A10...... |
| Fast Recovery Diode: | FR104-FR107, 1N4933-1N4937, FR201-204-207-208, FR301-FR304-FR307...... |
| High Efficiency Diode: | HER104-HER108, HER201-204-205-207-HER208, HER601-606-HER608, HER501-503-505-506-HER508...... |
| Fast Switching Diode: | 1N4148, 1N4148-T4, LL4148...... |
| Schottky Bridge Rectifier: | MB6S-10S, MB6F-10F, MB16F-110F, MB6M-10M, ABS6-ABS10, DB101-DB107S, DB201-DB207S, KBP206-KBP210, KBP307...... |
| Ultra Fast Recovery Rectifier Diode: | UF203 UF204 UF206 UF207, UF4001-UF4004-UF4007, UF5400-UF5401-UF5404-UF5408, SF21-24-26-SF28...... |
