| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | F7 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Voltage: | 1000V |
| Max. Forward Current: | 1.0 A | Max. Reverse Current: | 5.0 UA |
| Maximum Reverse Recovery Time: | 500 Ns | Package: | SOD-123FL |
| Material: | Silicon | IFSM: | 30A |
| Highlight: | fast recovery diode module,small signal diode |
||

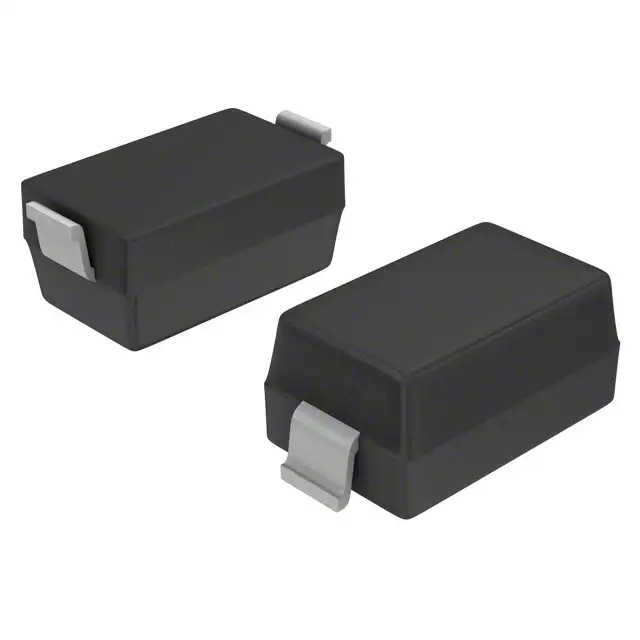

F7 Surface Mount Fast Recovery Rectifier Diode SOD-123FL package
FEATURES
1). Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2). Metal silicon junction ,majority carrier conduction
3). Guard ring for overvoltage protection
4). Low power loss ,high efficiency
5). High current capability ,Low forward voltage drop
6). High surge capability
7). For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
Product Category: Fast Recovery Diode
Storage method: sealed, stored at room temperature
Composition materials: The main components of this product are silicon chip, black glue, copper, tin
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
