| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | LM2596 |
| Minimum Order Quantity: | 500pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Voltage Regulator | Supply Voltagemperature: | 7-35V |
|---|---|---|---|
| OEM: | Can Customizable Products | Name: | LED Driver Battery Charger Module |
| Model: | LM2596 | ||
| High Light: | LM2596 Power Supply Module,35V 15W Power Supply Module,3A LED Driver Battery Charger PCB |
||

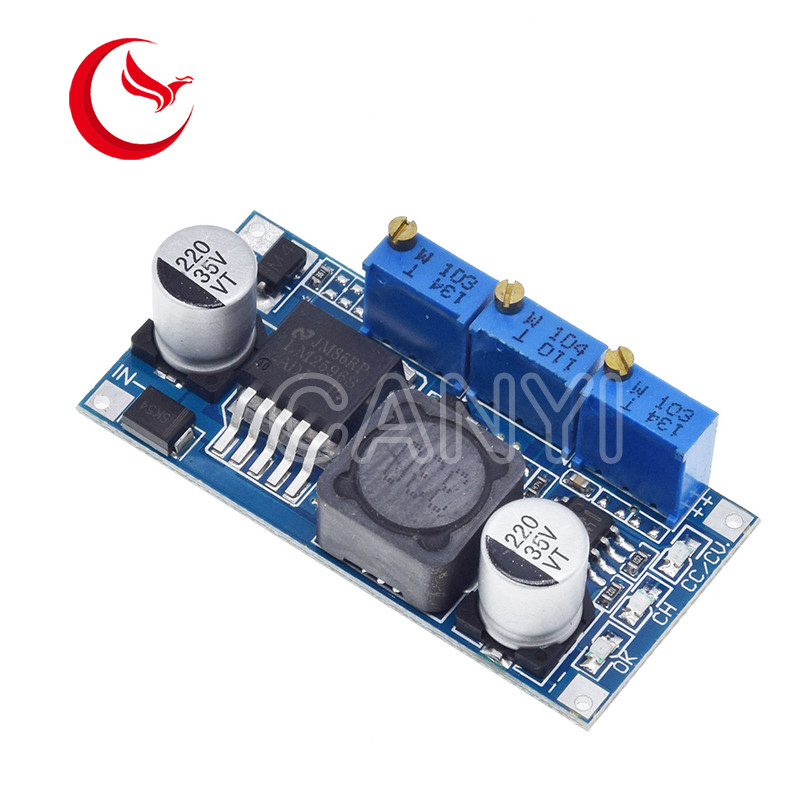

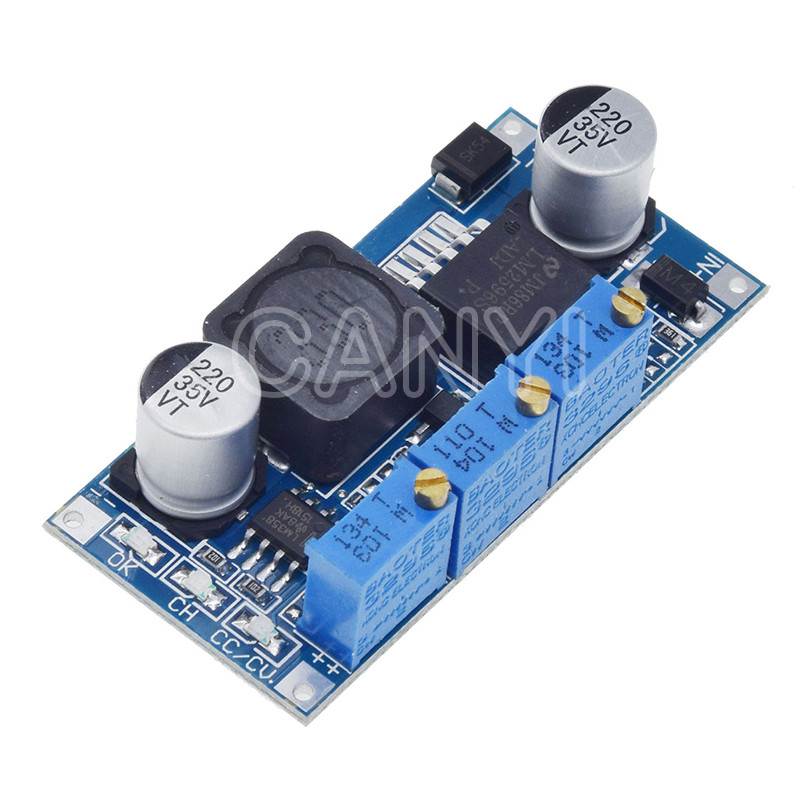

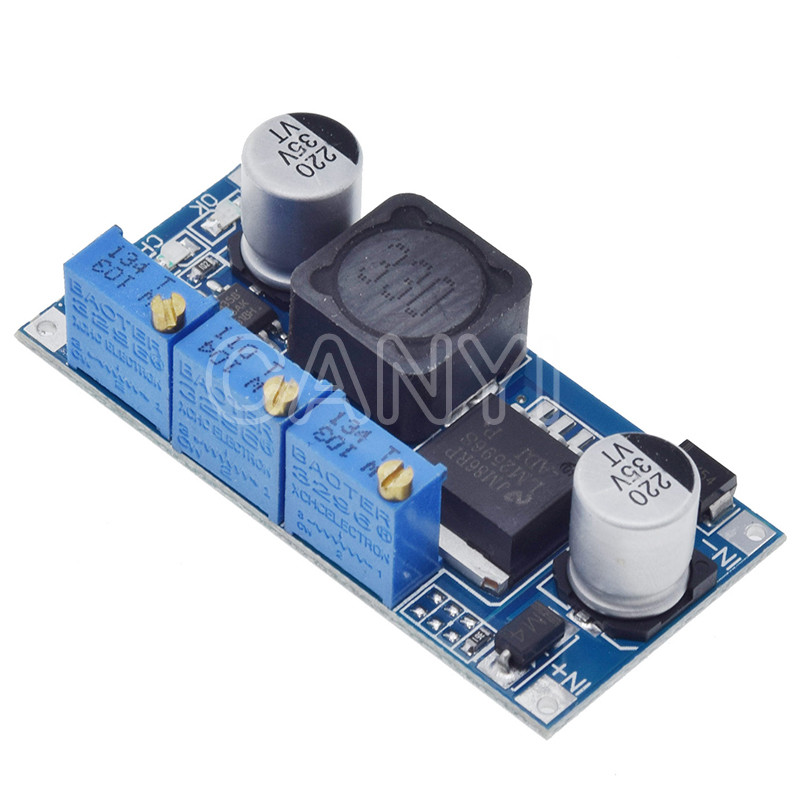

LM2596 Step Down Power Supply Module LED Driver Battery Charger Adjustable Constant Current Voltage
Description
Input voltage: 7-35V
Output voltage: 1.25-30V adjustable
Dropout voltage: input voltage must be higher than output voltage of 2V
Output current: 0-3A, 3A maximum
Output power: 15W(If the temperature is high, please strengthen heat dissipation)
Conversion efficiency: 92% maximum (the higher the output voltage, the higher the efficiency)
Turn lamp current: constant current value * (1% -100%), turn lamp current and constant current value linkage, such as constant current value is 3A, turn the lamp current is set to 0.1 times that of the constant current (0.1 * 3 A = 0.1A), when the value of the constant current regulation into 2A, turn lamp current is 0.1 times that of the constant current (0.1 * 2A = 0.2A). The default shipment has to adjust to the 0.1 times
Indicator light:
constant current cc indicator light red,
charging indicator light red,
full-charged indicator light blue
The output ripple: 20M bandwidth (for reference only)
Input 12V output 5V 3A 60mV (MAX)
Working temperature: industrial grade (- 40 + 85 celsius degree) (when temperature is more than 40 degrees, please reduce power, or enhance heat dissipation)
Full load temperature rise: 45 celsius degree
No-load current: 10mA typical (12V to 4.2V)
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: yes, constant current (current setting constant current value)
Connection mode: can lead directly welding on the PCB
