| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | wireless transceiver module |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Model Number: | TF Wireless Transceiver Module | Application: | Computer |
|---|---|---|---|
| Supply Voltage: | 5V | For Arduino STM: | Electronic Module |
| High Light: | 868Mhz Rf Wireless Transceiver Module,20dBm Rf Wireless Transceiver Module,RFM69HW Pcb Board |
||
Product description:

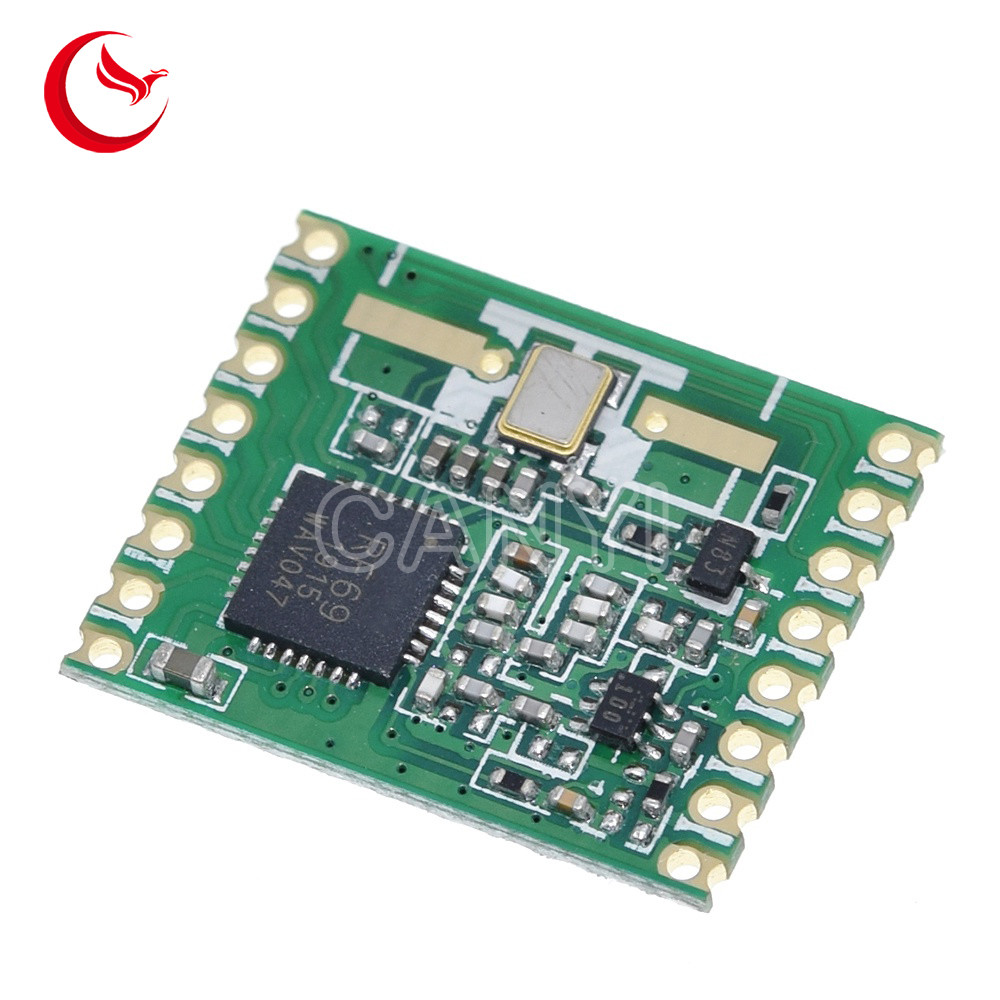

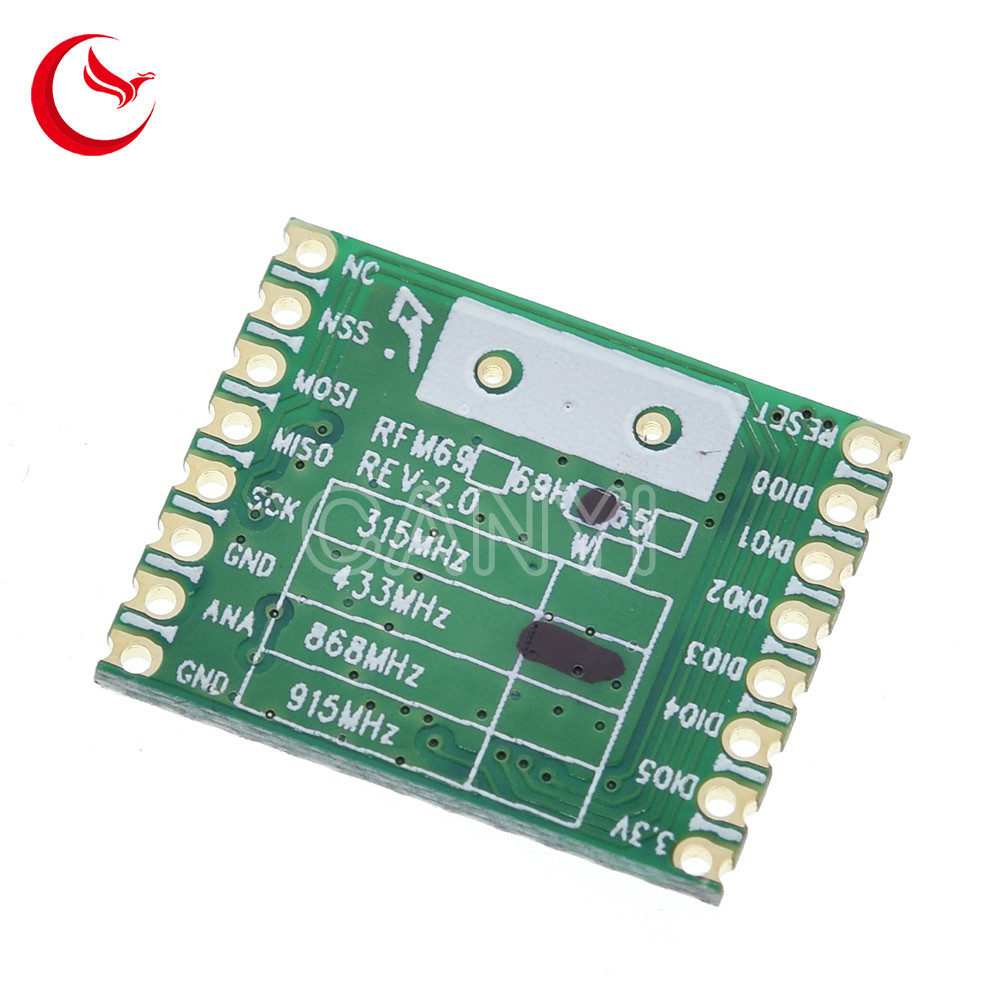

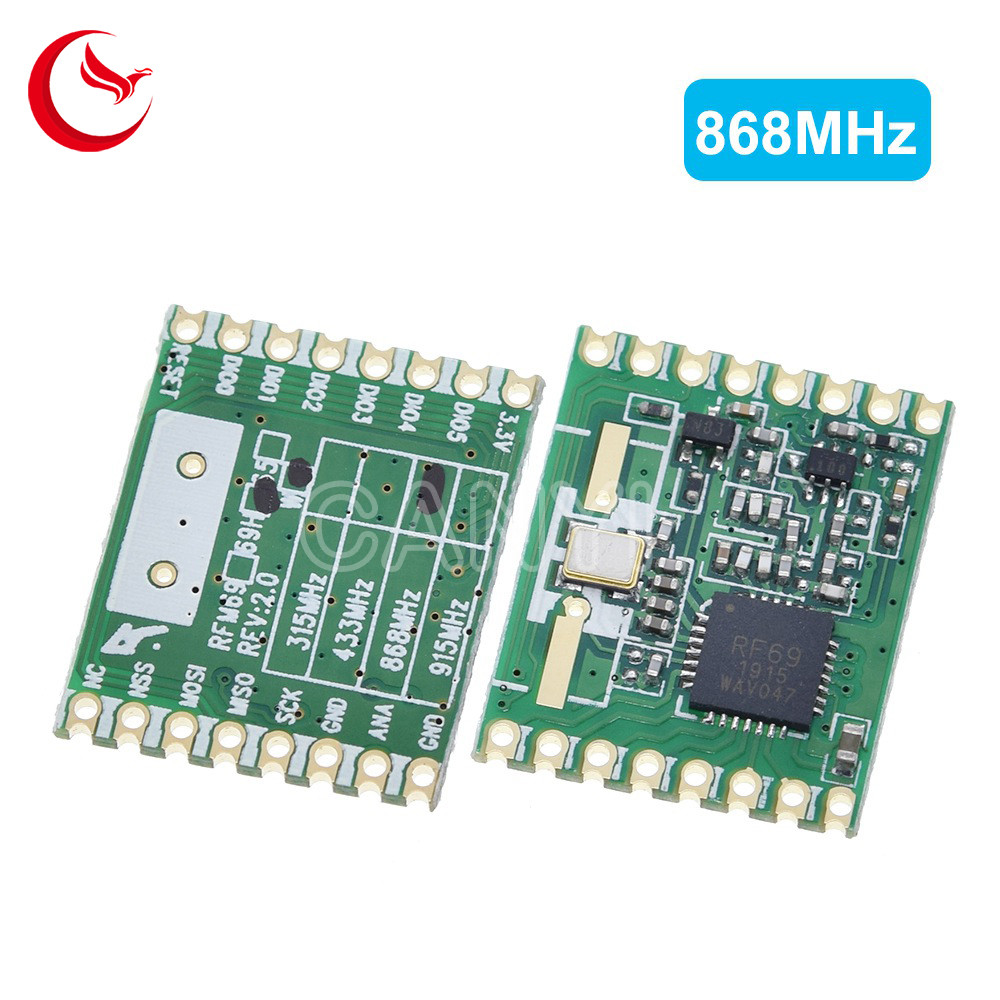

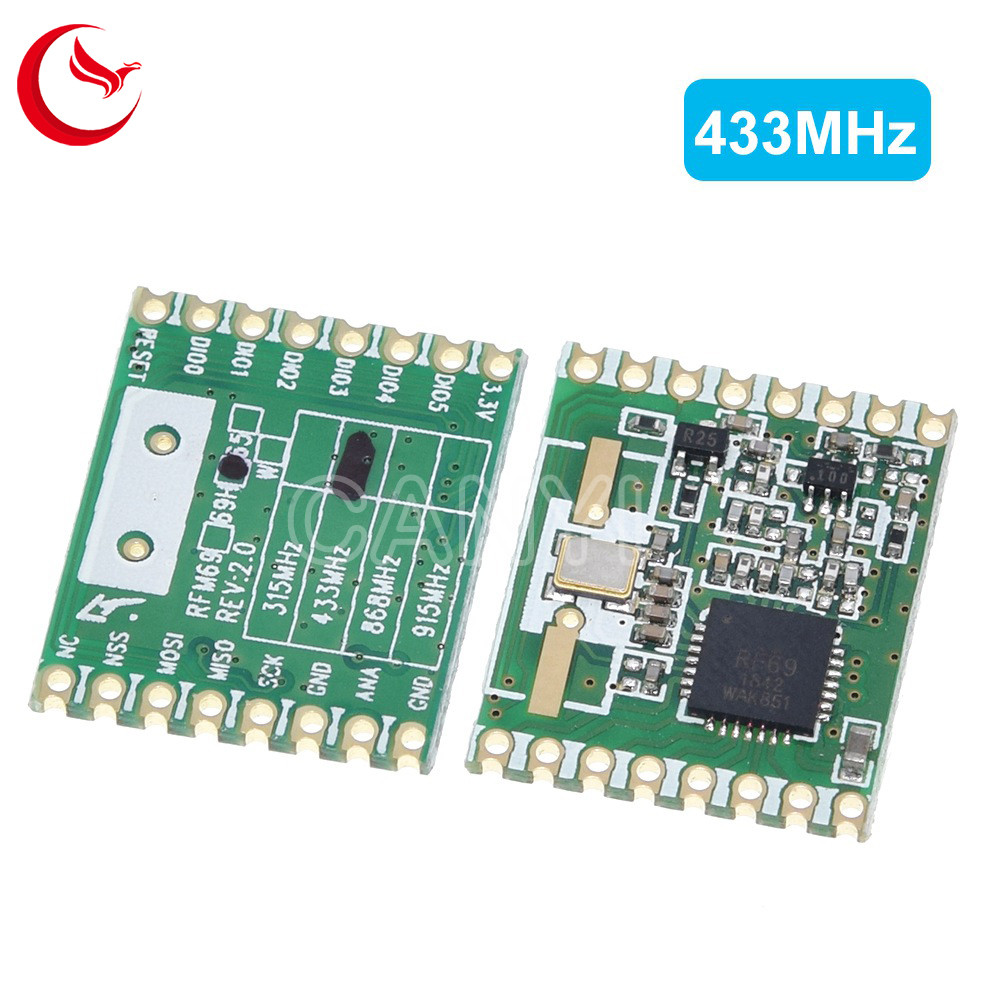

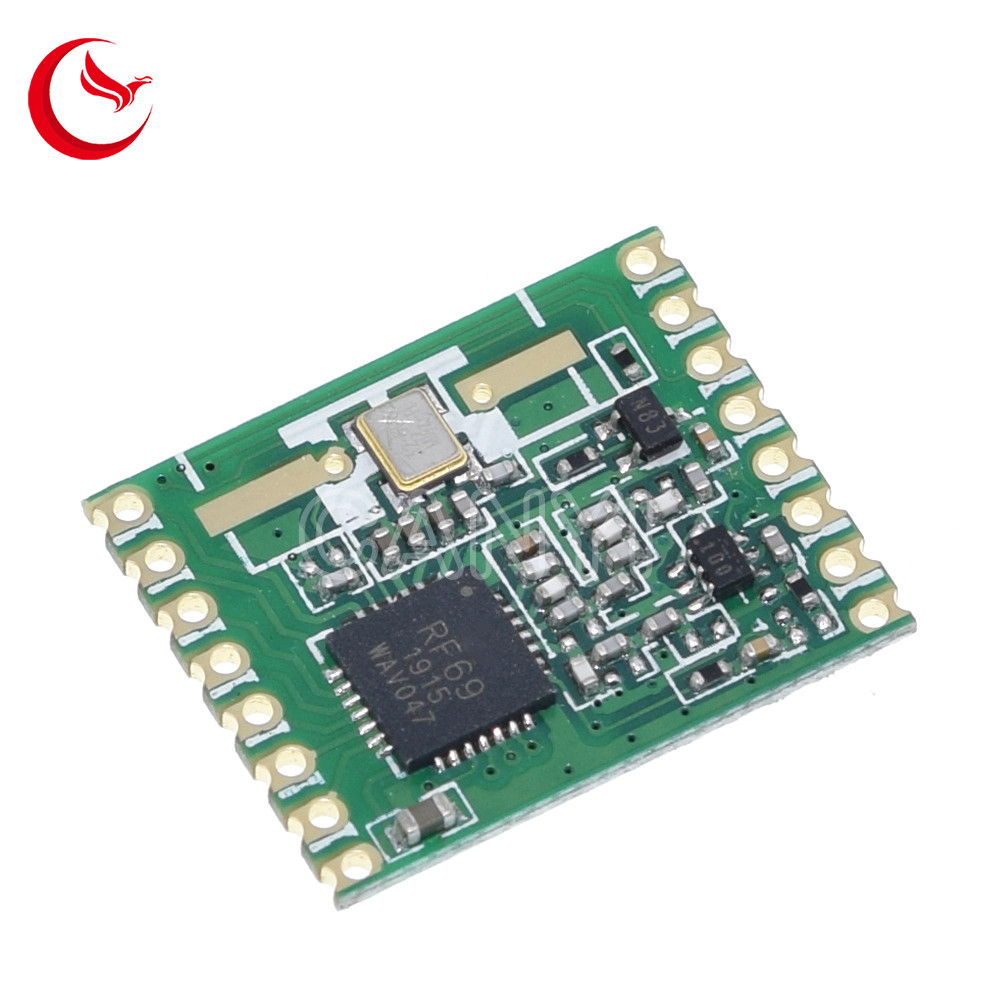

The RFM69HW is a high-power, highly integrated RF transceiver capable of operation over a wide frequency range, including the 315, 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands. Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69HW offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RFM69HW is optimized for low power consumption while offering high RF output power and channelized operation.
Specifications:
Operating Frequency: 433/ 868/ 915MHz
Modulation: FSK/ OOK
Transmit Power: 20dBm
Receiving Sensitivity: -120dBm (1.2kb/s in ook)
Transmission Rate: 300Kbps
Emission Current: 120mA
Receiving Current: 16mA
Standby Current: <0.1uA
Data Interface: SPI Interface
Communication Distance: 0-800 meters (1.2kb/s rate, visual distance)
Antenna Impedance: 50Ω
Operating Temperature: -40-85℃
Power Supply: DC 1.8V ~ 3.6V
Size: Approx. 19mm x 15.5mm/ 0.75" x 0.61"
