| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | Buzzer Module |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Supply Voltage: | 3.3V-5 V | Dissipation Power: | 3.3 V-5 V |
|---|---|---|---|
| OEM: | Can Customizable Products | ||
| High Light: | 3.3V Passive Buzzer Module,9012 Triode Passive Buzzer Module,Arduino DIY Kit PCB Assembly |
||

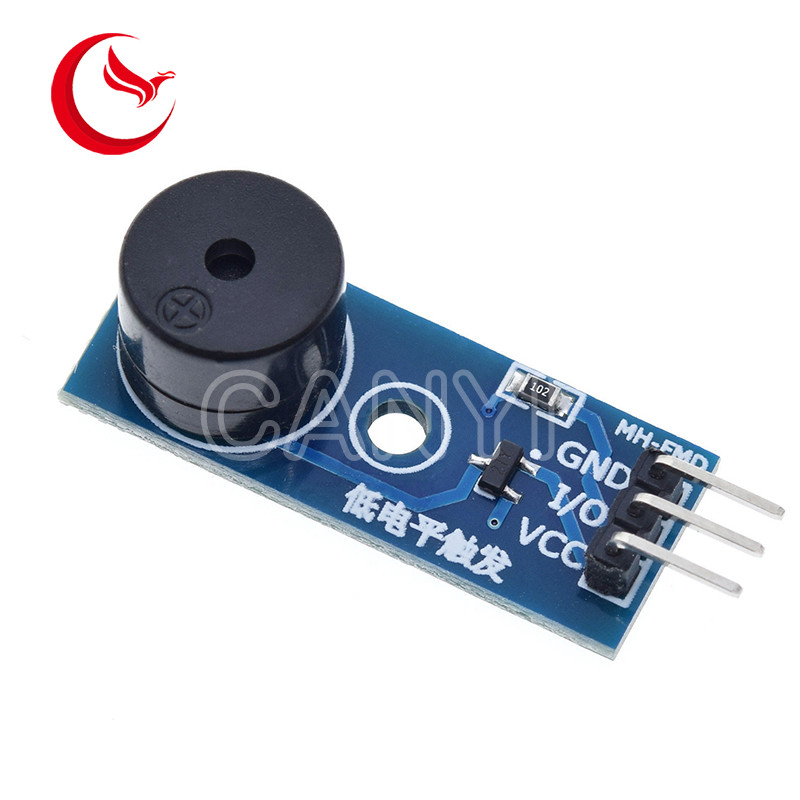

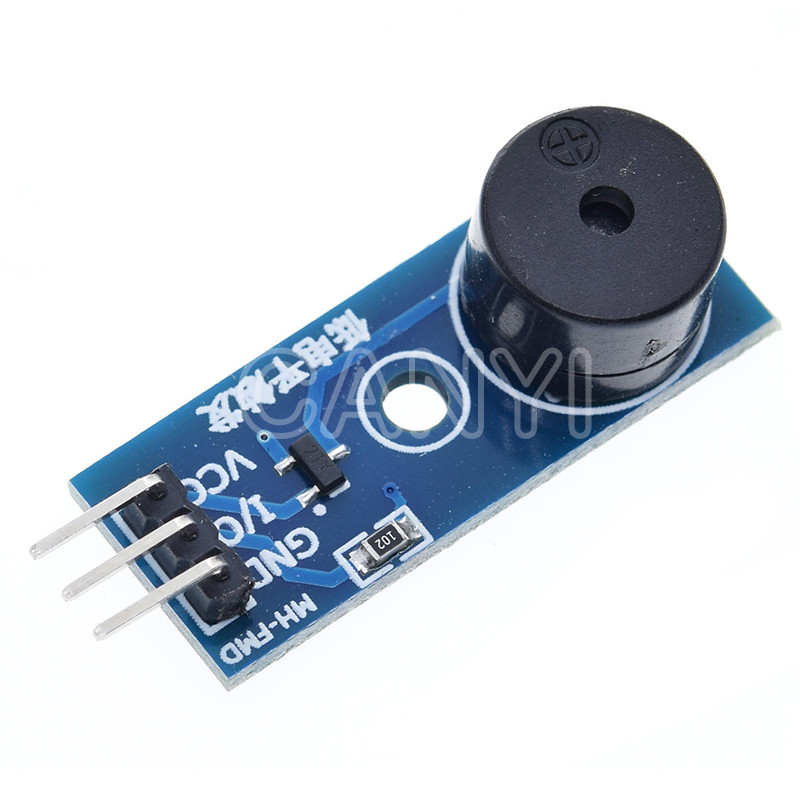

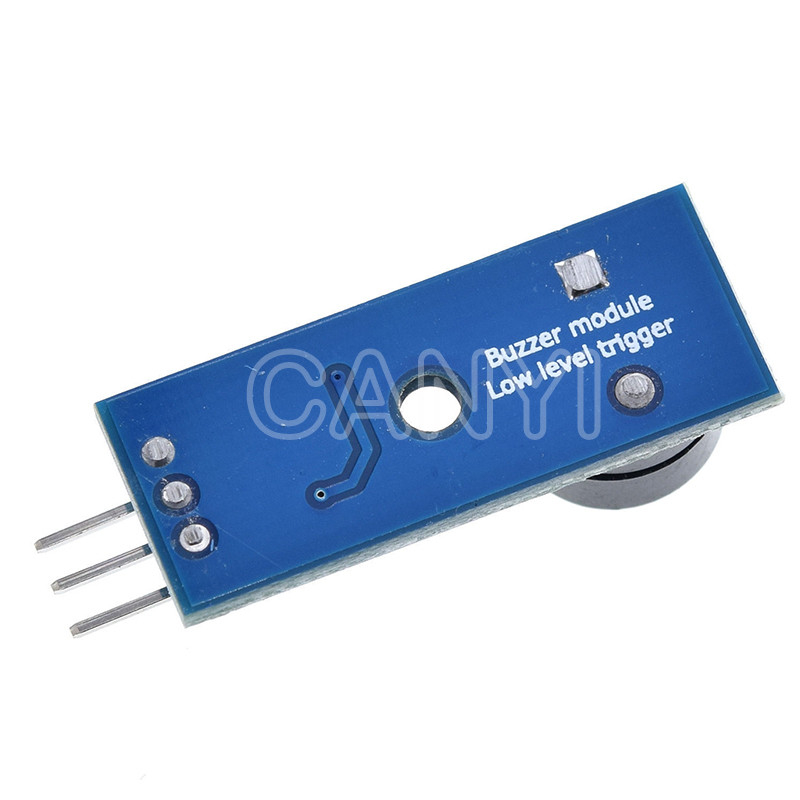

High Quality Passive Buzzer Module for arduino DIY Kit
The characteristics of the passive buzzer is:
1 passive internal without shock source, so if use dc signal can't make it.Must use 2 k ~ 5 k square wave to drive it.
For more than 2 sound frequency control, can make "m hair sola west" effect.
3 in some particular case, can reuse and LED a control.
The characteristics of the active buzzer is:
1 Active buzzer inside with shock source, so as long as the electricity will call.
2 Program control convenient, single chip microcomputer a high and low level can make the sound, and the passive buzzer is can't do.
Each weight is about 6 g.
Module description
1 module driven by 9012 triode
2 working voltage of 3.3 V to 5 V
3 sets of fixed bolt hole, convenient installation
4 small board PCB size: 3.3 cm X 1.3 cm
2 Module interface specification (3 wire system)
1 VCC external 3.3 V to 5 V voltage (which can be directly connected to 5 V microcontroller and 3.3 V microcontroller)
2 GND external GND
3 I/O external microcontroller IO port
