| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CSR8645 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | F-3188 | Bluetooth Specification: | V4.0 |
|---|---|---|---|
| Voltage: | DC3.3V-4.2V | OEM: | Can Customizable Products |
| High Light: | APTX Compression Speaker Amplifier Module,Bluetooth V4.0 Compression Speaker Amplifier Module,CSR8645 |
||

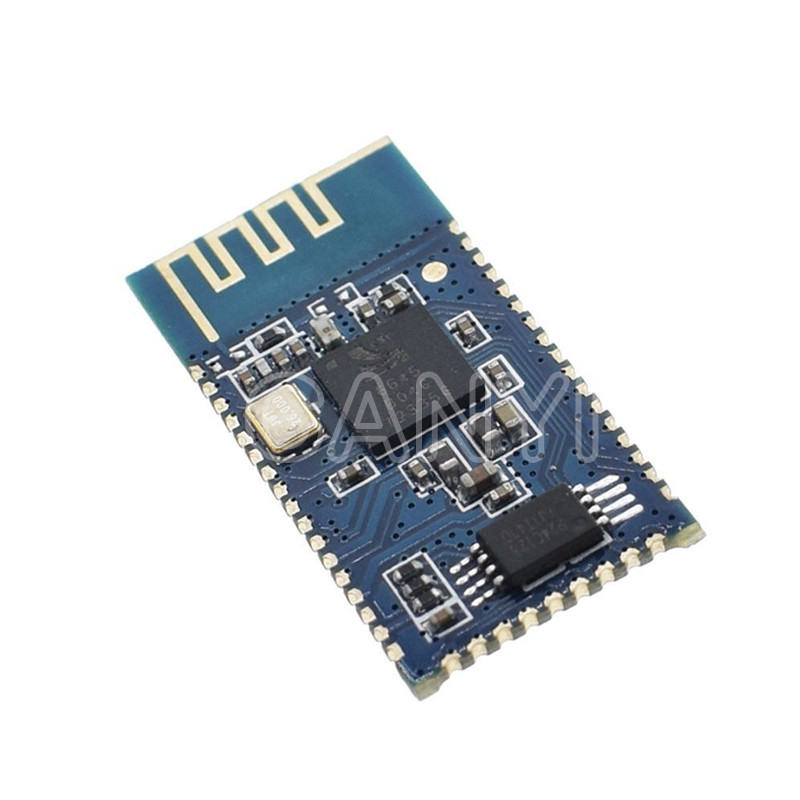

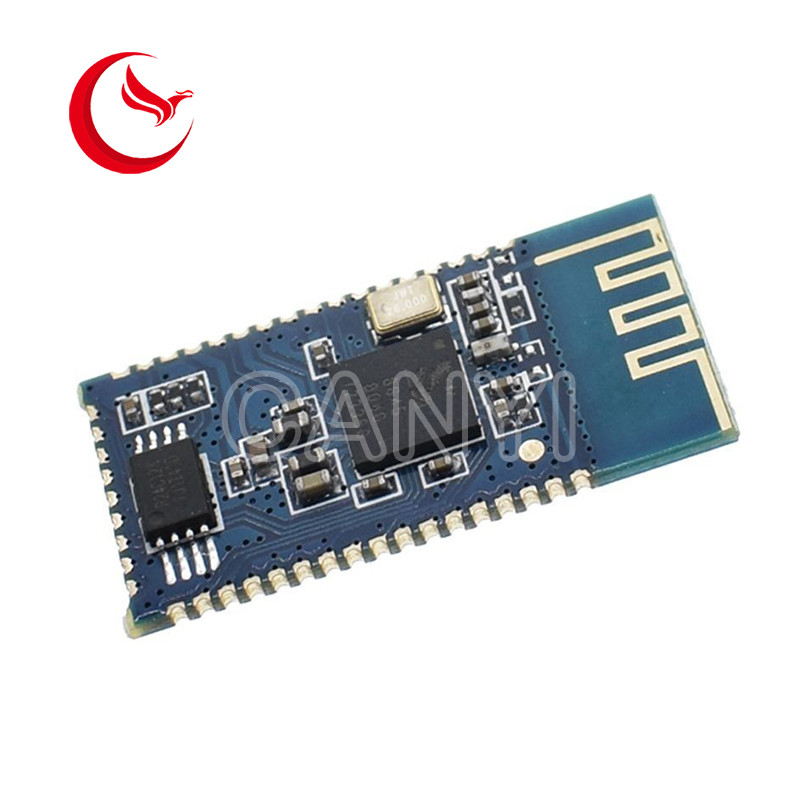

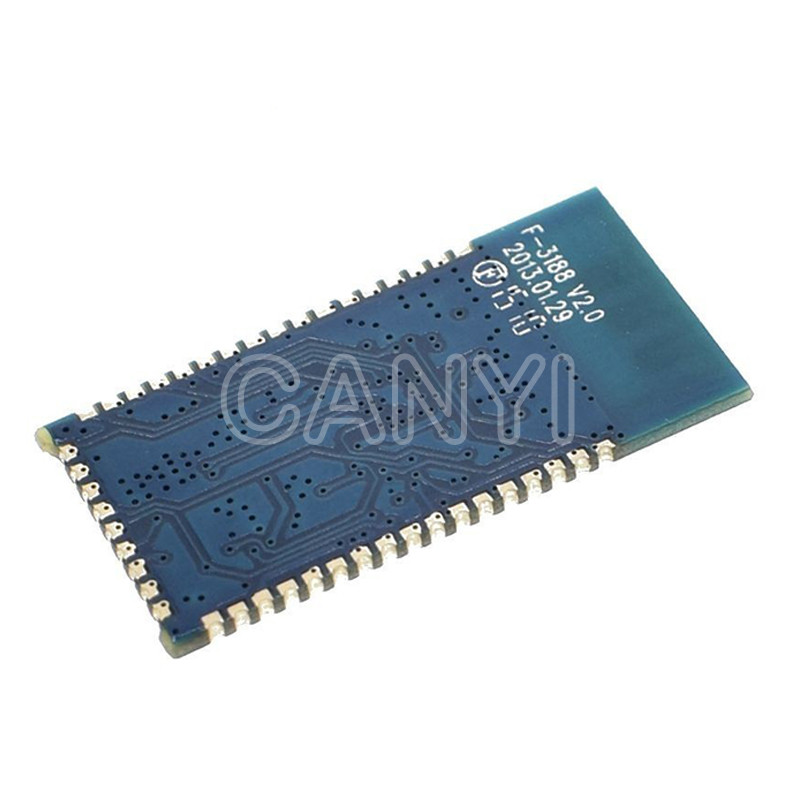

APTX high quality lossless compression speaker amplifier low power Bluetooth audio module
Feature
1.Type: F-3188
2.Bluetooth Specification: v4.0
3.Voltage: DC3.3V-4.2V
4.Bluetooth protocol: HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
5.Working Current: ≤30mA
6.Standby Current: <50uA
7.Temperature range: -40 Celsius ~ +80 Celsius
8.Wireless transmission range: > 10m
9.Transmission power: CLASS1/CLASS2/CLASS3,9dbm(MAX)
10.Sensitivity: -80dBm<0.1%BER
11.Frequency Range: 2.4GHZ ~ 2.480GHZ
12.External Interface: PIO/SPI/I2S/PCM/USB
13.Audio Performance: AAC/MP3/SBC/APTX
14.Audio SNR: ≥75dB
