| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | MQ Gas Sensor |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Model Number: | MQ Gas Sensor | Standard Package: | Black Wood |
|---|---|---|---|
| Detaction Gas: | Alcohol Steam | Detection Contration: | 0.4-4mg/L Alcohol |
| Size: | 32.3*20.3mm | ||
| High Light: | Methane Liquefied Gas Sensor Module,4mg/L Alcohol Gas Sensor Module,150mA MQ Gas Sensor |
||

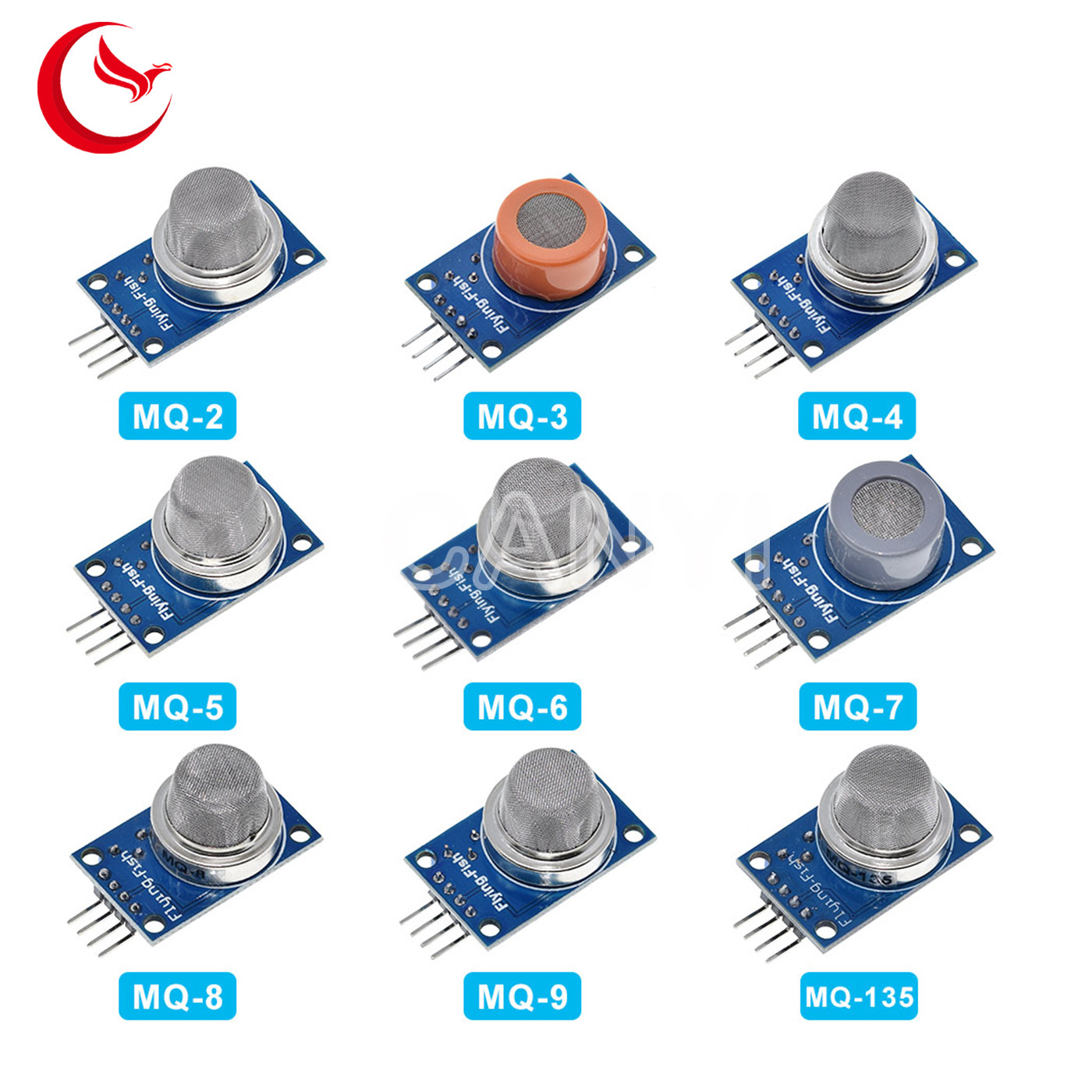

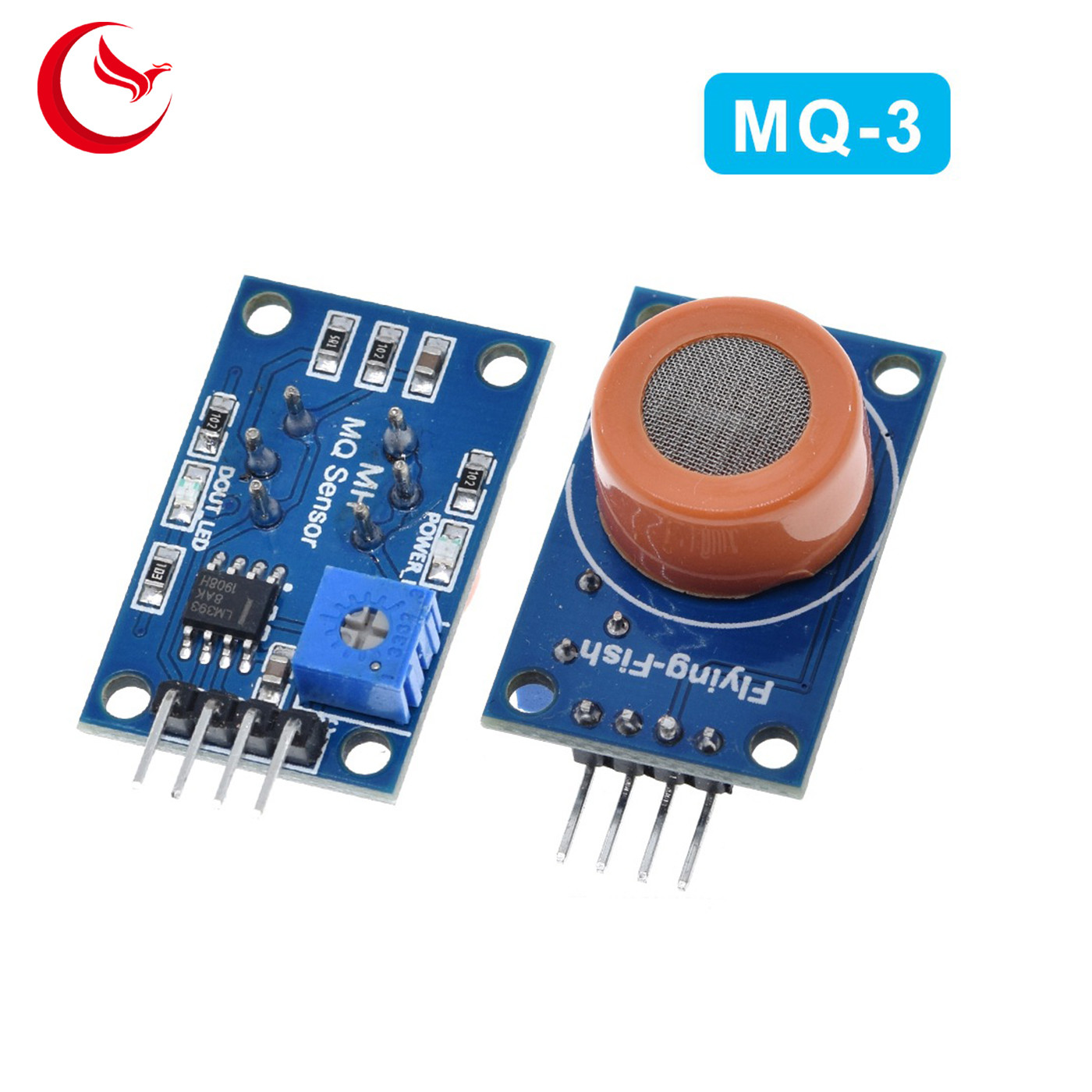

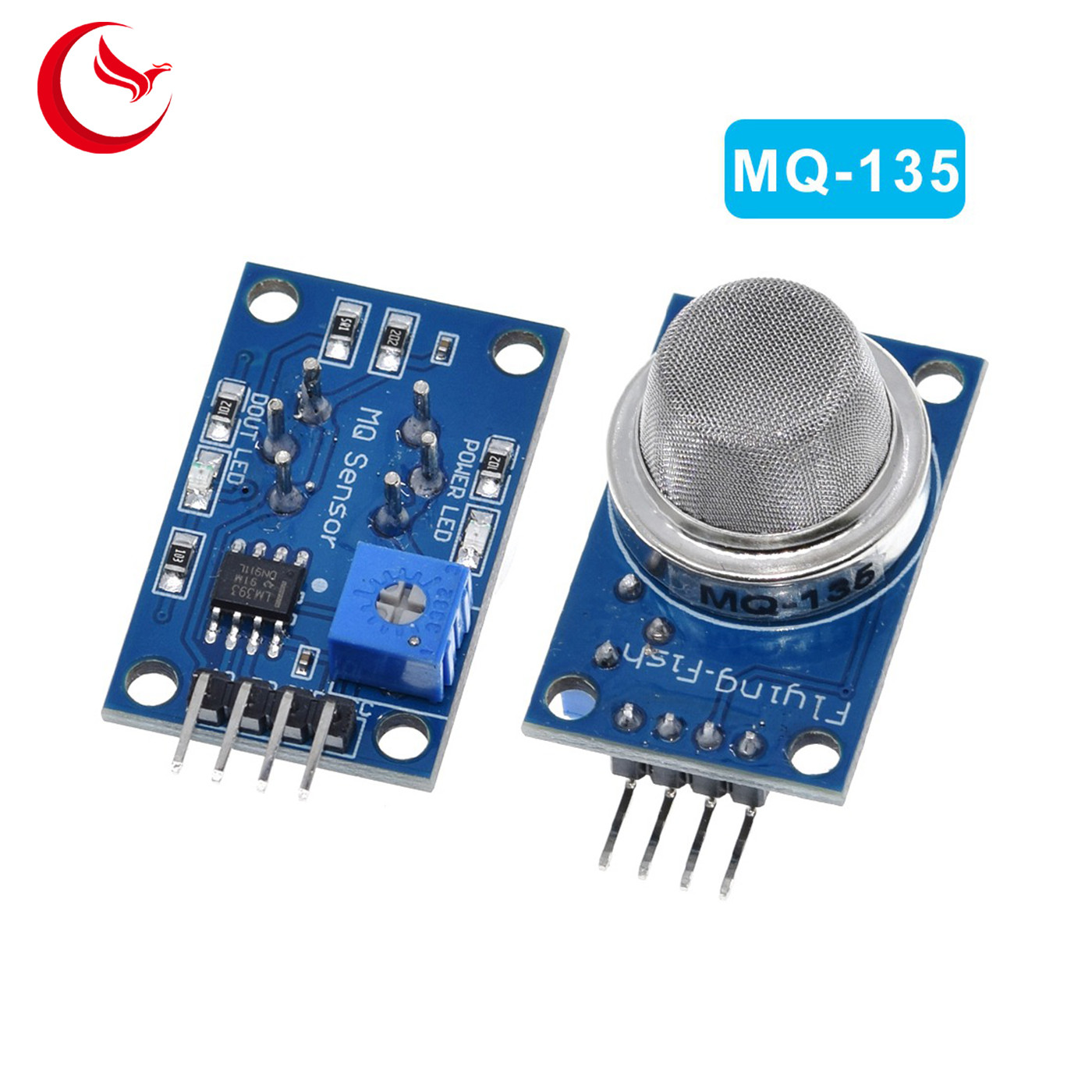

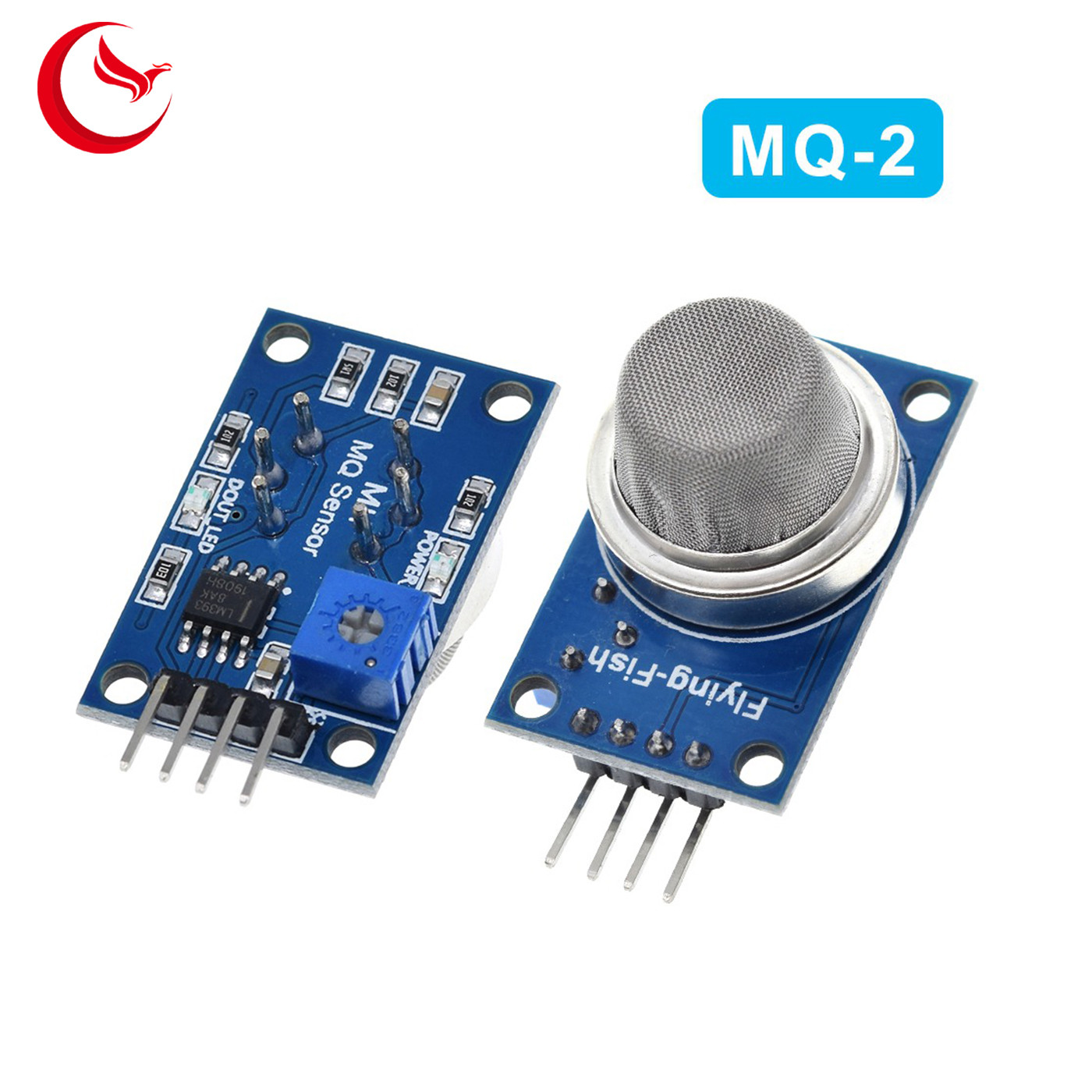

MQ-2 MQ-3 MQ-4 MQ-5 MQ-6 MQ-7 MQ-8 MQ-9 MQ-135 Detection Smoke methane liquefied Gas Sensor Module
Features:
Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .
Application:
Suitable for home or industrial hydrogen leak monitoring devices. Can not interfere with ethanol vapor, soot, carbon monoxide and other gases.
Wiring:
VCC: positive power supply (5V)
GND: power supply is negative
DO: TTL switching signal output
AO: analog signal output
NOTE:
After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normal
| Product number | MQ gas sensor | ||
| Product type | Semiconductor gas sensor | ||
| Standard package | Black wood | ||
| Detaction gas | Alcohol steam | ||
| Detection contration | 0.4-4mg/L alcohol | ||
| Standard ciruit conditions | Circuit voltage | VC | ≤24V DC |
| Heating voltage | VH | 5.0V±0.2V ACorDC | |
| Load Resistance | RL | Adjustable | |
| Characteristics of Gas sensors under standard test conditions | Heating resistance | RH |
31Ω±3Ω Room temperature |
| Heating power consumption | PH | ≤900mW | |
| Sensitive body surface resistance | RS | 2KΩ-20kΩ(in0.4mg/L alchol) | |
| Sensitivity | S | Rs(in air)/Rs(0.4mg/L alcohol)≥5 | |
| Concentration slope | α | ≤0.6(R300 ppm/R100 ppm alcohol) | |
| Standard test conditions | Temperature/humidity | 20℃±2℃;65%±5%RH | |
| Standard test circuit | VC:5.0V±0.1V | ||
| VH:5.0V±0.1V | |||
| Warm up time | Not less than 48 hours | ||
