ESP8266 ESP-12E UART Wireless Development Board For Arduino UNO R3

Basic Information
Place of Origin: Guangdong, China
Brand Name: CANYI
Certification: RoHS
Model Number: ESP8266 ESP-12E
Minimum Order Quantity: 3000pcs
Price: Negotiated
Packaging Details: Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Delivery Time: 10-15 days
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 15,000,000PCS Per Day
Detail Information
Type: Electronic Products Board Size: 68.7×53.2mm
OEM: Can Customizable Products
High Light:

ESP8266 Wireless Development Board

,

Arduino UNO R3 Wireless Development Board

,

ESP8266 ESP-12E


Product Description

                    ESP8266 ESP-12E UART WIFI Wireless Shield Development Board For Arduino UNO R3 Circuits Boards

PARAMETERS:

  • The standard pin interface spacing is fully compatible with Arduino Uno and Mega. (Except for standard size arduino, such as Nano, Mini)
  • Using advanced 3.3V power chip (the same as the power chip of the official CC3000 expansion board), the 3.3V provided in Arduino board is more accurate, and the expansion board does not need additional power supply.
  • Introduce a WiFi module power supply maintenance interface (GND, 3V3, 5V).
  • On board ESP8266-12 industrial stable serial WiFi module, using enhanced PCB antenna, the signal is better.
  • The operation mode of ESP8266-12 industrial stable WiFi module (such as operation mode and upgrade mode) can be switched quickly by dial switch, and serial chip can be integrated to write firmware quickly.
  • Built-in 5V to 3.3V TTL level converter prevents high-voltage Aduino TTL level from harming WiFi module. (General modules are not available).
  • On board ESP8266-12 industrial stable WiFi module has metal shielding cover and strong anti-interference.
  • AlI interfaces of industrial-grade stable WiFi module ESP8266-12E on board are introduced with standard spacing, which is convenient for developers to develop in depth.
  • With superimposable design, other modules can be accumulated on it for easy use.
  • On-board four LED display ESP8266 status, respectively, PWR, DFU, AP,STA, operating mode at a glance.

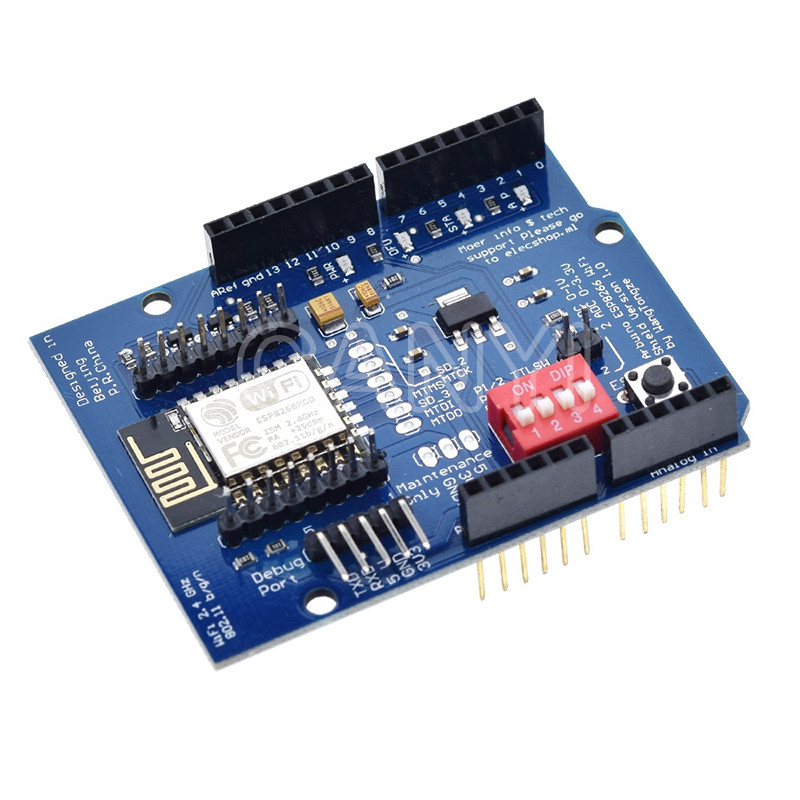

ESP8266 ESP-12E UART Wireless Development Board For Arduino UNO R3 0

ESP8266 ESP-12E UART Wireless Development Board For Arduino UNO R3 1

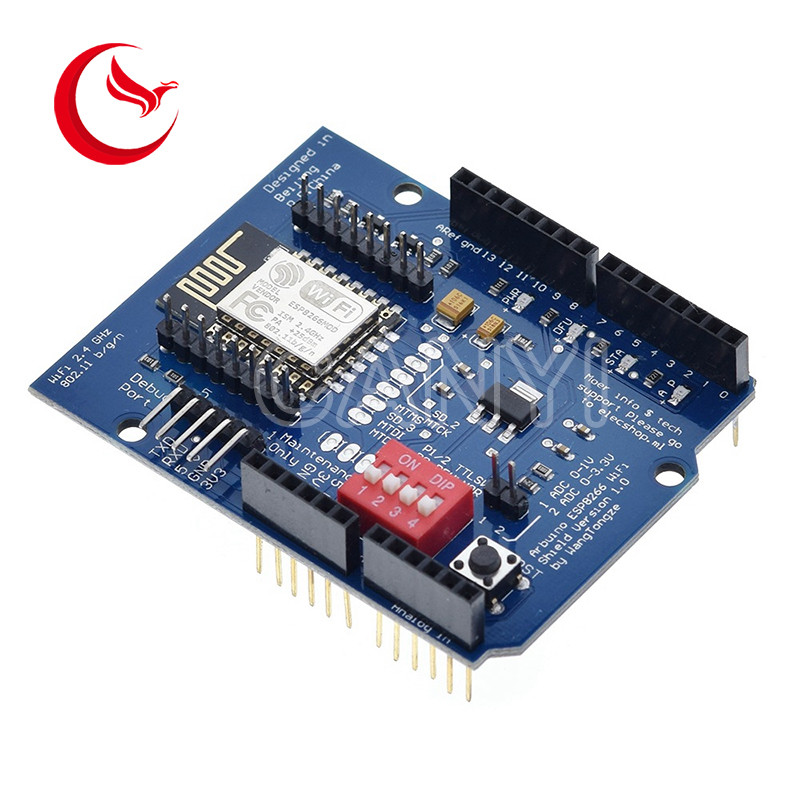

ESP8266 ESP-12E UART Wireless Development Board For Arduino UNO R3 2

Choose Canyi to get more benefit:

  • Supplying to Changdian, Xinghai, Tuofeng, Leshan, Roma and Anshi
  • Competitive price and save your time
  • Over 10 years work experience technical service team
  • Mix order accepted and free sample

Our fast delivery time can be in just one to two weeks for urgent demands. Providing customers with flexible, safe and efficient logistics services.For a electronic information base component supplier, contact us today.
