| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 3A Motor Speed Control |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Dissipation Power: | 80W | Supply Voltage: | 6V-28V |
|---|---|---|---|
| OEM: | Can Customizable Products | ||
| High Light: | 80W PWM Speed Controller Regulator,28VDC Speed Controller Regulator,12V 3A DC Motor Speed Controller |
||

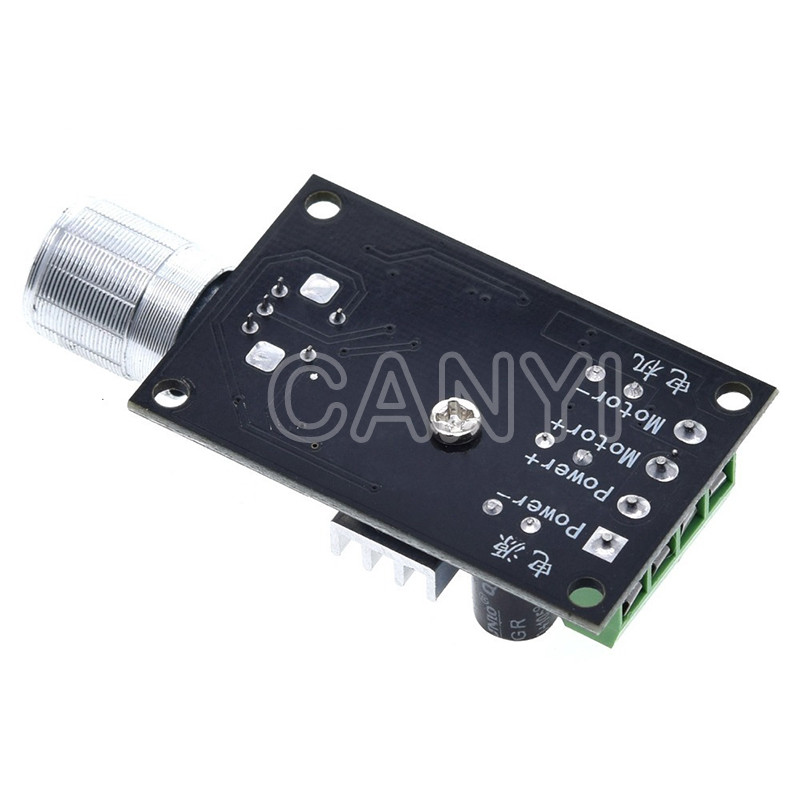

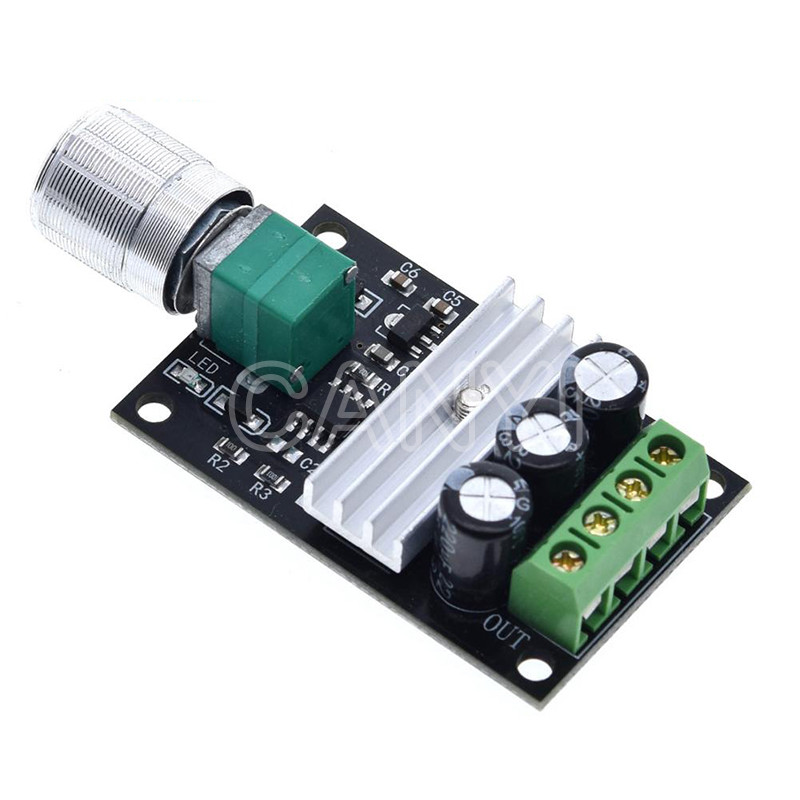

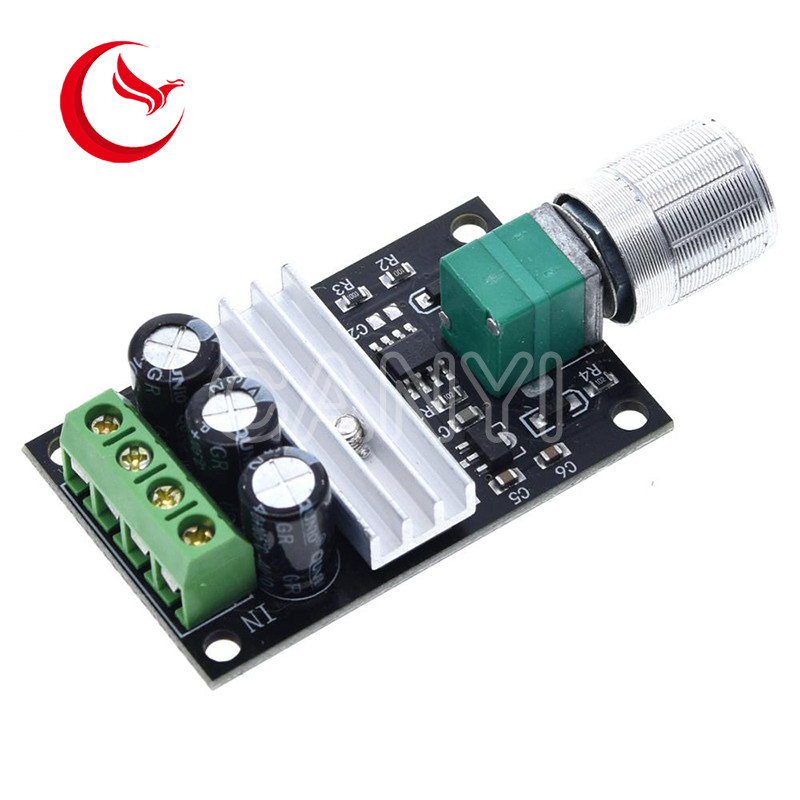

DC 6V 12V 24V 28VDC 3A 80W PWM Motor Speed Controller Regulator Adjustable
Description:
This DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
Main technical parameters:
- Input supply voltage:6V-28VDC
- The maximum output power: 80W
- The maximum continuous output current :3A
- Duty Cycle adjustable:5%-100%
Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection.
Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.
