| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | Step-down Power Module |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 5-7days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | Step-down Power Module | Application: | Power Supply Module |
|---|---|---|---|
| Operating Temperature: | -40°-+85° | Supply Voltage: | 5V-24V |
| Dissipation Power: | 3A/5A | Is Customized: | Yes |
| High Light: | 500KHz Step Down Power Module,12V 5A Step Down Power Module,8A DC-DC Power Supply Module |
||

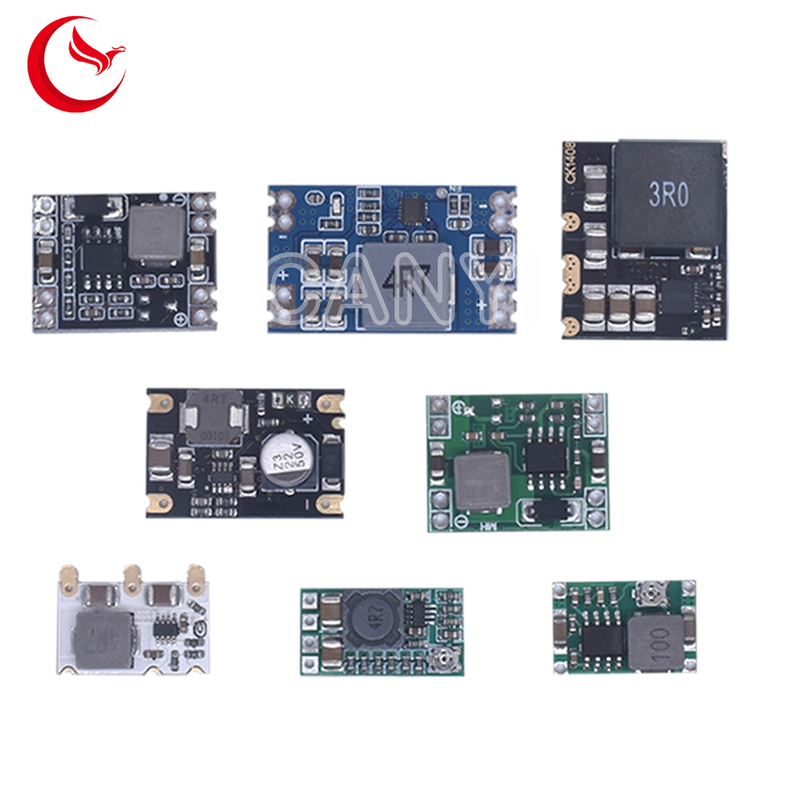

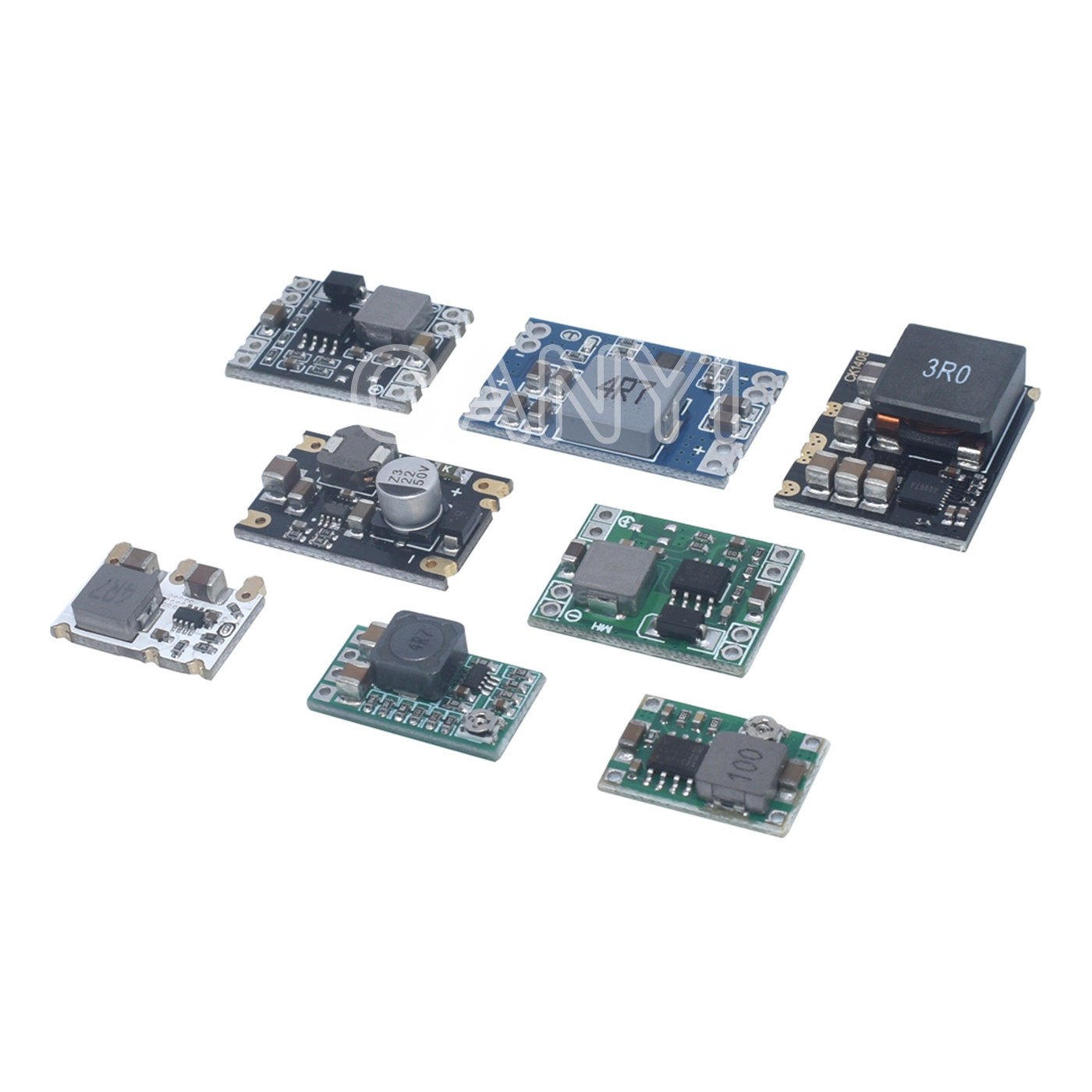

3A 5A 8A DC-DC Buck Step-down Power Supply Module 5V-12V 24V to 5V 3.3V 9V 12V high output
Type:MINI560 step-down power module
| Model Name | Mini560 (MINI DC-DC step down module) | |||
| Version | 3.3V | 5V | 9V | 12V |
| Output voltage | 3.3V | 5V | 9V | 12V |
| Input voltage | 5-20V | 7-20V | 11-20V | 14-20V |
| Output current | <5A | <5A | <4A | <4A |
|
Long-distance>4A Requires hear dissipation |
Long-distance>3A Requires hear dissipation |
|||
| Differential pressure | >1.7V | >2V | >2V | >2V |
| Operating frequency | 500KHz | |||
| Conversion efficiency | 99%(MAX) | |||
| Operating temperature | -40℃ to +85℃ | |||
| External dimensions | 29*18*5.4(L*W*H)(mm) | |||
| Module nature | Non-isolated buck | |||
| Rectification method | Synchronous rectification | |||
| Output V/I | Input V(V) | Input I(A) | Input V(V) | Input I(A) |
Efficiency % |
Chip temperature(no heat disspation at room temperature)(℃) | |
| 3.3V | 3.3V/2A | 12 | 0.56 | 3.28 | 2 | 97.6% | 35.4 |
| 3.3V/4A | 12 | 1.15 | 3.27 | 4 | 94.8% | 54.8 | |
| 3.3V/5A | 12 | 1.45 | 3.26 | 5 | 93.7% | 69.5 | |
| 5V | 5V/2A | 12 | 0.85 | 5.00 | 2 | 98.0% | 35.8 |
| 5V/4A | 12 | 1.72 | 4.99 | 4 | 96.7% | 53.6 | |
| 5V/5A | 12 | 2.17 | 4.98 | 5 | 95.6% | 62.1 | |
| 9V | 9V/2A | 12 | 1.54 | 9.16 | 2 | 99.1% | 36.8 |
| 9V/3A | 12 | 2.32 | 9.15 | 3 | 98.6% | 42.3 | |
| 9V/4A | 12 | 3.1 | 9.14 | 4 | 98.3% | 56.8 | |
| 12V | 12V/2A | 18 | 1.37 | 12.10 | 2 | 98.1% | 39.6 |
| 12V/3A | 18 | 2.05 | 12.12 | 3 | 98.5% | 52.7 | |
| 12V/4A | 18 | 2.74 | 12.10 | 4 | 98.1% | 67.2 |
Type: MINI 360 step-down power module
Size: approx.17 X 11 x 3.8mm
Input voltage: 4.75V- -23V
Output voltage: 1.0V-17V
Current output: peak 3A, 1.8A long time
Transfer efficiency: 96% ( highest)
Swtiching frenquency: 340KHz
Output ripple: 30mV(no-load)
Load regulation:0.5%
Voltage regulation:2.5%
Operating temperature: -40-+85
Color: show as pictures
Non- isolated step- down
Synchronous rectification
Features: use of integrated forming power inductor and synchronous rectifier control chip.It's smaller and more efficient
Type:3A adjustable voltage regulator power supply module pressure drop plate
Input Voltage:4.5-28V
Output voltage:0.8-20V
Output current:3A(Max)
Efficiency:92%(Max)
Switch Frequency:1.5MHz(Max),1MHz(Typ)
Operating Temperature:-20 to 85℃
Size:22*17*4mm
Type:DC-dc 3A step-down power modele(3.3V/5V/9V/12V fixed input)
IN-:INPUT Negative electrode
IN+:INPUT Positive electrode
OUT+:OUTPUT Positive electrode
OUT-:OUTPUT Negative electrode
| Product model | 3A DC-DC buck module | ||||
| Output voltage | 3.3V | 5.0V | 9.0V | 12.0V |
Adjustable 2.0-20v |
|
Input voltage range (Vin-Vout≥2V) |
5.3-26V | 7-26V | 11-26V | 14-26V | 4.8-26V |
| Long-term work MAX current | 2A | 1.8A | 1.2A | 0.8A | Within 10W |
| MAX output current |
3A(MAX) Long-term work control within 10W |
||||
| Conversion efficiency |
96%(MAX) (Vin-Vout≥2V)smaller,more high efficiency |
||||
| Output ripple | ≤30mV | ||||
| Working Temperature | -40 to 85℃ | ||||
| Size | 22.3*17*4.2mm(L*W8H) | ||||
Note:
IN-:INPUT Negative electrode
IN+:INPUT Positive electrode
OUT+:OUTPUT Positive electrode
OUT-:OUTPUT Negative electrode
Type:MINI high power DC buck module
| Main parameter | Minimum | Typical value | Maximum | Remarks |
| Input voltage(Vac) | 6 | - | 14 | V |
| Working frequency(Hz) | - | 500 | - | KHz |
| Output power(W) | 0 | - | 40 | W |
| Working temperature(℃) | -40 | +25 | +85 | ℃ |
| Static power(mA) | - | - | 200 | <200uA |
| Output voltage(Vdc) | 4.95 | 5.1 | 5.15 | V |
| Persist current(mA) | 0 | - | 8 | A |
| Ripple noise(mV) | 10 | - | 30 | <30mV |
| Maximum efficiency(n%) | 87 | - | 97 | % |
| Over current protaction(%) | 12 | - | A | |
| Short circuit protection(%) | - | - | - | No |
| Working humidity(RH%) | 20 | - | 90 | No-condersing |
| Storage temperature(℃) | -10 | +25 | +50 | Dry storage at normal temperature |
| Storage humidity(RH%) | 10 | - | 90 | Dry storage at normal temperature |
Type:Wide input voltage DC-DC buck module
Input voltage range: 6V- 36V
Output voltage: 3.3V/5V
Output current: 0- -2A
Voltage accuracy:1%
Output ripple noise: less than 30mV (0.5- -2A load)
Conversion efficiency: more than 85% (5V2A output)
Static current: less than 50ua
Shutdown current: less than 2ua
Working environment: 0° - 70.
Output short circuit protection
Over temperature protection of the whole machine
The EN pin voltage is higher than 1.5V to open the module output.EN pins grounded or suspended close the output and EN pins grounded or suspended close the output. Short EN pin to IN+ when module output is normally on;When the module switch needs to be controlled by SCM, connect EN pin to I0 pin of SCM, and IO pin is set as push- pull output.
Type:Mini DC-DC buck module
Input voltage: 4.5V-16V
Output voltage: 3.3V I 5.2V
Buck efficiency: up to 98%
Output current: 0~4A
Voltage accuracy: < 1%
L oad regulation: <0.5%
Output ripple noise: < :20mV
Static power consumption: <500uA
Working environment:- -40° ~ 85.
Size: 13* 18.6 * 5mm
Preset two kinds of voltage, the default output 5.2V (to the mobile phone and other electronic products can make up the line loss when charging to achieve greater charge current), the use of electric iron disconnect the connection can be adjusted to 3.3V output voltage. Leads to the EN control pin the default high-level output, no output when the low level.Leads to FB feet, with professional knowledge of the user Can be an external resistor to change the output voltage.
Type:Mini step-down power module,non-isolated step- -down module (BUCK)
synchronous rectifier
Input voltage: DC 4.5- -24V
Output voltage: integrated adjustable and fixed output, the back can choose a fixed output voltage
Adjustable range (0.8- -17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (Please note that full cooling), the actualtest input 12V 1.5A output less heat without special treatment.
Conversion efficiency: up to 97.5% (6.5 turn 5V 0.7A)
Operating temperature:
Industrial grade (- -40 C to + 85 C ) (the higher the temperature, the smaller the output power)
Output Overvoltage Protection: None
Full load temperature rise: 40C
Static current: 0.85mA
Load regulation:1%
Voltage regulation:0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection:Do not short- circuit a long time
Input reverse polarity protection:None, input reverse polarity protection diode
Enable control:Yes, high work, low stop working, high level 2- -5V, a low level of about OV. The default input with internal pull-up to the positive electrode.
Connection: Welding
Input: Welding
Output: welding / pin
Welding hole spacing: 2.54 mm
