| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 3A USB Output |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 3-5days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | USB Charger Module | Max Output Current: | 3A |
|---|---|---|---|
| Long Time Use: | 2.1A | Input Voltage: | DC 6-24V |
| Output Voltage: | 5.1-5.2V | Switch Frequency: | 500KHz |
| Full Load Temperature: | 30 Celsuis | ||
| High Light: | 500KHz USB Charger Module,5V 3A USB Charger Module,0.85mA DC Buck Step Down Converter |
||

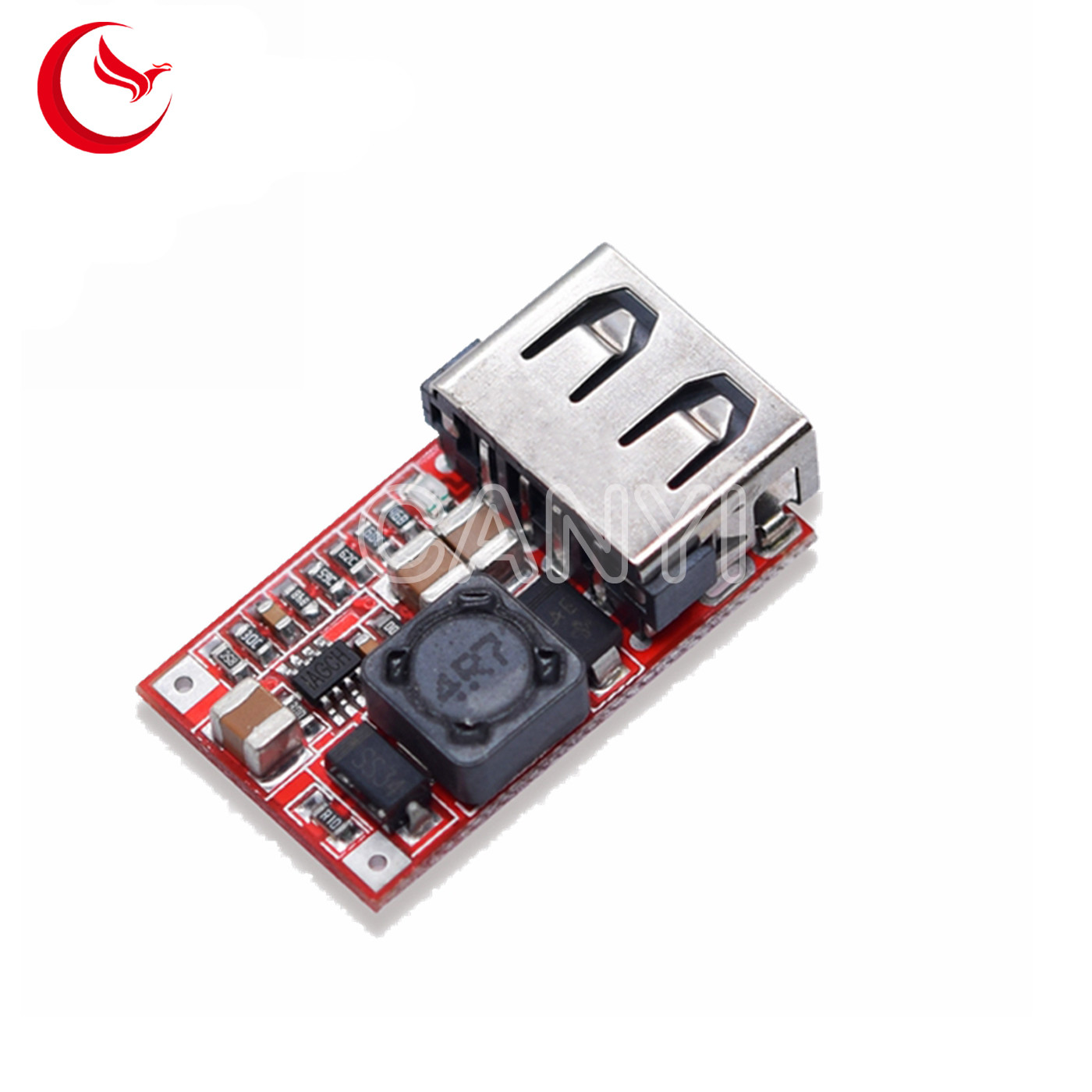

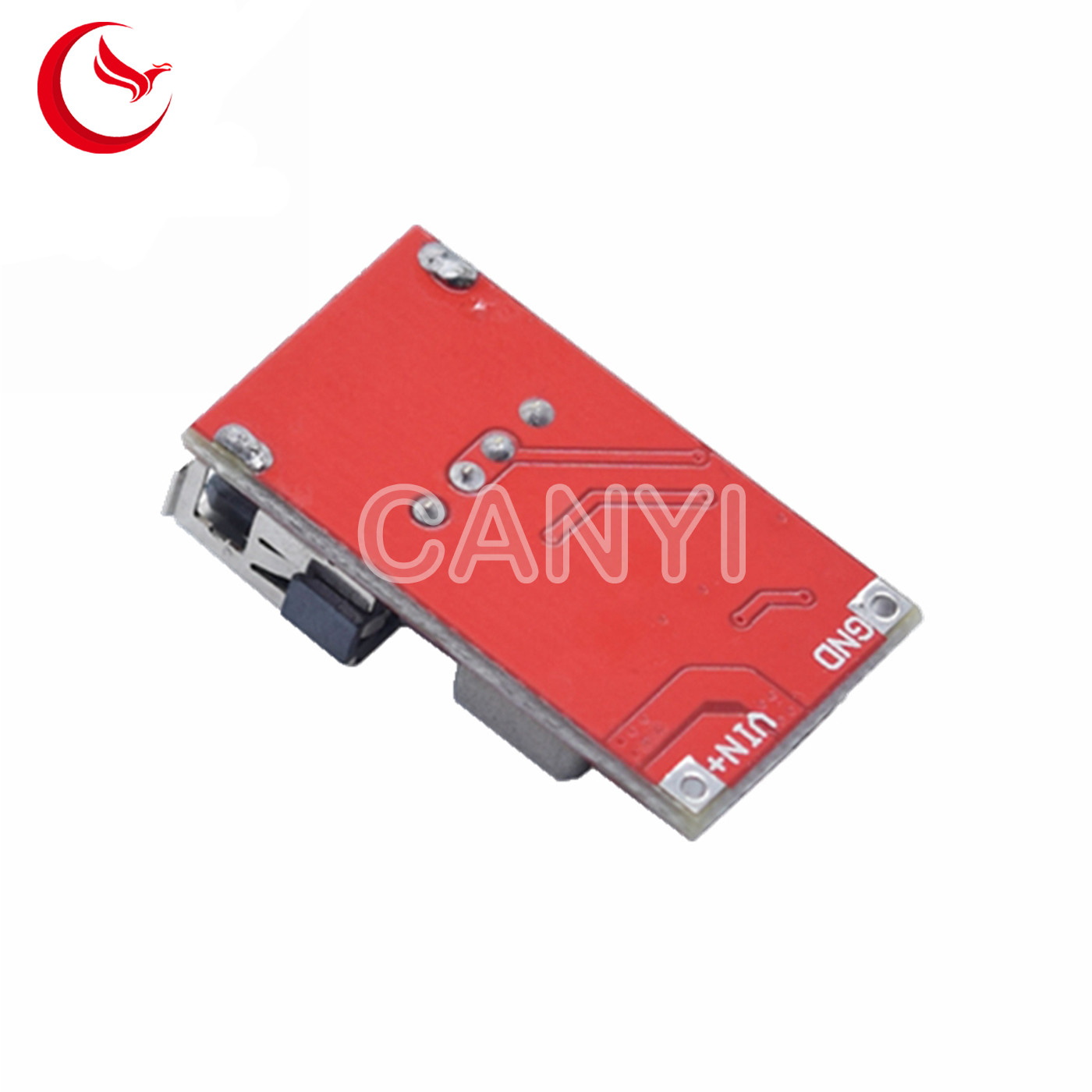

6-24V 12V or 24V to 5V 3A CAR USB Charger Module DC Buck step down Converter 12v 5v power supply
Advantage:
Press Release:
1: The new United States imported chips, definitely not homemade chips, disassemble chip.
2: The maximum output current of 3A, the long-running 2.1A, sufficient margin.
3: The new design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, there is a risk of explosion tantalum capacitors). Now with the use of high-end large-size solid ceramic capacitor circuit (MCC) 3
4: Very low ripple, 12V switch 5V 3A only about 10 mV ripple many peers have reached 500 mV or greater, the device will cause an invisible injury, severe can cause fault or damage.
5: The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A when it reached 94%, unlike some peers only 60-70% efficiency . (Efficiency test removed the input reverse polarity protection diode and fuse drop).
6: Using flat copper inductors, maximize conversion efficiency. Reduce heat.
7: The whole network first with output overvoltage protection, input fuse has 1.5A, 5V output of 300W TVS has done a pressure pipe clamp protection, protect USB devices.
8: Using the latest USB identification circuit.
9: Short head gilded boundless USB, long service life, not ordinary USB interface can be compared.
10: Output voltage indicator (red)
11: Ultra-small size, 26.4 (L) * 15 (W) * 7.4 (H) mm, the smallest of the whole network.

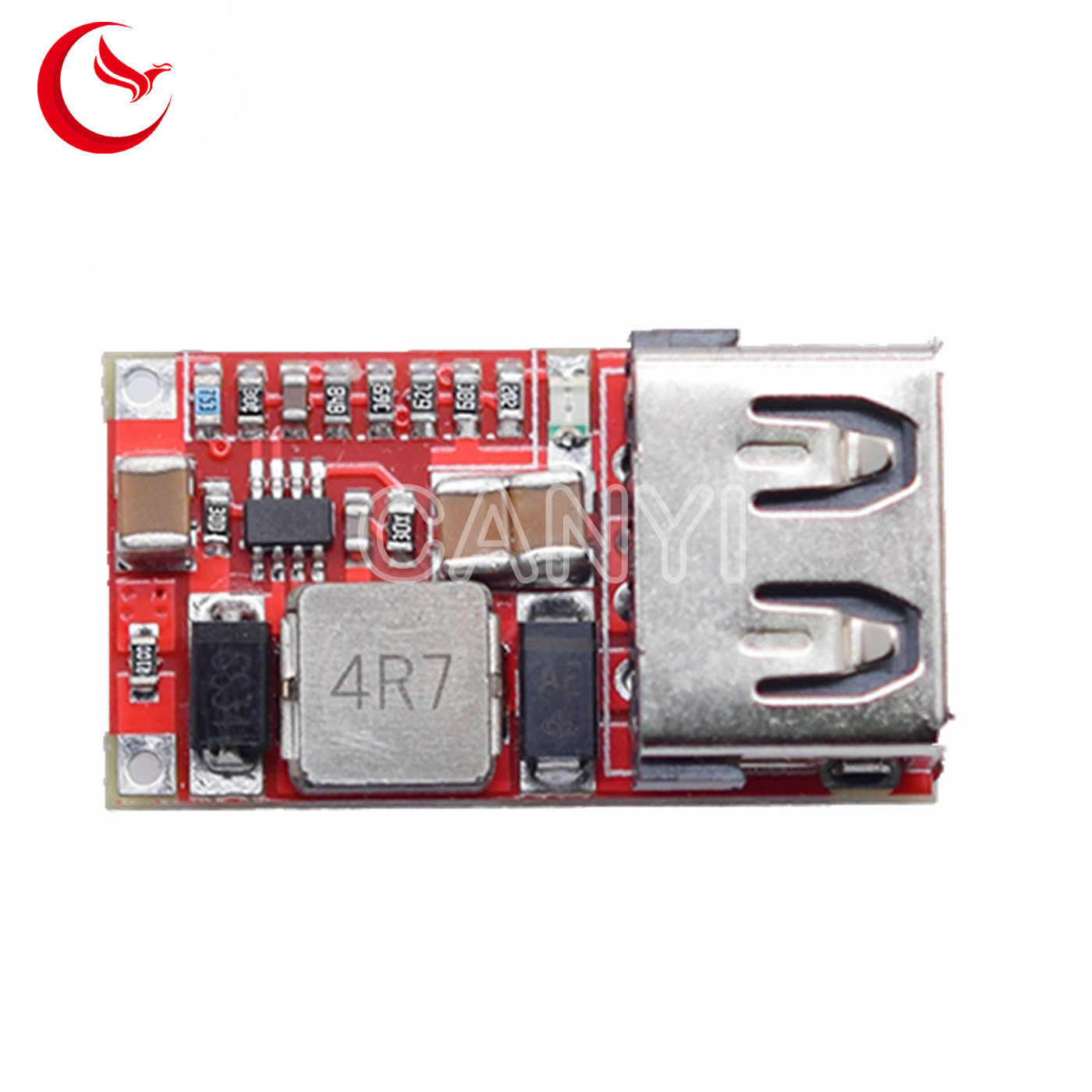

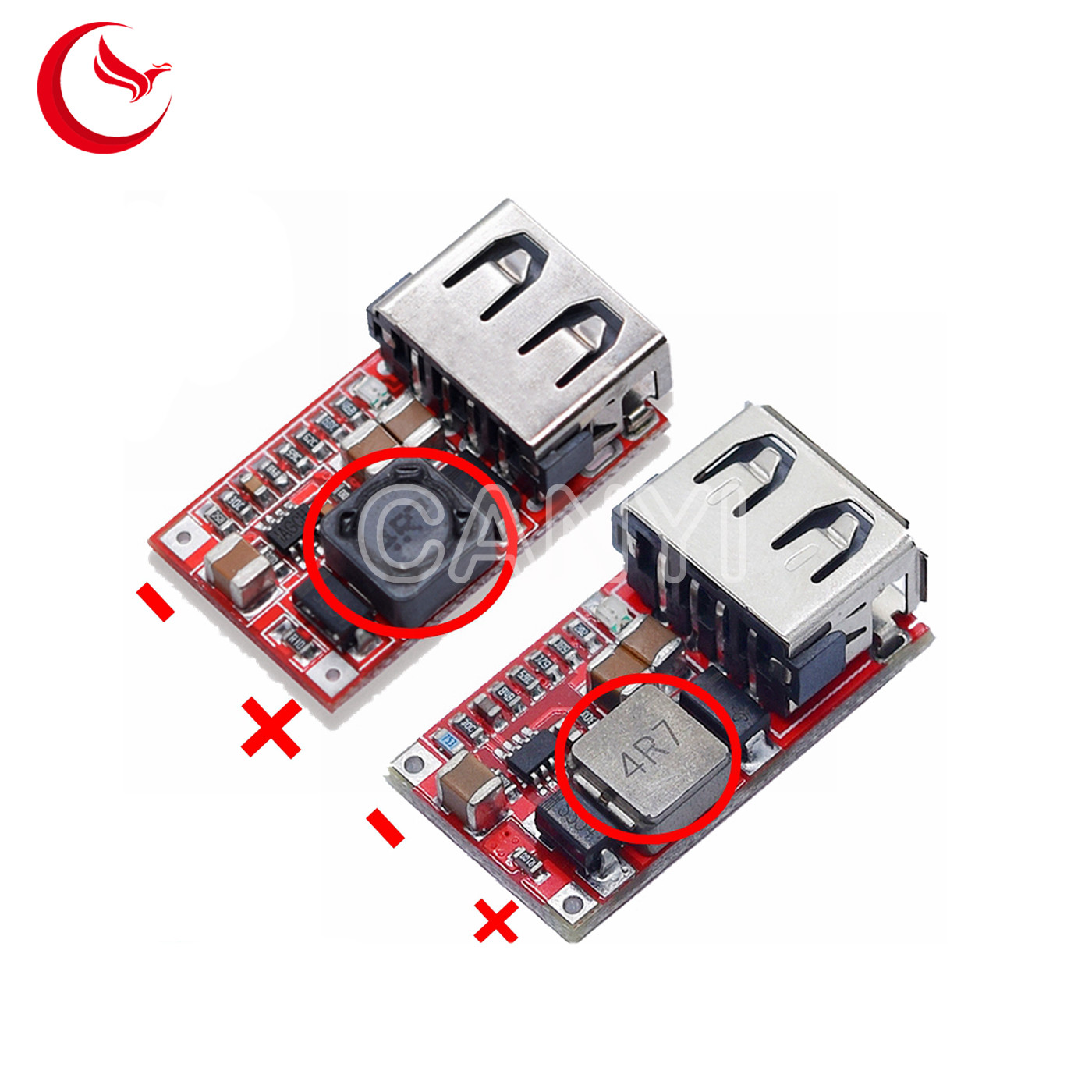

12: inputs with reverse polarity protection diode, the positive and negative input will not reverse damage (We tested the efficiency of ignoring the input diode and fuse drop)
13: ultra-low quiescent current, 0.85mA quiescent current. Connected to the car battery without adding switches can be connected in a cigarette lighter line, or ACC power line cord.
Features
New main chip made in USA.
The max output current 3A, long time use 2.1A, enough use.
New design, 3 solid state ceramic capacitors (MLCC).
Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%.
Flat copper inductor, improve conversion efficiency
With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device.
Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc.
High quality USB port.
Output voltage indicator (RED).
Input with reverse polarity protection diode, will not damage when input connect incorrect.
Ultra-low static current, 0.85 mA only. Do not need to add switch when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable.
Module Properties: non-isolated buck module (BUCK) synchronous rectification
| Input voltage | DC 6-24V |
| Output voltage | 5.1-5.2V |
| Output current | 3A MAX |
| Conversion efficiency | can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value) |
| Switch frequency | 500KHz |
| Output ripple | 10mV around (12V to 5V3A) 20M bandwidth |
| Output indicator | Output voltage indicator is red |
| Operating temperature | Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power) |
| Output overvoltage protection | Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection. |
| Full load temperature | 30 Celsuis |
| Static current | 0.85 mA |
| Load regulation | ± 1% |
| Voltage Regulation | ± 0.5% |
| Dynamic response speed | 5% 200uS |
| Output short circuit protection | Yes, but please do not short circuit for a long time |
| Input reverse polarity protection | Yes, there is reverse polarity protection diode |
| Connection mode | Welding |
| Input mode | Welding |
| Output mode | US |
