| Product Name: | Step Down Lithium Charger Board | Input Voltage Range: | 6-38VDC |
|---|---|---|---|
| Output Voltage Range: | 1.25-36VDC Adjustable | Output Current: | 0-5A |
| Output Power: | 75W | Size: | 61.7*26.2*15mm(L*W*H*) |
| Weight: | 20g | OEM: | OEM Services Provided |
| High Light: | 38VDC Led Power Converter Module,75W Led Power Converter Module,5A Step Down Lithium Charger Board |
||

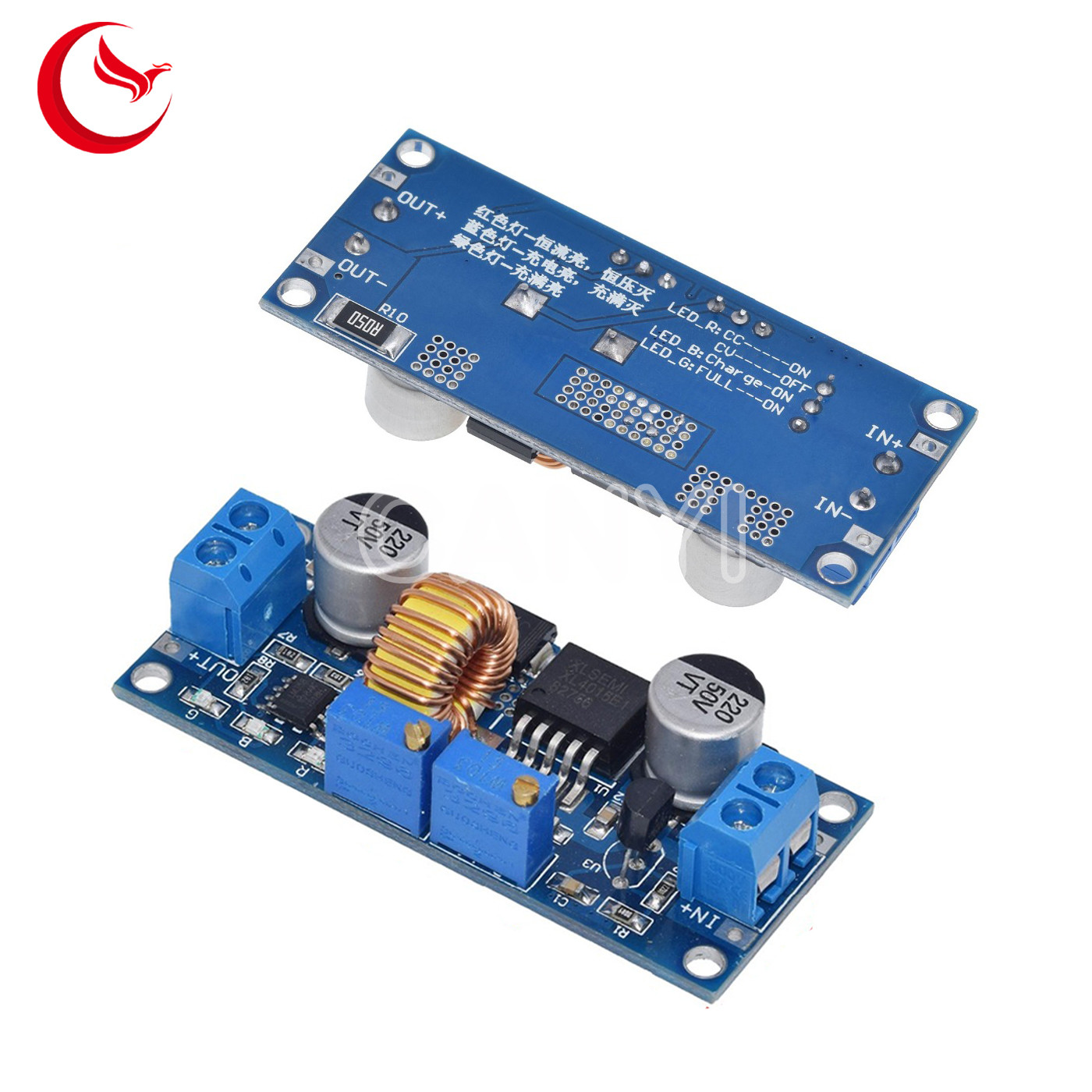

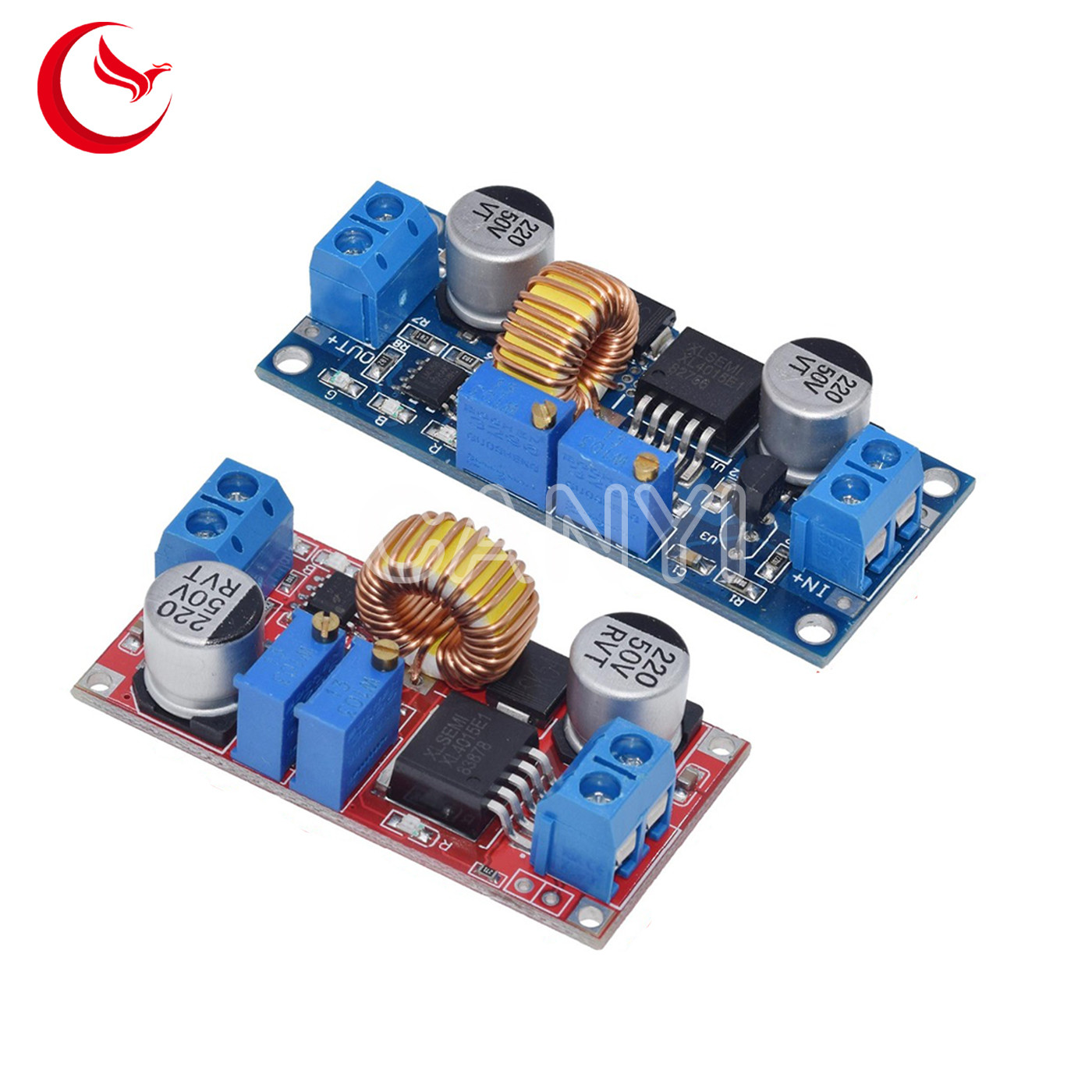

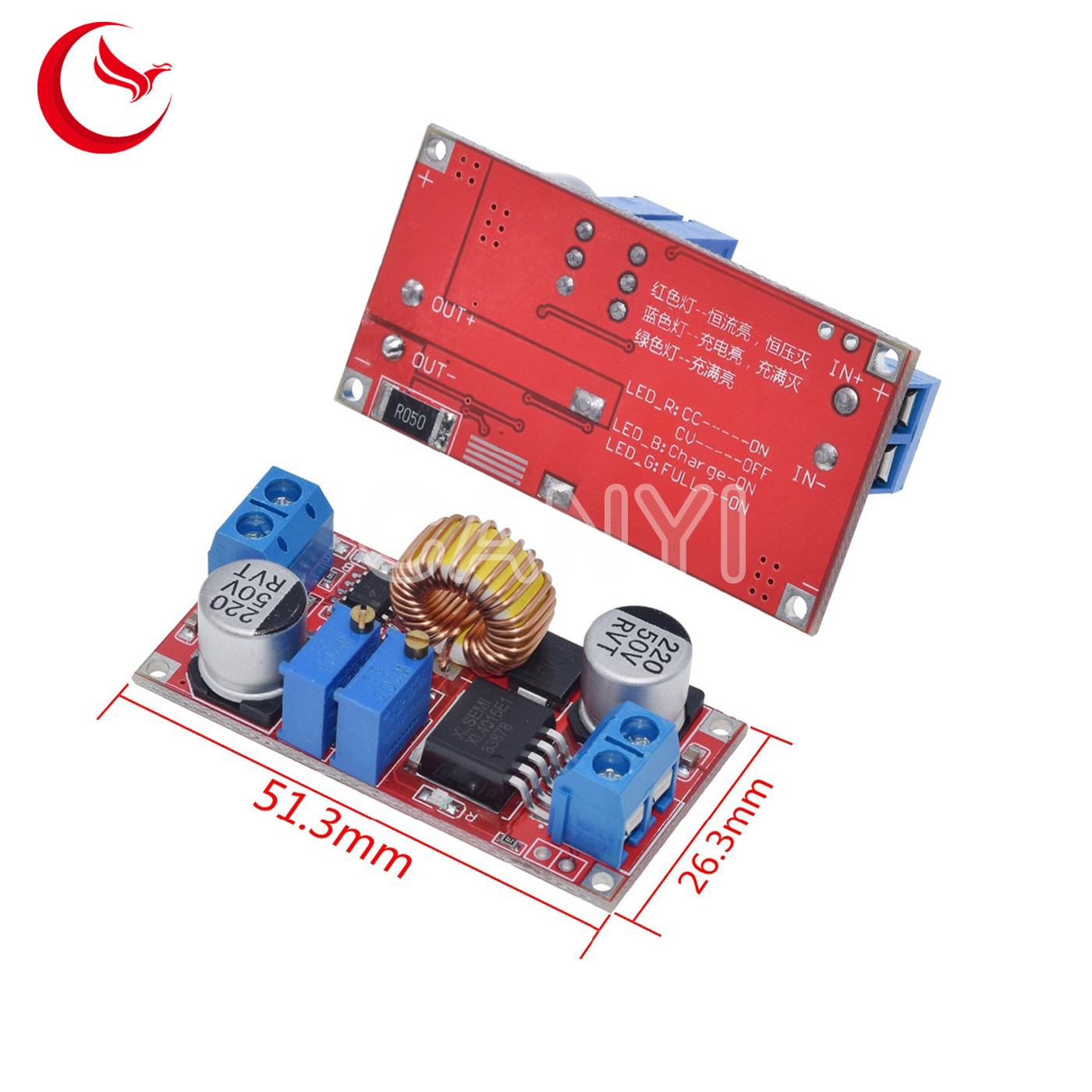

5A Lithium Battery Step down Lithium Charger Board Led Power Converter XL4015 Module
Description:
1. High power, high efficiency, 5A, low ripple;
2. Three major functions:
(1) as a general step-down module with overcurrent protection capability;
(2) as a variety of voltage lithium batteries, nickel-cadmium nickel-metal hydride
Batteries Charger used for solar panels, wind turbines and other occasions;
(3) as a high power LED constant current drive module used;
3. With constant voltage and constant current mode, the indicator light indicates which
mode;
4. As a lithium battery charger to use, you can set the float voltage and charge current
Small, indicating whether the indicator is being charged or flld;
5. With current limiting protection function, even if the output short circuit will not burn the
module.
| Input voltage range | 6-38VDC(Note:input voltage not exceeding 38V) |
| Output voltage range | 1.25-36VDC adjustable |
| Output current | 0-5A |
| Output power | 75W(High efficiency up to 96%) |
| Thermal shutdown function | yes |
| Current limit function | yes |
| Output short protection | yes |
| Input reverse polarity | None(if required,high current diode in series with the input) |

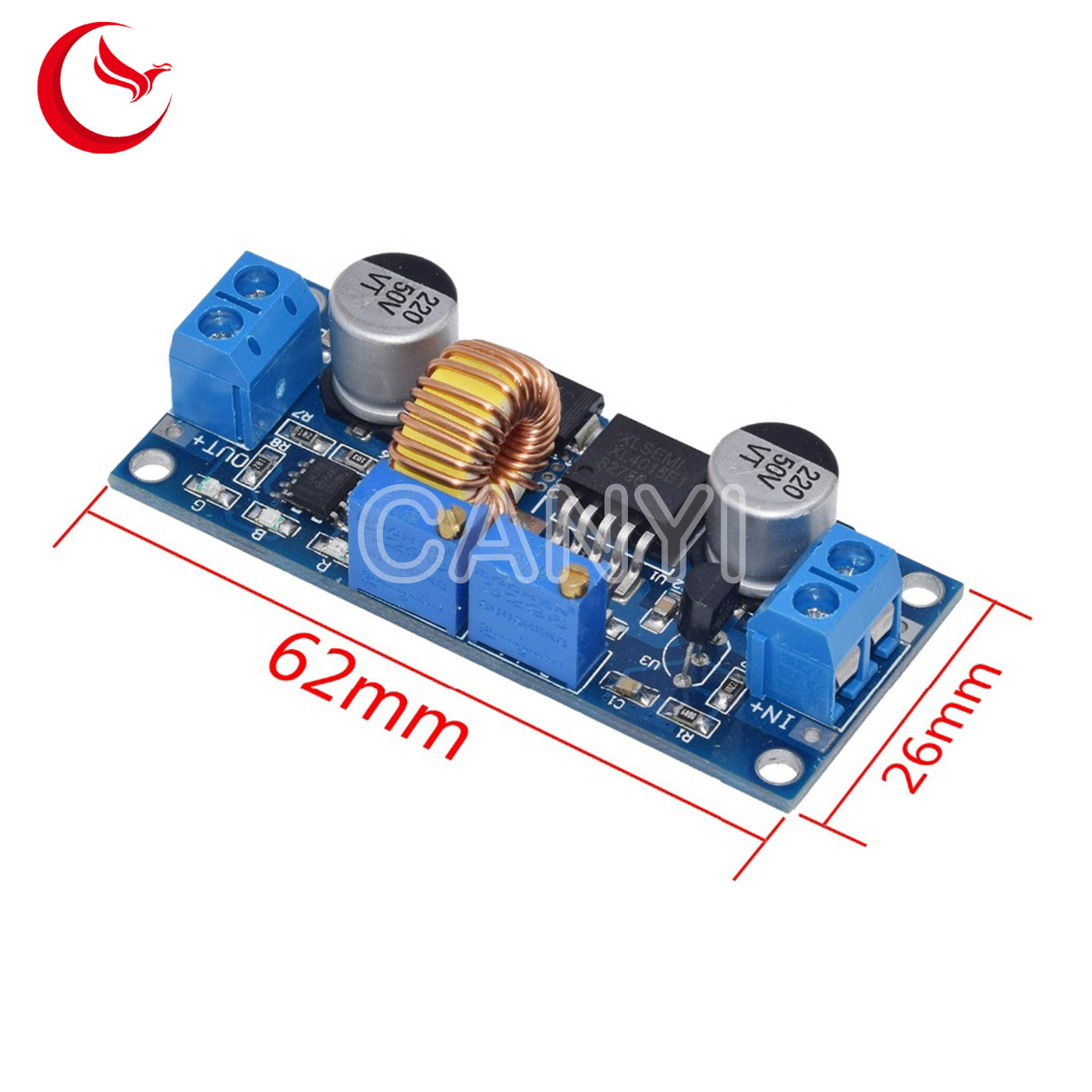

| Size | 61.7*26.2*15mm(L*W*H*) |
| Weight | 20g |
| Package | Electrostatic bag packaging |
Application:
First:As an overcurrent protection step-down module
(1) adjust the "voltage potentiometer" so that the output voltage reaches the value you want.
(2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the current potentiometer" SO that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connected to the load.
Second:Use as a battery charger
(1)Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C,
ie 2200mA)
(2)Under no-load conditions, adjust the "Voltage potentiometer" so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can
be adjusted to 4.2V)
(3)use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the "current potentiometer" so that the output current reaches a predetermined Charging
current value.
(4) Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
(5)connected to the battery charge.
Third:As LED constant current driver
(1)adjust the "voltage potentiometer" so that the output voltage reaches the value you want.
(2)use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the"current potentiometer"so that the. out
