| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | MX1919 |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Model Number: | XL7015 | Application: | Computer |
|---|---|---|---|
| Operating Temperature: | Operating Temperature : -40℃±85℃ | ||
| High Light: | XL7015 Step Down Module,80V Step Down Module,7005A LM2596 Board |
||
Brand Name : Canyi
Origin : CN(Origin)
Condition : New
Type : Voltage Regulator
Model Number : XL7015
Application : Computer
Operating Temperature : -40℃±85℃
Supply Voltage : 5V-80V
Package : DIY KIT
is customized : Yes
For Arduino STM : electronic module

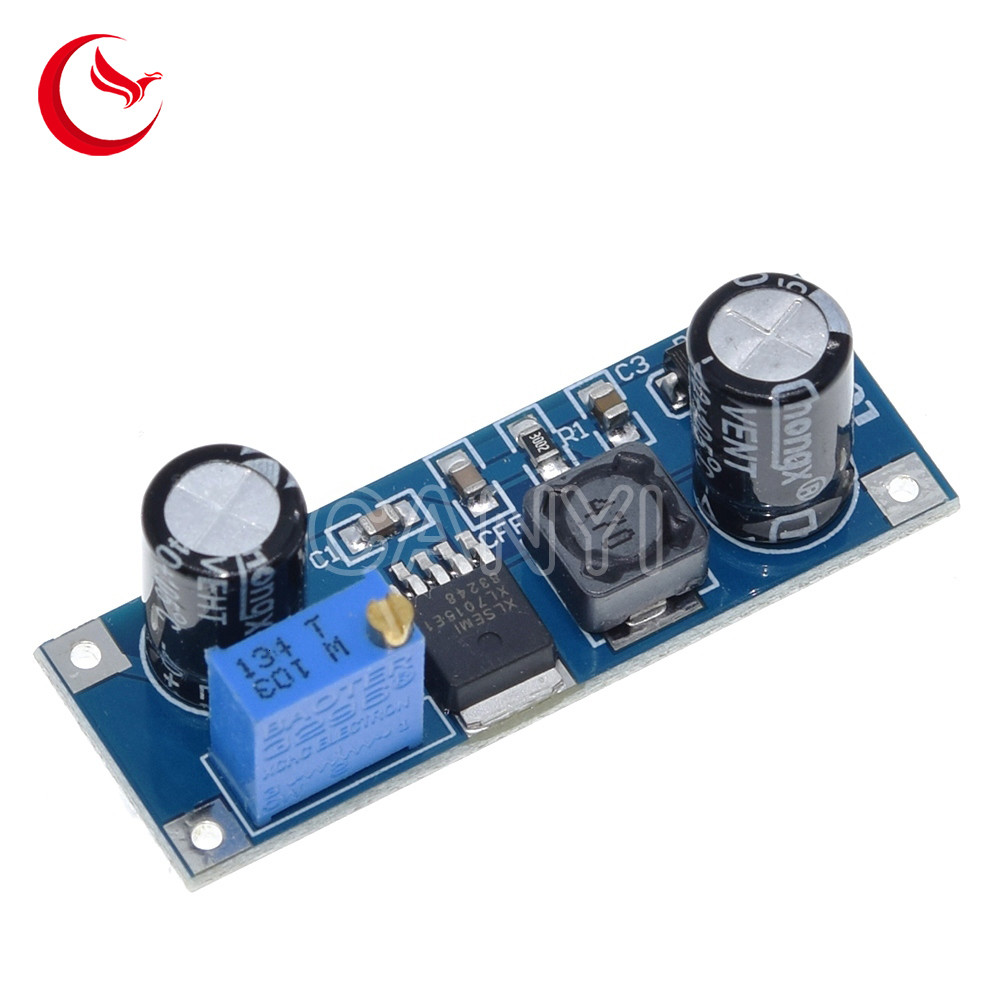

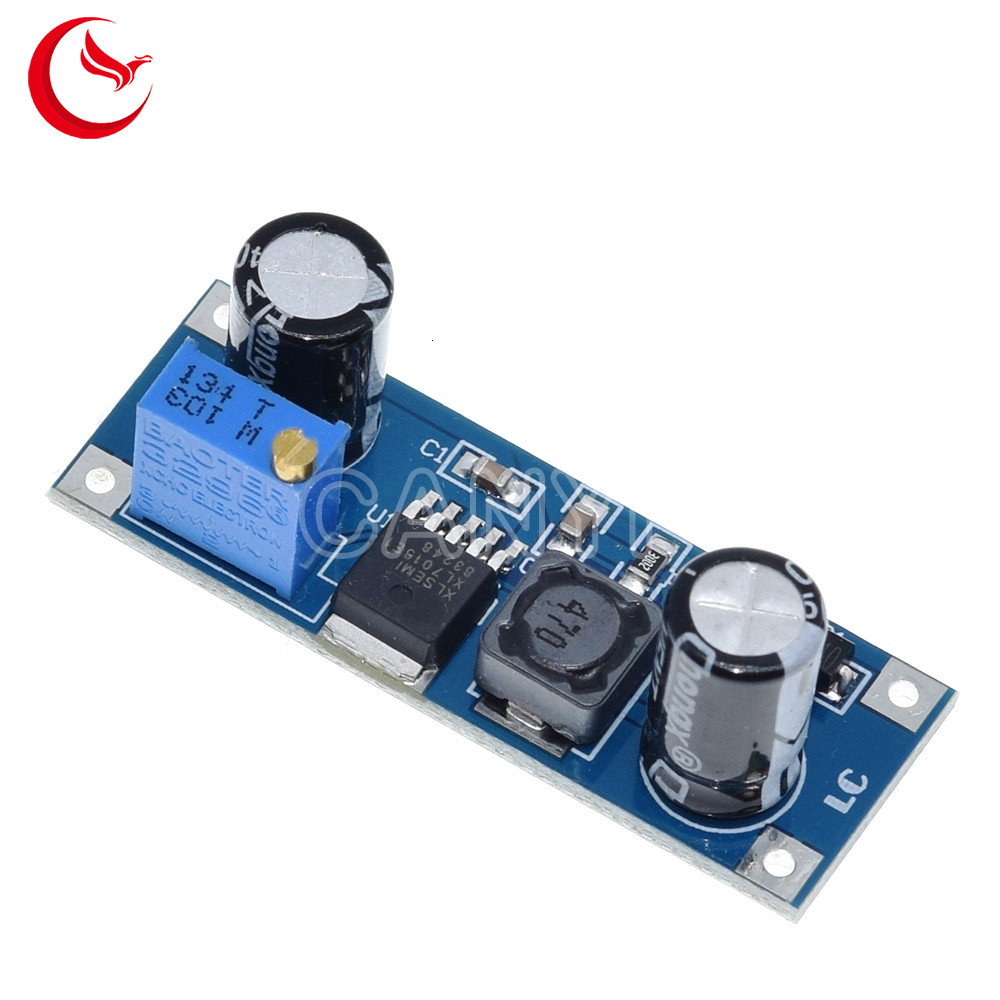

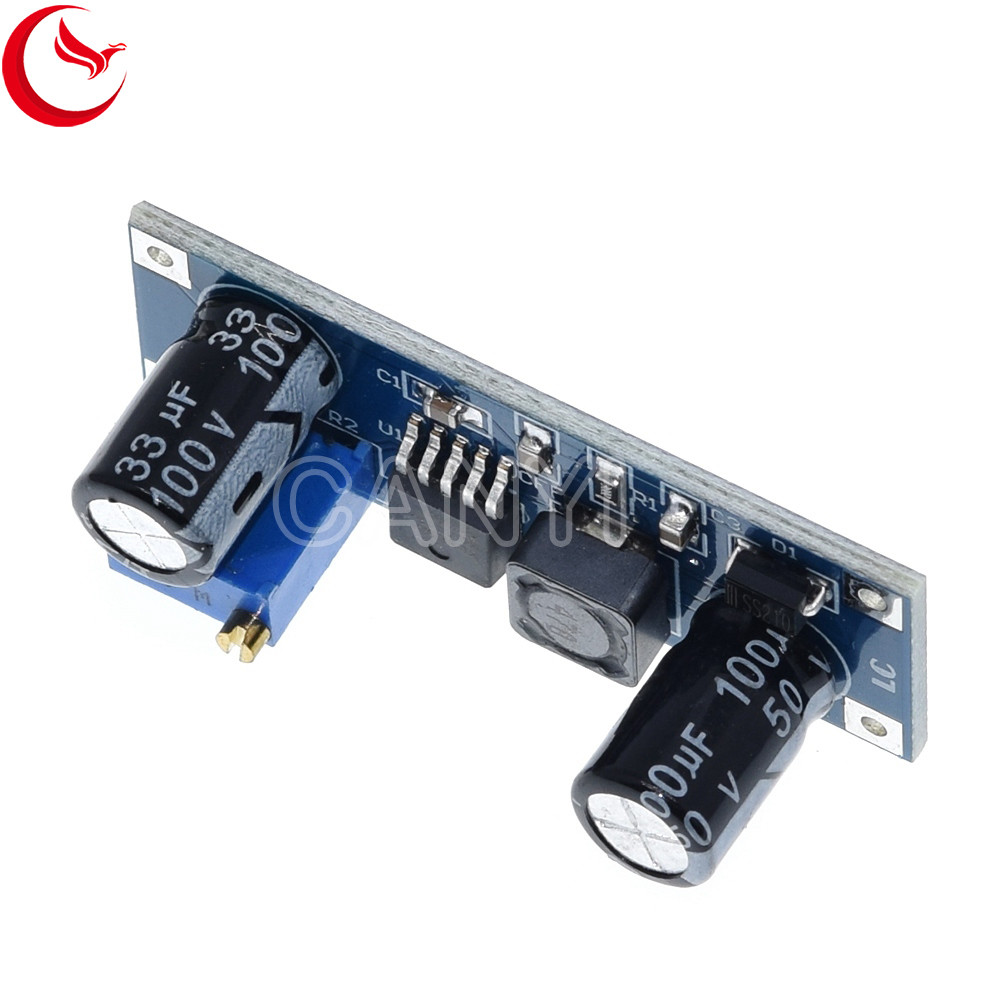

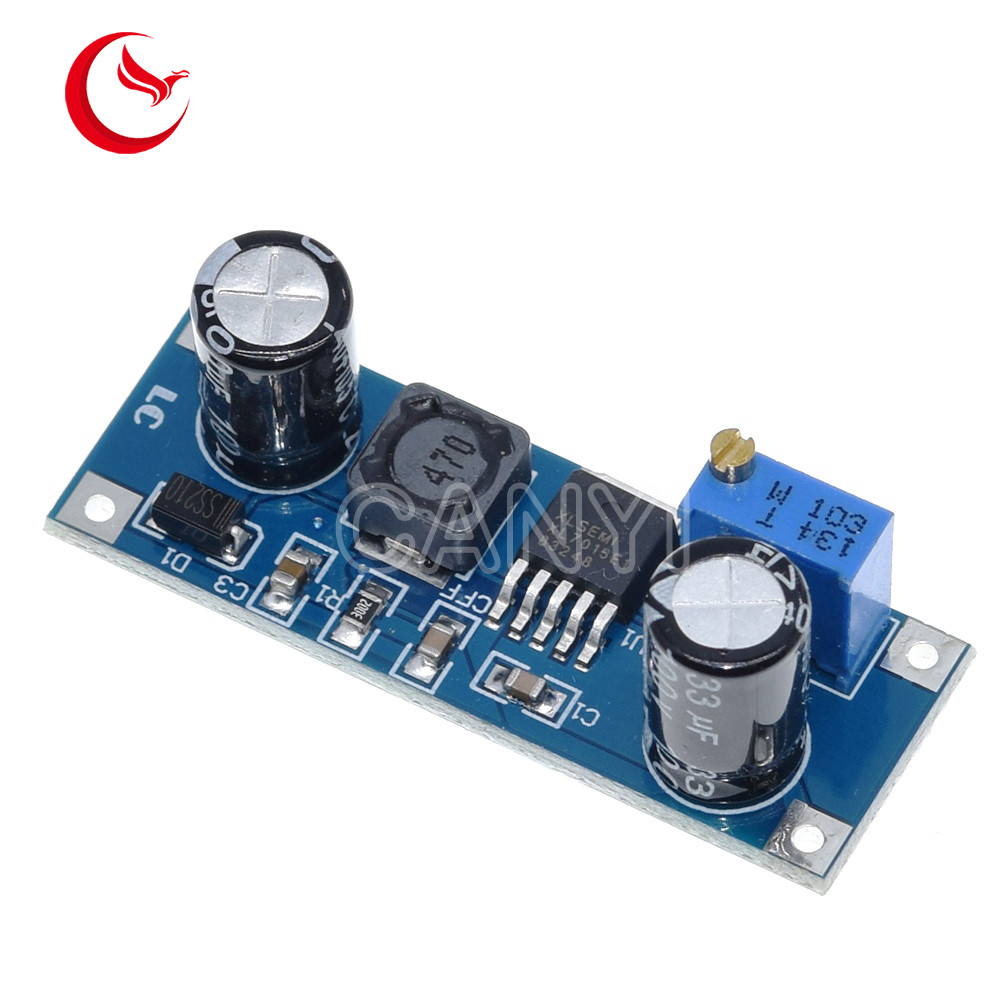

XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.
1. 5V to 80V wide input voltage range;
2. The output voltage is adjustable from 5V to 20V;
3. The minimum pressure drop 1V;
4. The maximum switching current of 0.8A;
5. Recommended output power less than 7W;
6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;
7. The excellent linearity and load regulation;
Hardware introduction and notes

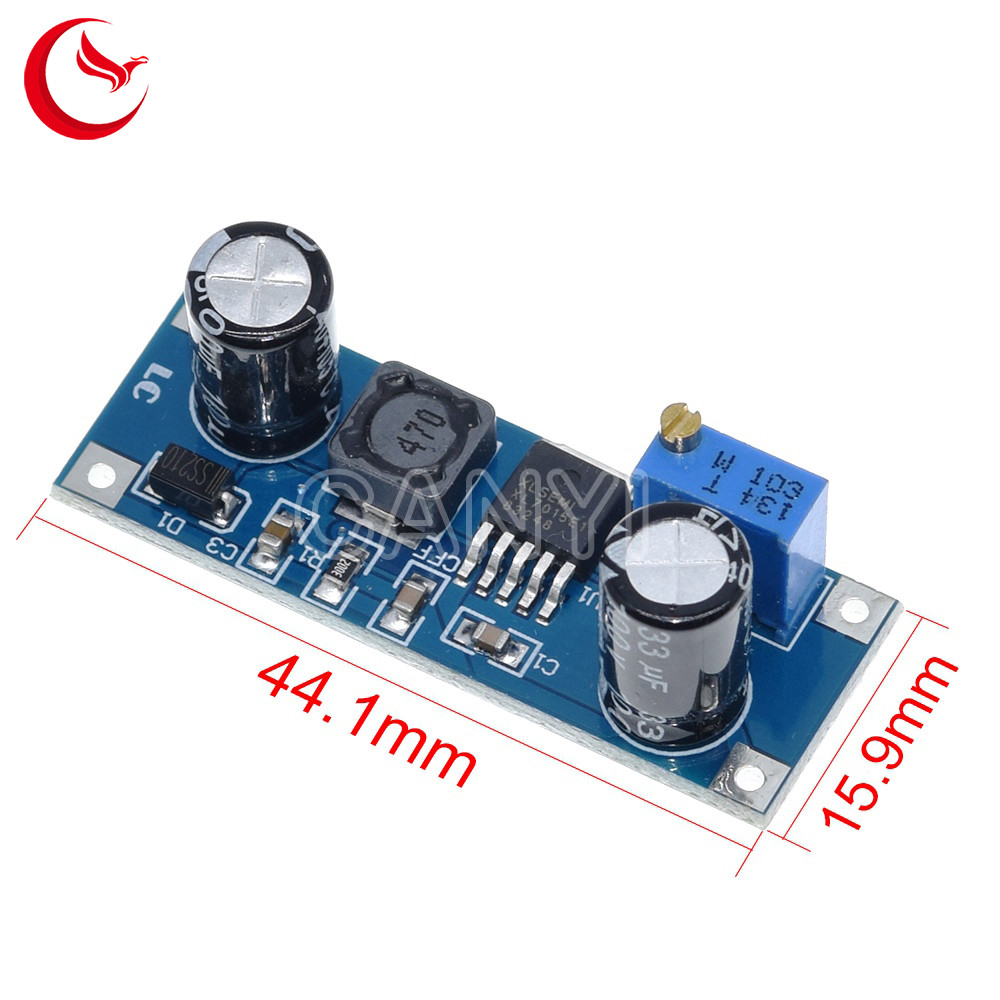

Board size: 16mm * 44mm;
Wiring
1. VIN: input voltage (5V-80V);
2. GND: the input voltage ground terminal;
3. VOUT: Output voltage terminal (5V-20V);
4. GND: output voltage of the ground terminal;
