| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-3S20A |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board | Suitable Range: | For Nominal Voltage 3.6V 3.7V Lithium Battery |
|---|---|---|---|
| Material: | Metal | Charging Voltage: | 12.6-13v |
| Maximum Output Current: | 20A | Overcharge Protection Voltage: | 12.6V, 4.2V Per Cell |
| Over-discharge Protection Voltage: | 9V Per Cell | Overcurrent Protection: | 60A |
| OEM: | OEM Services Provided | ||
| High Light: | 12.6V PCB BMS Protection Board,18650 Charger BMS Protection Board,3S 20A Battery PCB Board |
||

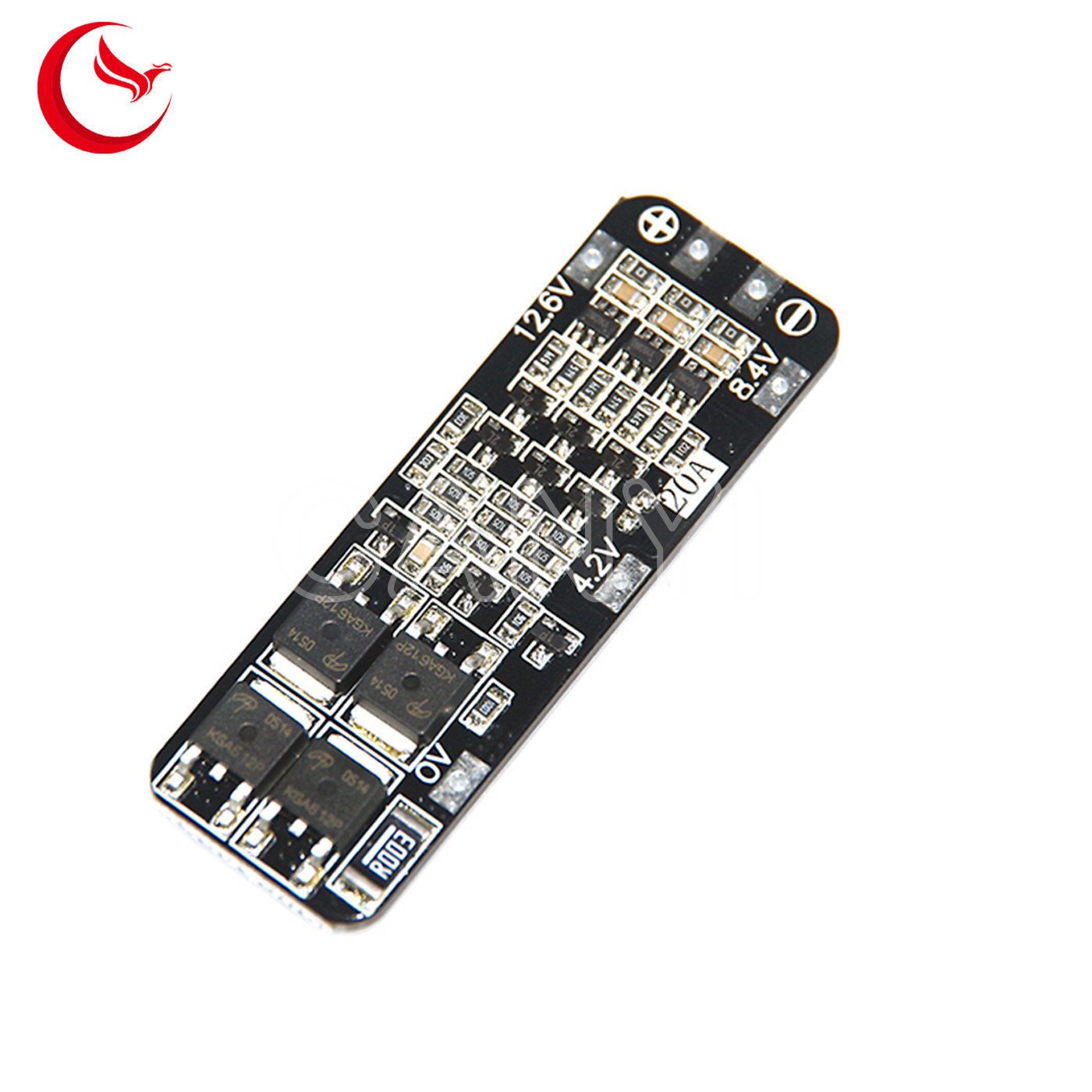

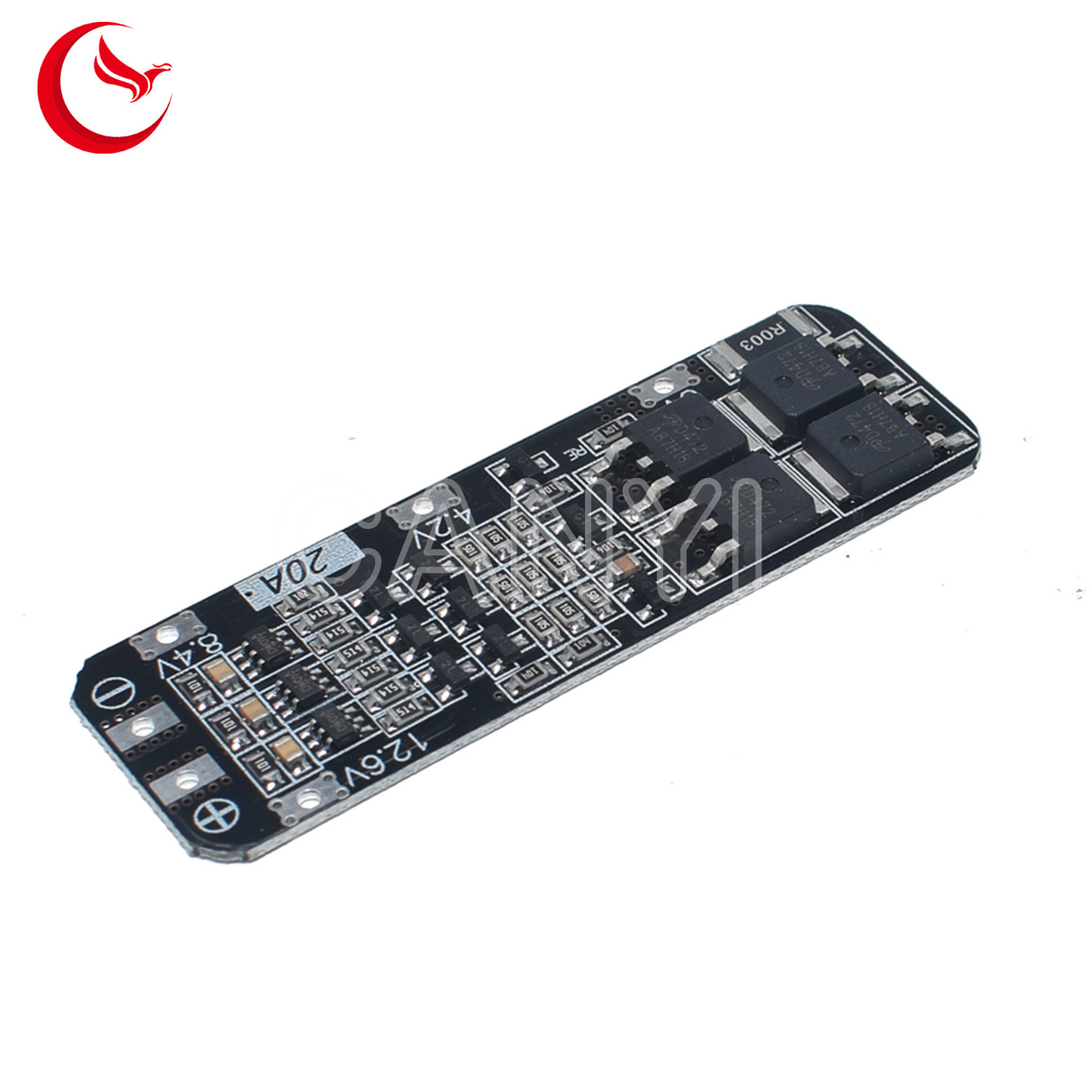

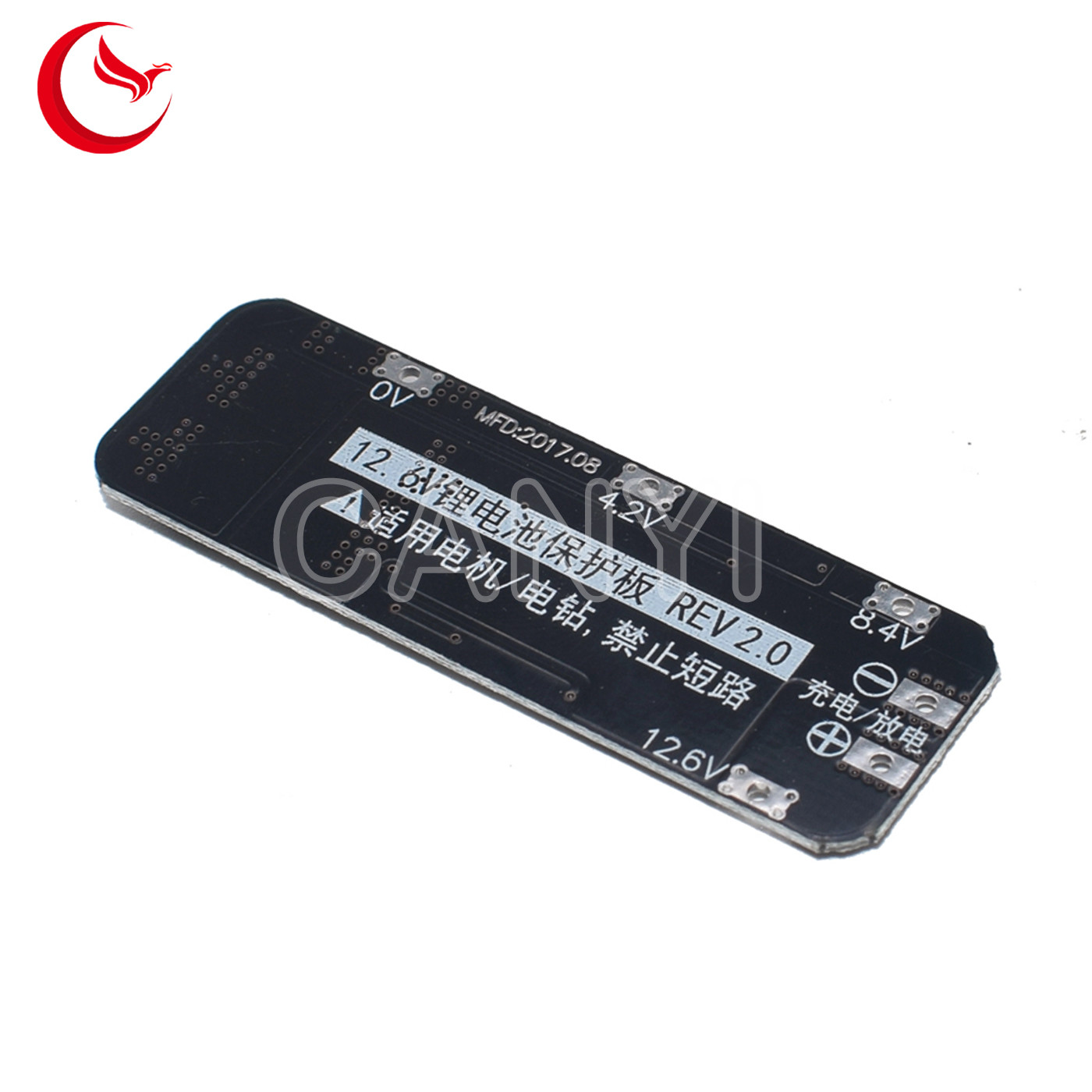

3S 20A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V using in electric brick
Features:
Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V-13.0V
Maximum output current: 20A(If the heat dissipation environment is not good, please reduce the load current to use)
Continuous charging current (upper limit): 10A
| Items | Minimum | Typical | Maximum | Unit | Remarks |
| Self consuming current | 12 | 18 | 24 | uA | |
| Overcharge protec tion voltage | 4.2 | 4.25 | 4.3 | V | |
| Overcharge recovery voltage | 4.1 | 4.16 | 4.2 | V | |
| Over-discharge protection voltage | 2.35 | 2.5 | 2.7 | V | |
| Over-discharge recovery voltage | 2.9 | 3.2 | 3.3 | V | |
| Conductive internal resistance | 10 | 12 | 14 | mΩ | |
| Overcurrent protection current | 37 | 40 | 43 | A | Standard version |
| Overcurrent protection current | 56 | 60 | 64 | A | Enhanced version |
| Overcurrent delay time | 50 | 100 | 150 | mS | |
| Continuous working current | 0 | 20 | 20 | A | |
| Continuous output power | 0 | 252 | 252 | W | |
| Ambient temperature | -40 | 25 | 85 |
℃
|
Precautions of circuit:

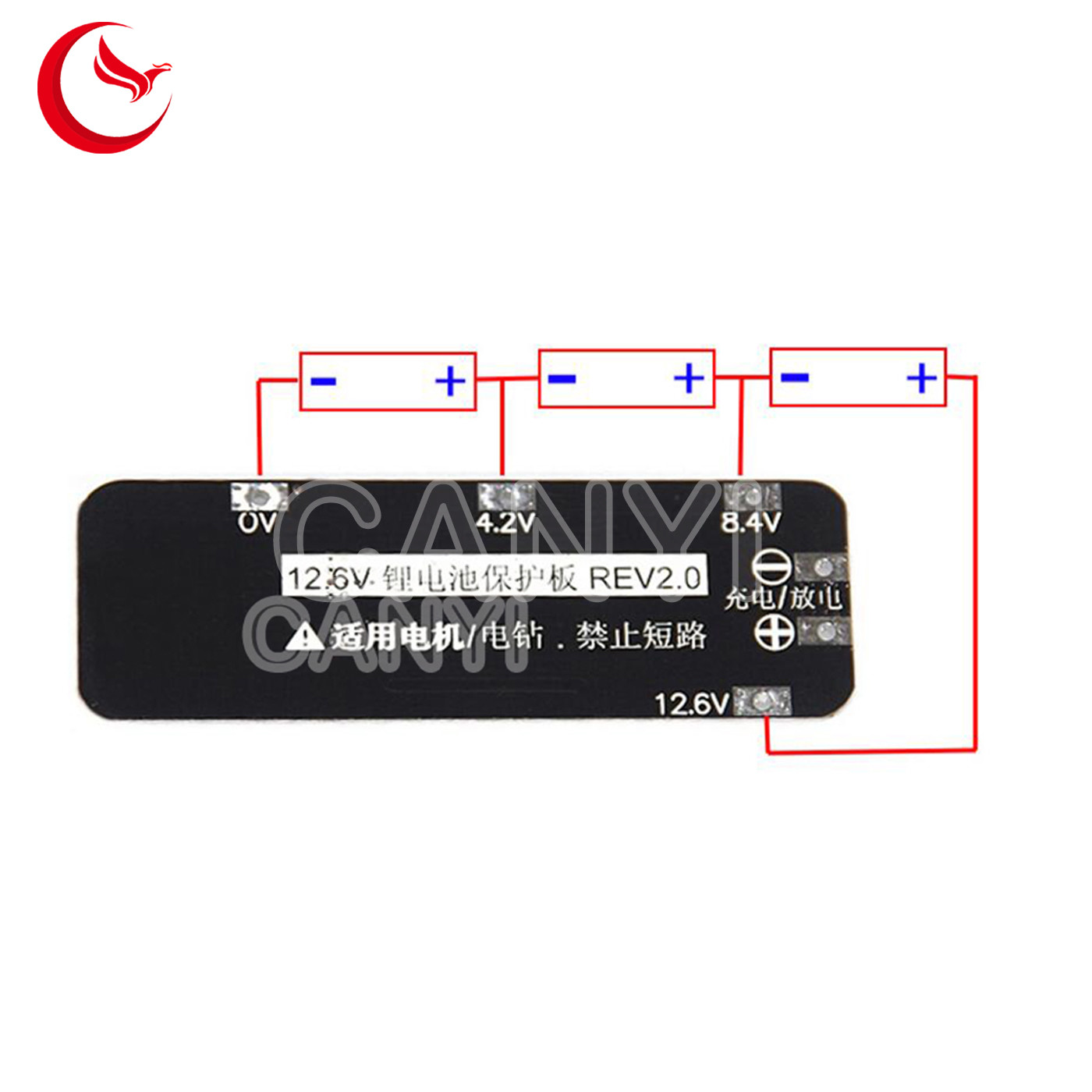

1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
3.The connection line between the battery pack and the protection board should be as short as possible and the core should be as thick as possible.
4.When welding the battery for the first time, do not connect any load or any equipment to the output end.
5.For loads with brushed motors, a capacitor (10uF-1000uF) must be connected in parallel to the positive and negative terminals of the motor to prevent the reverse peak voltage generated by the motor from interfering with the protection board or puncturing the MOS.
Attention of battery:
1.Do not mix the good battery and poor battery to use.
2.Successfully start the drill requires 3 15C-20C power batteries, or 6 10C-15C power batteries (The ordinary 18650 cannot start the electric drill).If it happens that the battery is too small or the power of the electric drill is too large and it cannot start,pls contact us to know how to deal with it.
3.The internal resistance of 3 battery capacity are closer will be better.
4.When connecting 3 sets of batteries in series, please ensure that the voltage of each set of batteries is the same, the difference does not exceed 0.05V, and the internal resistance is as consistent as possible. The equalization function is only an auxiliary function. If they are not the same, please charge each battery separately and use it in series
5.During the discharge test, the battery with the faster voltage drop is a bad battery. It will affect the overall life of the series battery pack
All products use brand new electronic materials. The most important part of the lithium battery protection board is the MOS tube. The refurbished MOS tube is very easy to bring safety hazards. Don't be greedy and bring unnecessary trouble to yourself.Please buyers know the professional knowledge of this module before buying.
