| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-P15W |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | Stereo Bluetooth 5.0 Power Amplifier Board | Supply Voltage: | DC8~24V |
|---|---|---|---|
| Bluetooth Version: | 5.0 | Connect Distance: | 15 Meters(visible) |
| Output Mode: | Stereo | Work Temperature: | -40℃~85℃ |
| Work Humidity: | 0%~95%RH | OEM: | OEM Services Provided |
| High Light: | 30W Power Amplifier Board,Bluetooth 5.0 Power Amplifier Board |
||

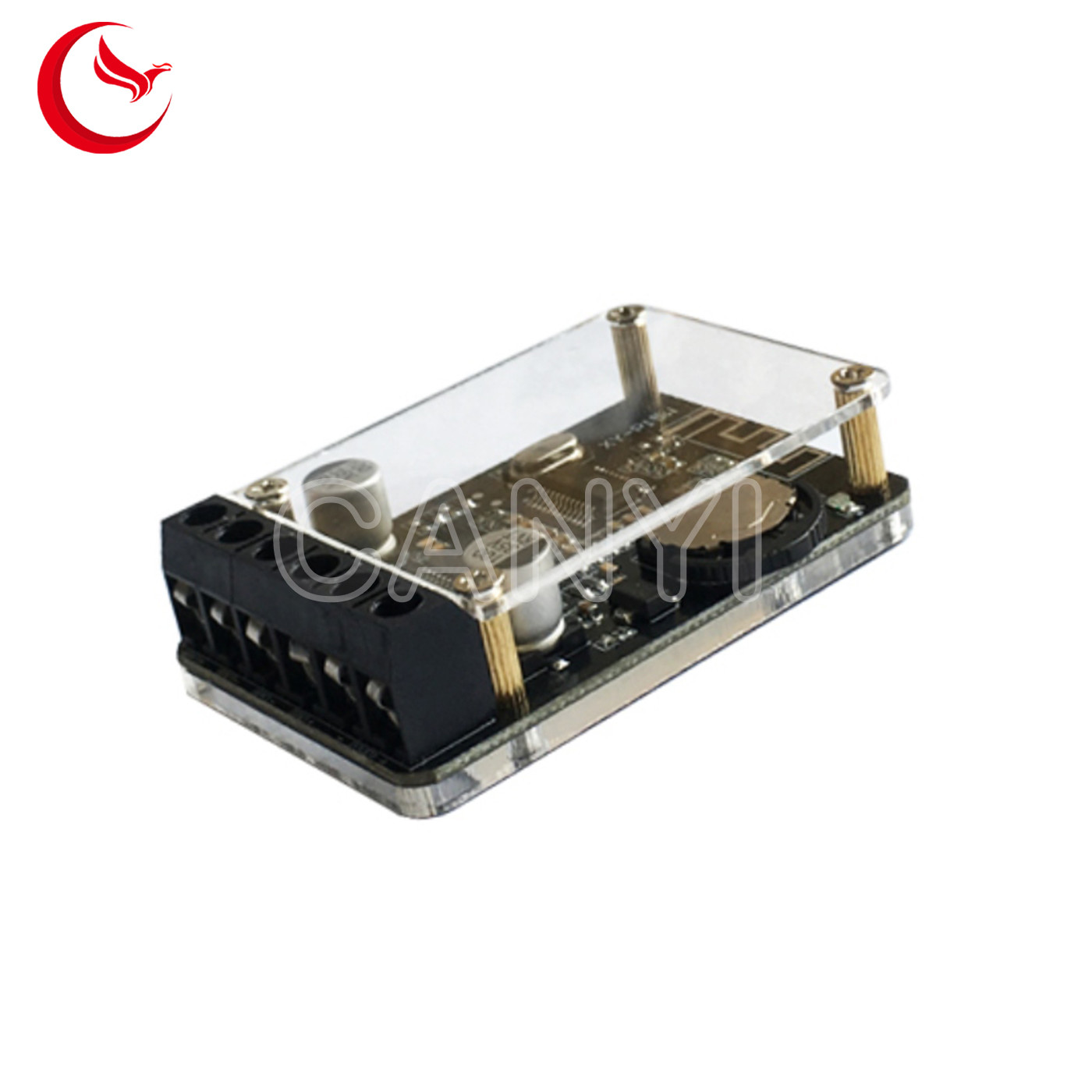

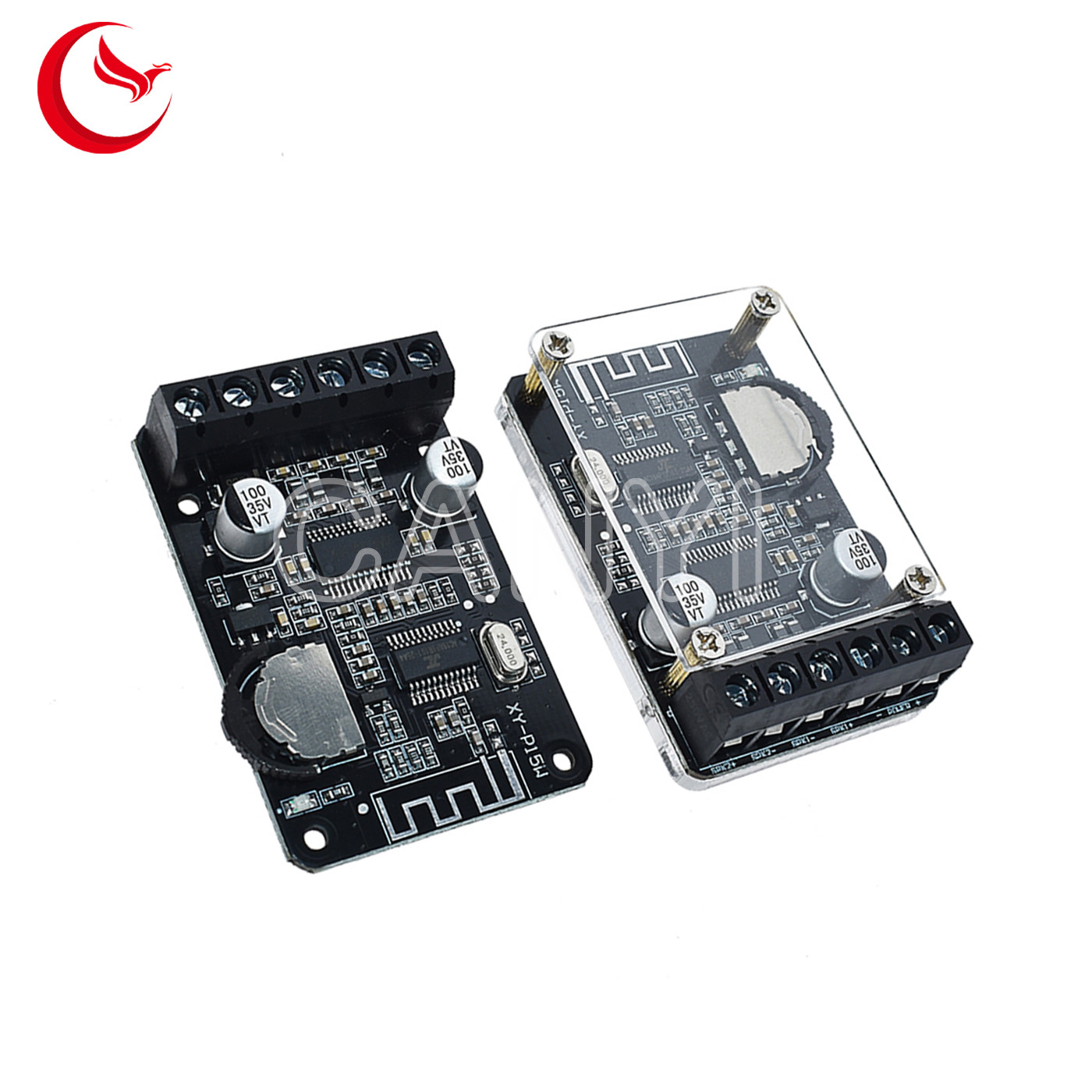

10W 15W 30W 5.0 Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Amplifier Module AMP Sound Board

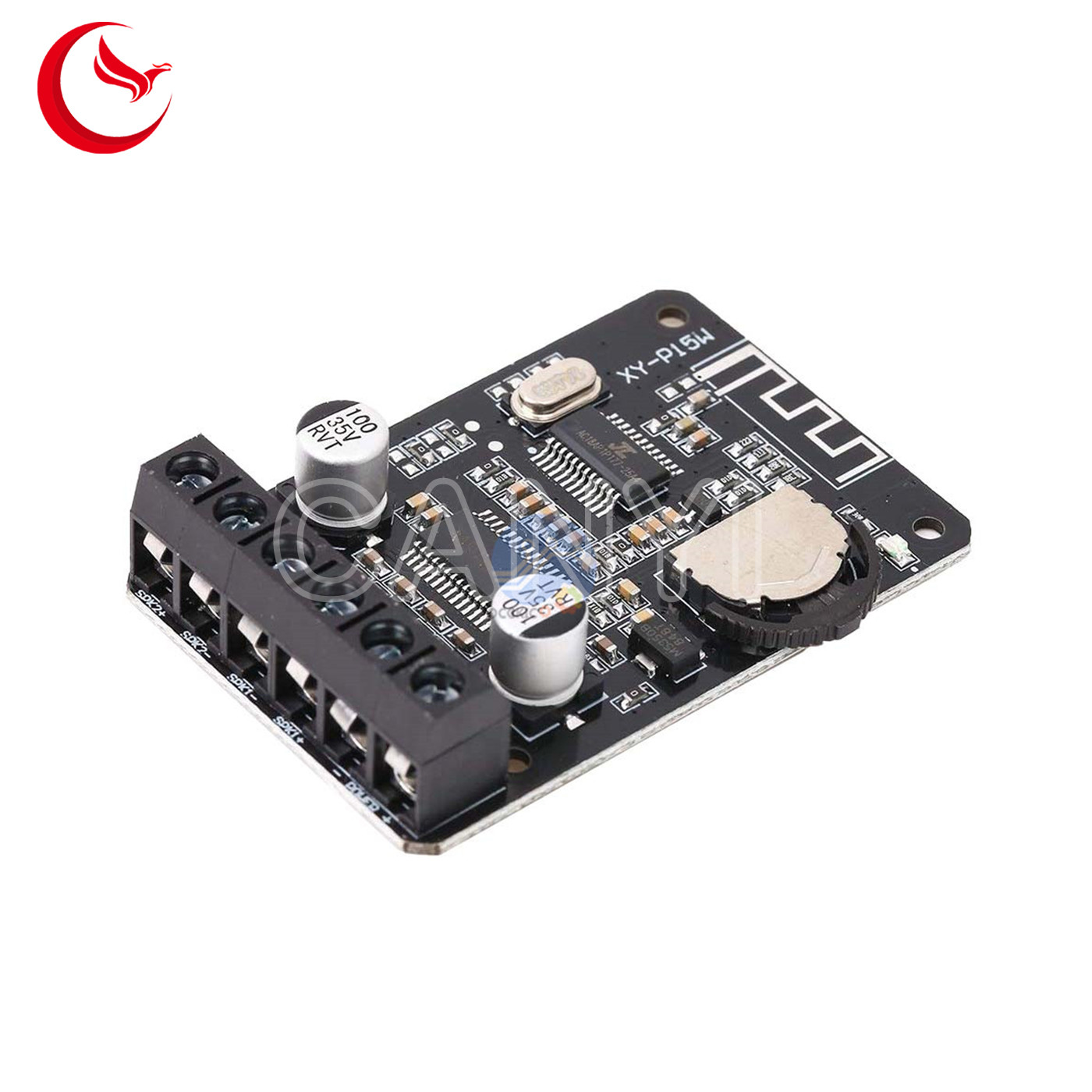

CY-P15W a high-power stereo Bluetooth audio module.Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY wireless Bluetooth speakers and transponders.
Supply voltage range:8~24V DC
Adapted horn resistor:4~16 Ω
Adapting Horn Power:30W~150W
Feature:
Description:
Application:
| Supply voltage | DC: 8~24V |
| Bluetooth version | 5.0 |
| Connect distance | 15 meters(visible) |
| Output mode | stereo |
| Output power(at 1KHz) | 16W*2 @12V 4Ω |
| 10W*2 @12V 8Ω | |
| 15W*2 @16V 8Ω | |
| 20W*2 @20V 8Ω | |
| 30W*2 @24V 8Ω(Need add extra heat sink) | |
| Speaker selected(30W~150W) | 4Ω(8~12V supply) |
| 8Ω(8~24V supply) | |
| 16Ω(8~24V supply) | |
| Work Temperature | -40℃~85℃ |
| Work Humidity | 0%~95%RH |
Note:
Use steps:
1.Choose the right speaker and connect as shown in wiring diagram.
2.Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
3.Turn ON Bluetooth in phone.
4.Select Bluetooth device ‘XY-P15W' in your Bluetooth device listing.
5.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
6.Module will playing music after select music in phone.LED indicator will keep slowly blinking.
7.Module will speak prompt voice if disconnected.
Weight:11.5g
Weight:20g
